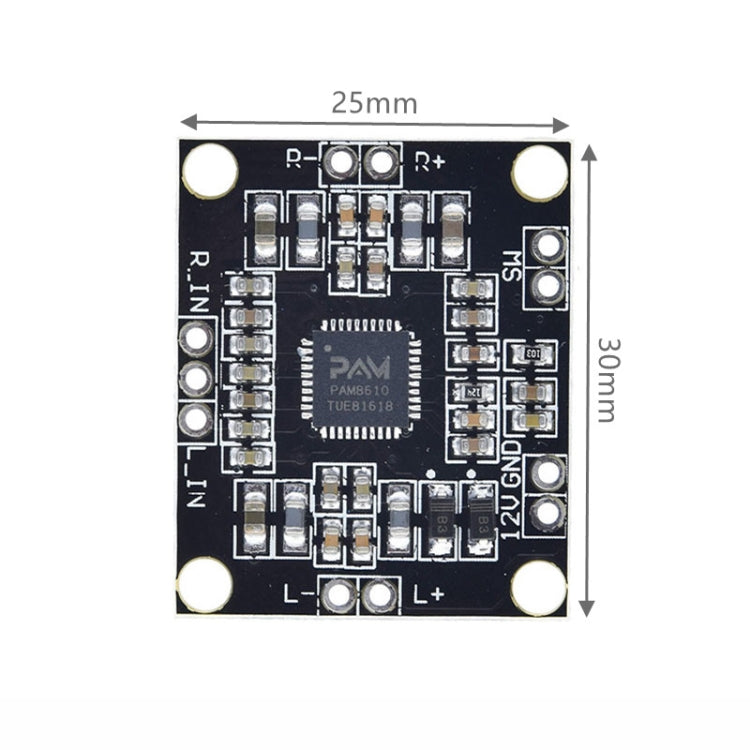

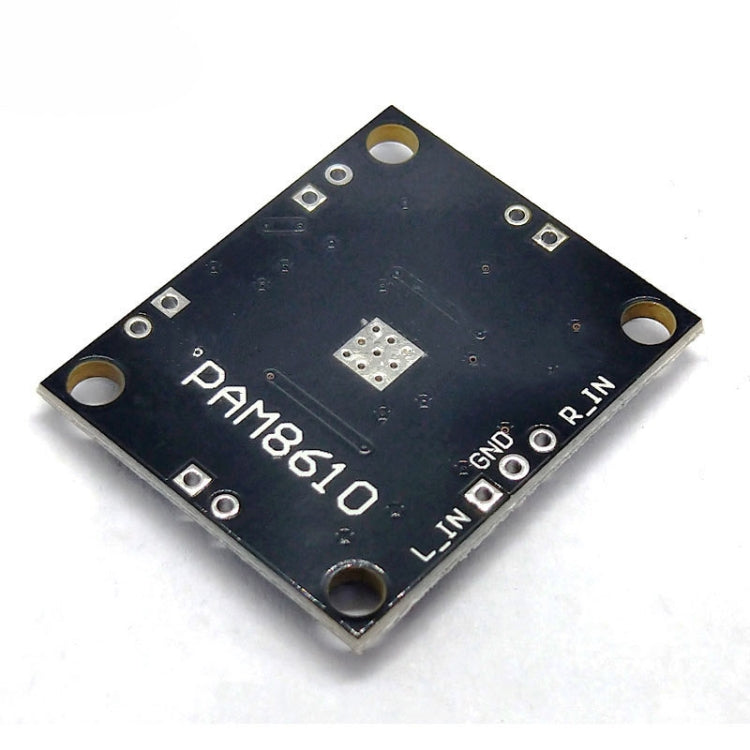

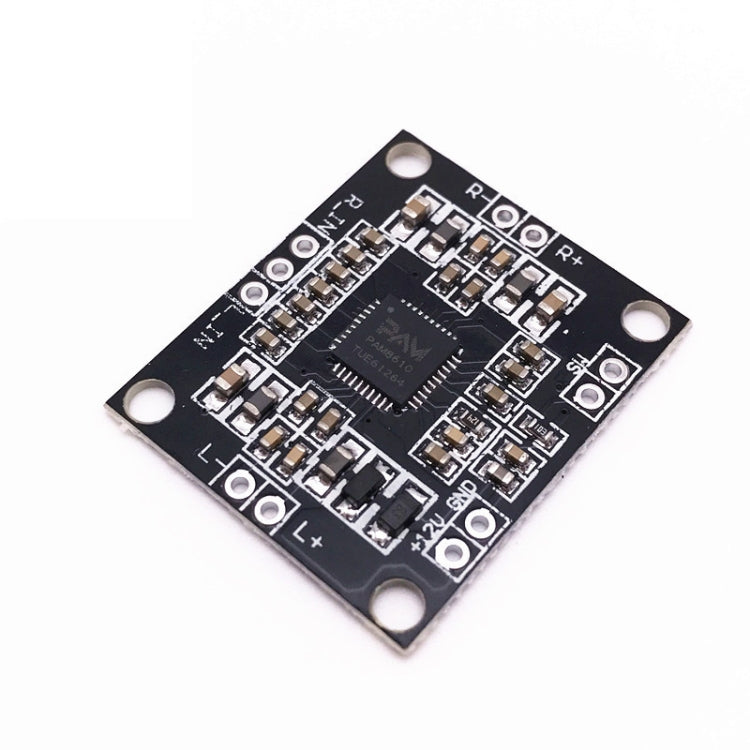

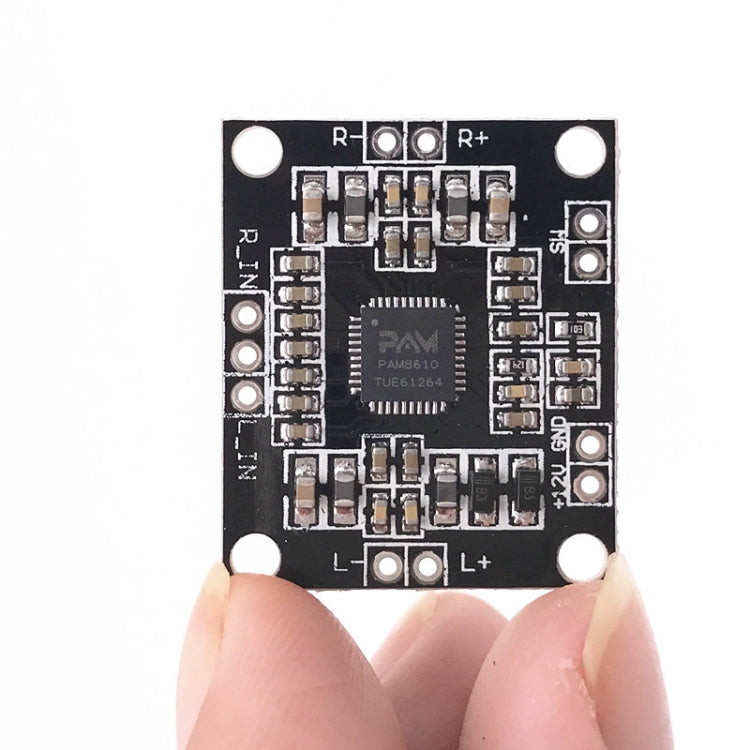

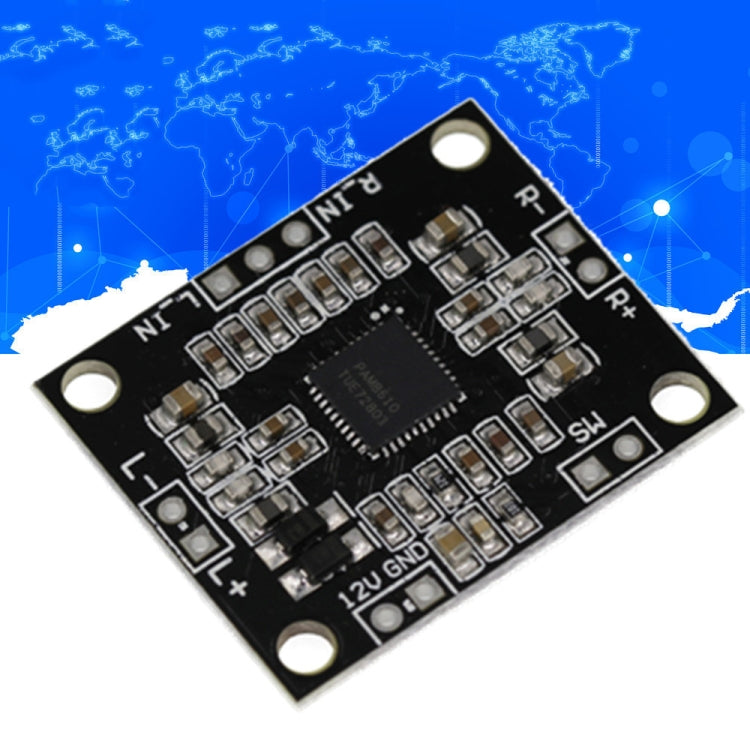

XH-M181 PAM8610 Digital Power Amplifier Board 2x15W Two-channel Amplifier Board

Name: XH-M181 PAM8610 Digital Power Amplifier Board 2x15W Two-channel Amplifier Board
Brand: PMC Jewellery
SKU: TBD06040083
Price: 199.00 ZAR
Availability: InStock

R 199.00

Sale Sold out

FREE DELIVERY on all orders.

⚫🖤🟡Add to Cart Now for Black Friday Discounts! Hurry, stock is almost gone! 🟡🖤⚫

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. The power amplifier board is designed with the official standard circuit, and the chip selection uses the original Class D power amplifier chip.
2. The power amplifier has super power, and can output 10W+10W power under the condition of 12V power supply. The chip does not need a heat sink, and it also has overheating, overcurrent and other protection functions
3. This board has a switch function, short the SW to turn off the power amplifier.
4. Specification model: XH-M181
5. Chip model: PAM8610
6. Working mode: Class D (PWM modulation type)
7. Power supply range: DC 6V~15V (self-protection)
8. Recommended voltage: DC 12V2A
9. Frequency response: 20HZ-15KHZ
10. Channel type: dual channel
11. Static current: 20mA (DC 12V)
12. Signal-to-noise ratio: 90%
13. Recommended speaker: 10~100W
14. Input impedance: 15K
15. Output impedance: 4~8Ω
16. Output power: 10W x 2 (8Ω) 15W x 2 (4Ω)
17. Harmonic distortion: less than 0.1%
