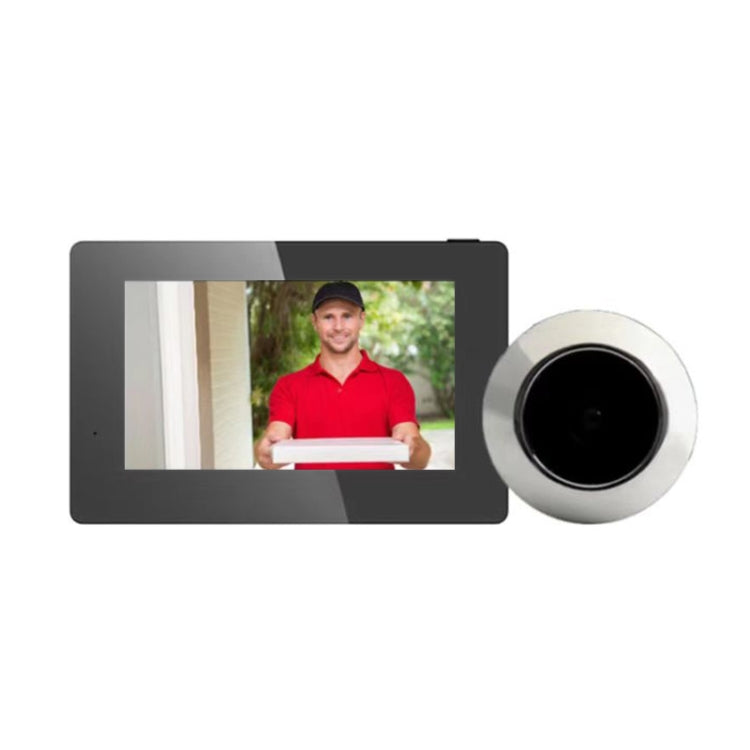

X1 4.3 inch Screen IP55 Waterproof Digital Door Viewer

Name: X1 4.3 inch Screen IP55 Waterproof Digital Door Viewer
Brand: PMC Jewellery
SKU: WD0086
Price: 1159.00 ZAR
Availability: InStock

R 1,159.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Feature
1. The product is installed at the position of the door eye hole on the door, replacing the optical door eye door mirror. Clearly display the image outside the door on the screen of the host computer inside the door, allowing the owner to see the visitors outside the door clearly at home, and can take pictures manually.
2. The outdoor unit replaces the traditional optical cats eye, no need to stick to the eyes, the viewing range is large, and it is not limited by height, which is suitable for the elderly and children.
3. The outdoor unit is made of zinc alloy (anti-theft, anti-prying, anti-peeping).
4. The outdoor unit has a built-in hidden camera, which is similar in appearance to the traditional peephole (CMOS 1 million pixels, maximum support 1280x720P, display/record outdoor images)
5. 4.3-inch TFT LCD screen for door machine, screen resolution: 480x272.
6. The host adopts single-button operation, which is easy to operate and has practical functions.
7. Two power supply methods for the machine:
a. 1800mah lithium battery power supply
b. 5V1A-5V2A Micro USB, supply power to the machine.
8. The machine adopts an energy-saving and power-saving design. The indoor unit automatically turns off the screen in 15 seconds and enters the standby state. It can be used after about 180 days of standby (for details, please refer to the power-saving reminder card).
9. The machine is easy to use.
a. Install the machine on the door according to the instructions.
b. Power the machine (load battery or connect micro USB)
c. View the situation outside the door through the door unit

Specifications
1. Image sensor: 1/4 inch CMOS(1034)
2. Effective pixels: 1280(H)x720(V)
3. Minimum illumination: 0.5Lux/F2.0 color), 0.02Lux/F2.0 (B&W)
4. White balance: automatically track white balance
5. Gain control: automatic
6. Signal-to-noise ratio: greater than 50dB
7. Backlight compensation: open
8. Electronic shutter: 1/4-1/10,000s
9. Day and night mode: the filter color turns black
10. Focal length: 2.4mm
11. Horizontal viewing angle: 145 degrees
12. Number of apertures: F2.0
13. Automatic shutdown: 15 seconds
14. One-touch wake-up: In the tank
15. Main chip: SQ
16. Indoor unit size: 135mmx82mmx14mm
17. Outdoor unit size: 33mmx33mmx7mm(42mm)
18. Indoor unit material: ABS engineering plastics
19. Outdoor unit material: zinc alloy
20. LCD screen type: 4.3 inches
21. LCD screen resolution: 480x272
22. Maximum image size: 1280x720
23. Frame rate: 50HZ: 25 FRAMES(1280x720P)
24. Standby current: 100UA
25. Operating temperature and humidity: -30~65 degree Celsius (outdoor) / -10~50 degree Celsius (indoor) Humidity less than 90%
26. Degree of protection: IP55
27. Installation method: screw hanging board
28. Applicable doors: 40~110mm
29. Suitable for cat eye: 15~50mm
