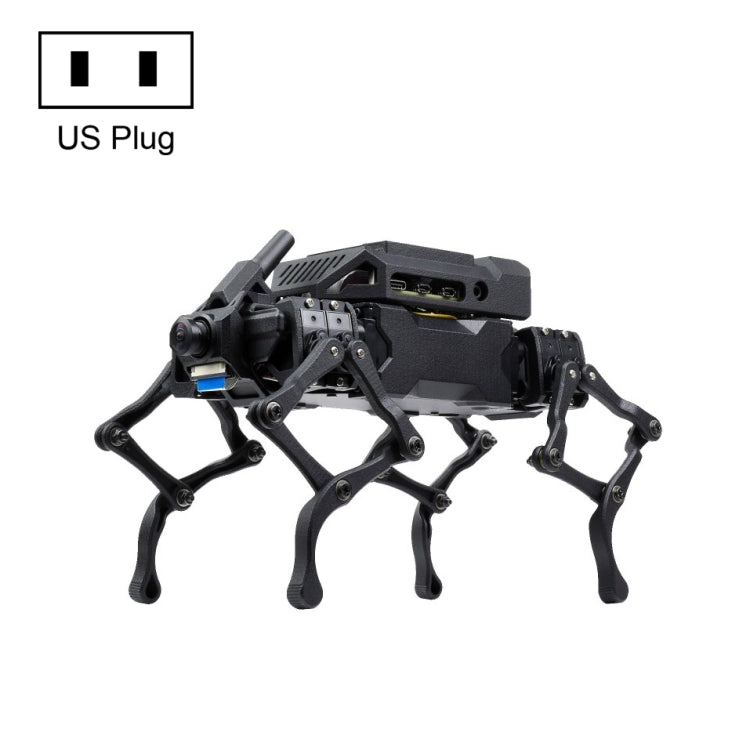

Waveshare WAVEGO 12-DOF Bionic Dog-Like Robot, Extension Pack(US Plug)
Waveshare WAVEGO 12-DOF Bionic Dog-Like Robot, Extension Pack(US Plug)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R1726.35/mo 3 months
- R872.94/mo 6 months
- R460.71/mo 12 months
- From R1726.35/month over 3 months, or as low as R460.71/month over 12. Total repayable over 12 months: R5528.52. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Excluded
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

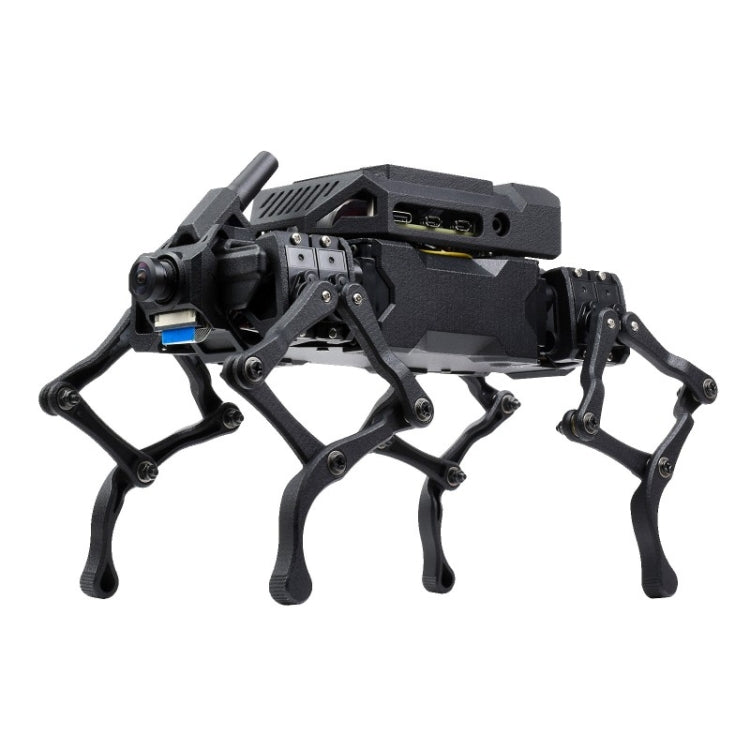

The WAVEGO is a 12-DOF bionic quadruped robot designed for flexible motion and high torque performance. It is suitable for educational purposes, robotics research, and hobbyist projects requiring advanced motion capabilities.
- Product Name: WAVEGO high-DOF bionic quadruped robot

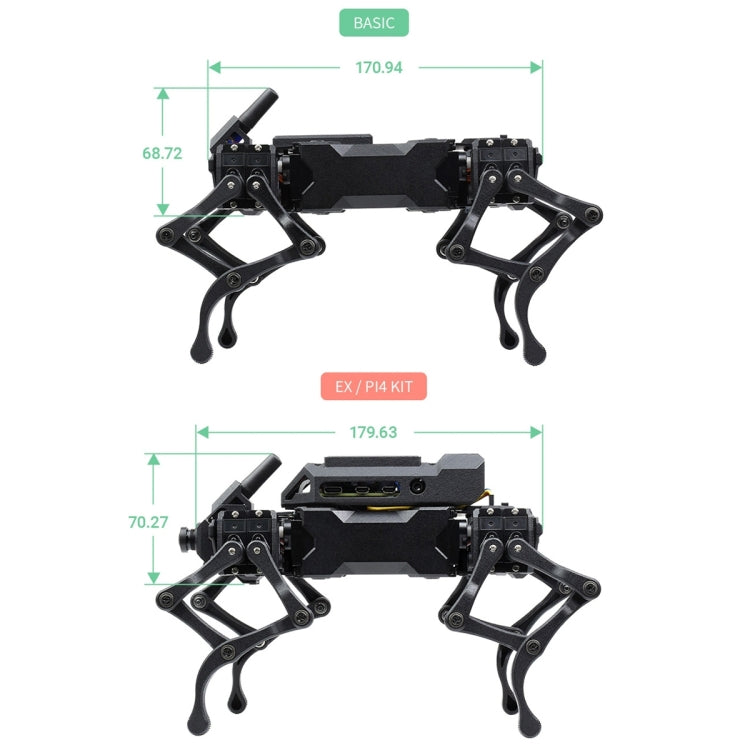

- Overall Dimensions: Stand up - 218mm (L) x 116mm (W) x 152mm (H); Lie down - 228mm (L) x 116mm (W) x 127mm (H)
- Overall Weight: 554g (with batteries)
- Degrees of Freedom (DOF): 12 total, 3 per leg
- Operating System: FreeRTOS + Raspberry Pi OS
- Available Gaits: Shake hands, stand up, crouch slowly, diagonal gait, jump, self-balancing
- Load Capacity: 200g
- Servo Specifications: Dimensions - 23.2mm x 12.1mm x 25.25mm; Weight - 13.0 +/- 1g; Operating Voltage - 6V; Idle Speed - 0.1sec/60 degrees (100RPM); Stalling Torque - 2.3kg.cm (31.99oz.in); Rated Load - 0.7kg.cm; Rated Current - 350mA; Control Method - Pulse width modulation; Control System Type - Digital comparator
- Visual Functionality: Web-based real-time video streaming on FreeRTOS; Real-time video streaming, facial recognition, color tracking, and moving object detection on Raspberry Pi OS
- Processor: ESP32 sub controller with Xtensa LX6 dual-core processor at 240MHz
- Memory: SRAM - 520KB + 8MB; Flash - 448KB + 4MB
- Wireless Standards: WiFi 802.11b/g/n; Bluetooth 4.2 (BR/EDR and BLE)
- External Ports: 2 x 5P multi-function extension ports for communication and power supply selection
- Power Supply: Requires 18650 Li-ion batteries (not included); Supply Voltage - 7-8.4V; Recharge Voltage - 8.4V; Protection features include overcharge, discharge, overcurrent, short circuit, reverse proof, and equalizing charge
- Output Voltage: Provides 5V output for other host controllers

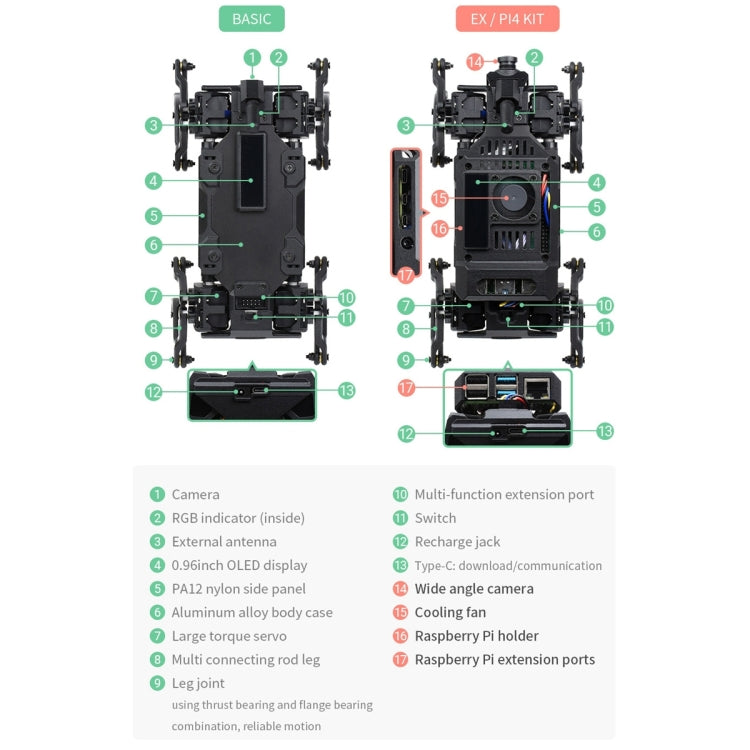

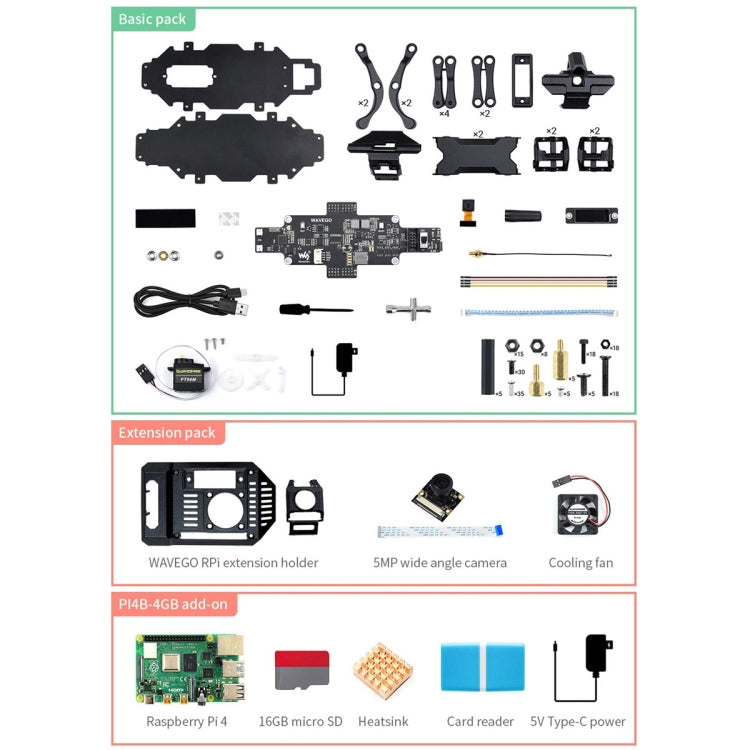

- Package Contents: WAVEGO body case, basic parts, semi-transparent acrylic panel, double-sided sticker, base board, 2MP camera, 2.4G antenna, 0.91-inch OLED display, micro thrust bearings, micro ball flange bearings, USB cable (~1m), plus screwdriver, cross wrench sleeve, IPEX 1 to SMA cable (~17cm), jumper wires (~20cm), 4 PIN PH2.0 cable, servo pack, 8.4V 2A battery charger, screws and standoffs
