Description
The Waveshare SIM8262E-M2/SIM8202G-M2 5G HAT is a hardware accessory designed for Raspberry Pi systems. It enables high-speed 5G communication and supports various positioning systems for enhanced location accuracy.
- Based on Qualcomm platform

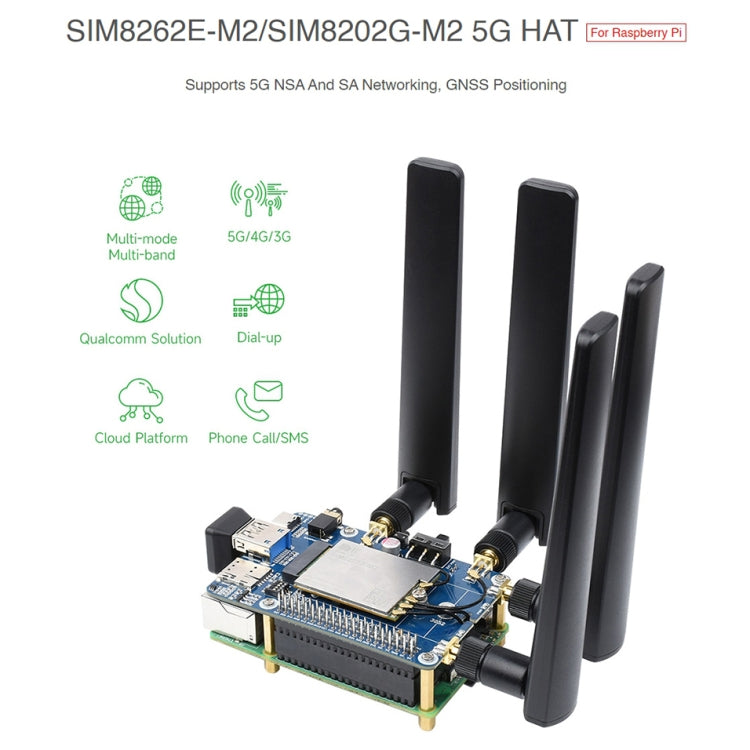

- Supports 5G NSA and SA networking
- Multi-mode and multi-band support

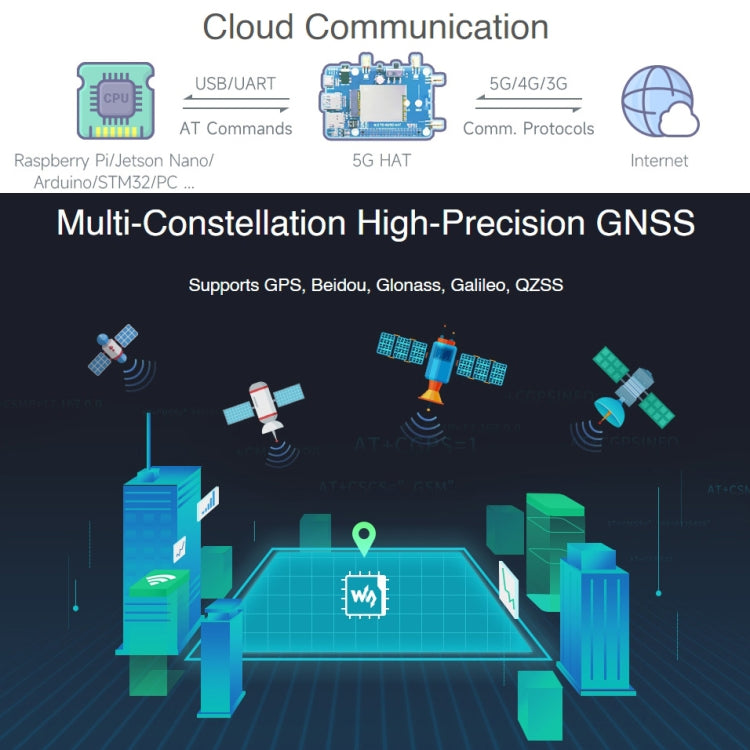

- Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, QZSS

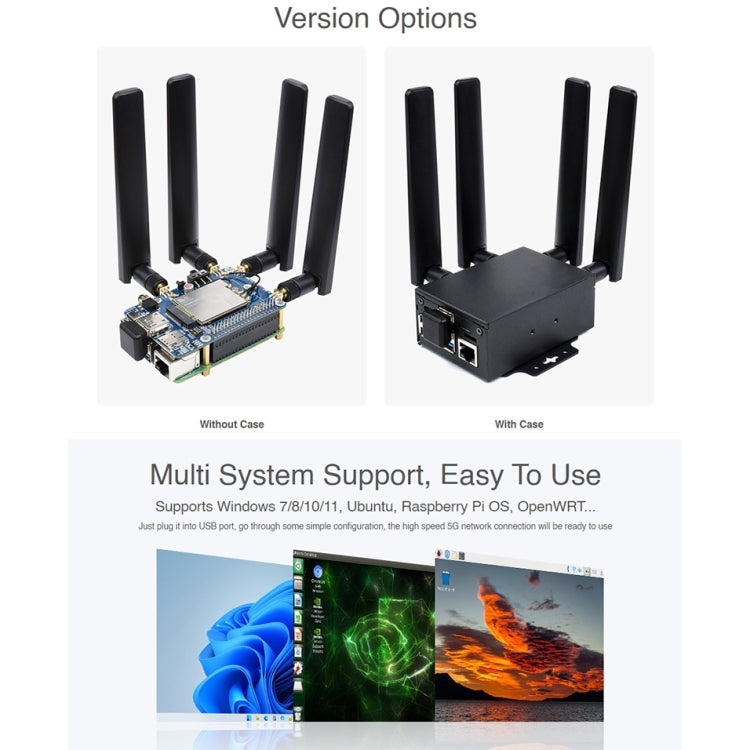

- Operating system support: Windows, Linux, Android

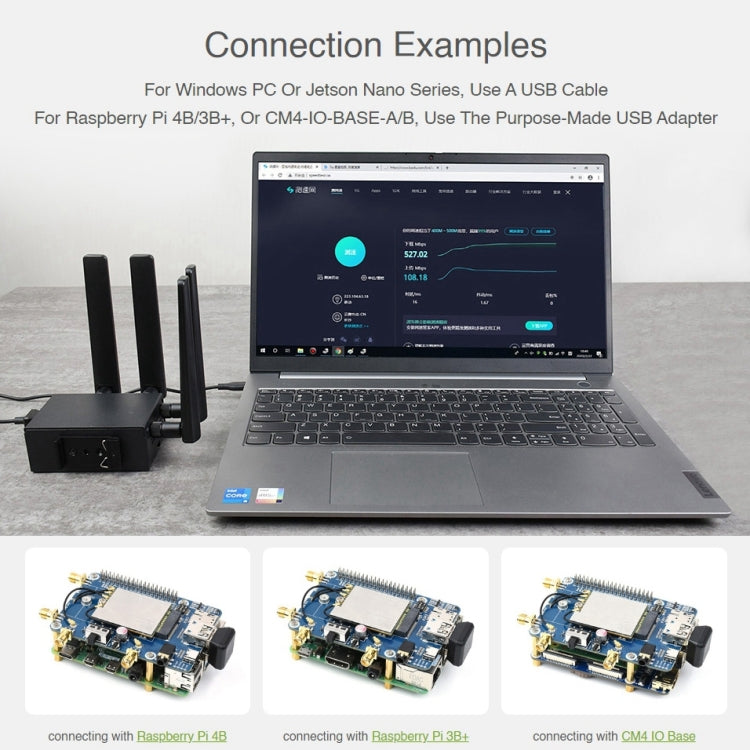

- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano
- Standard M.2 B KEY slot for compatibility with different 5G modules: SIM8202X-M2, SIM8200EA-M2, SIM8262X-M2 series
- Onboard UART, PWR, and RST control pin
- Built-in voltage level translator, enabled via DIP switch

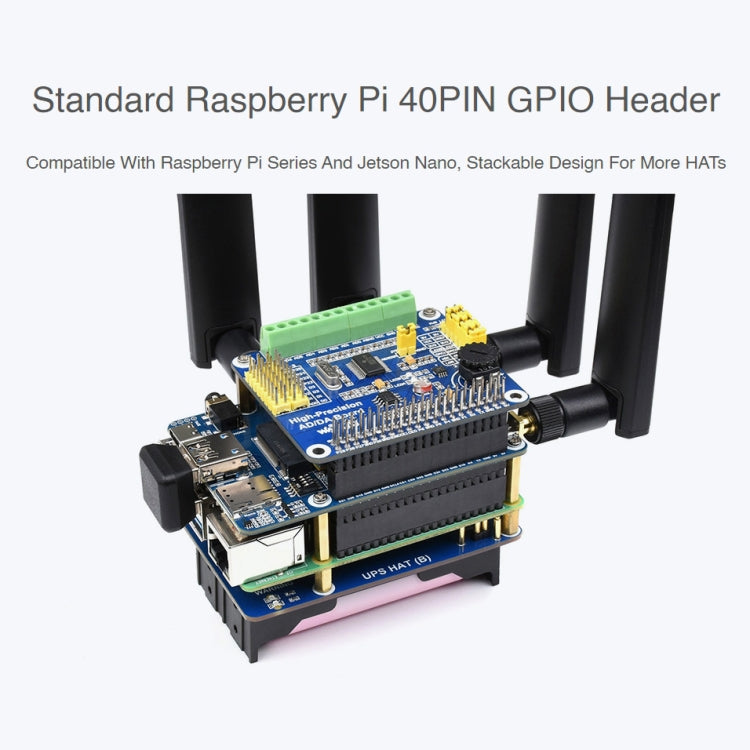

- Compatible with hosts like Raspberry Pi or Arduino
- Onboard USB-C connector for connecting standalone power supply
- Onboard power supply on/off switch
- Reset button and LED indicator for monitoring operating status
- 4x SMA to IPEX antenna connectors with pre-soldered SMA terminals

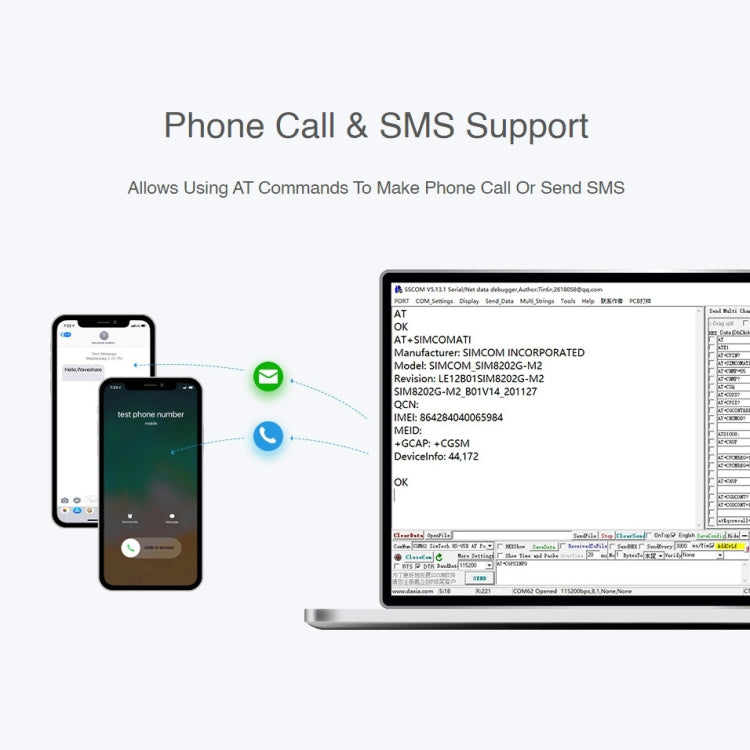

- 2x SIM card slot, dual card single standby, switchable via AT command
- Onboard audio jack and audio decoder for audio operations
- High efficiency power supply circuit, up to 3A output current
