Description

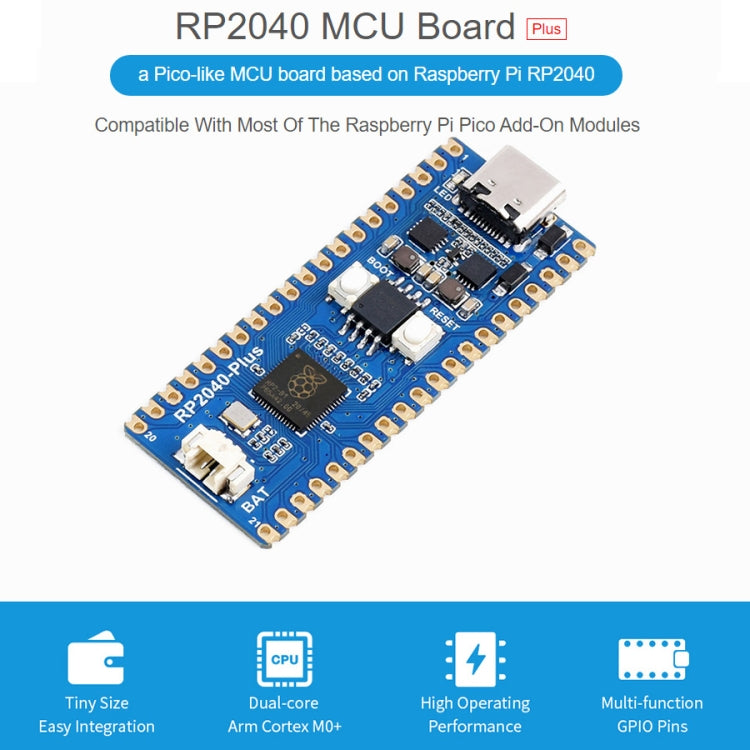

The Waveshare RP2040-Plus is a microcontroller board designed for electronics projects. It is suitable for applications requiring additional flash memory and modern connectivity options.
- Product Type: Module Expansion Accessory
- Compatibility: Raspberry Pi Pico
- Microcontroller: RP2040
- Processor: Dual-core Arm Cortex M0+, up to 133 MHz
- SRAM: 264KB
- Onboard Flash Memory: 4MB
- Connector: USB-C
- Recharge Header: Lithium battery recharge/discharge header
- DC-DC Chip: TPS63000, 1.8A current switch

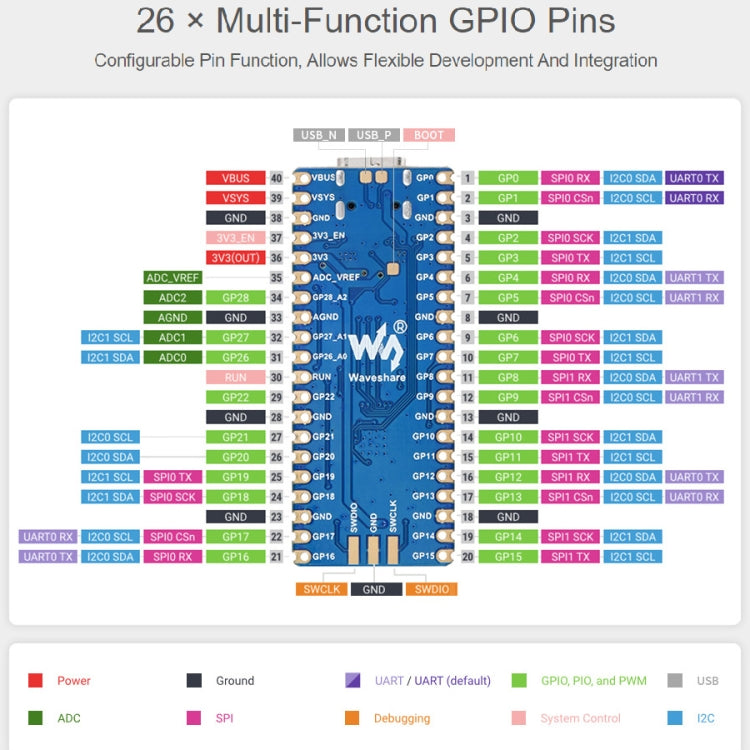

- GPIO Pins: 26 multi-function GPIO pins
- Communication Interfaces: 2 x SPI, 2 x I2C, 2 x UART
- ADC: 3 x 12-bit ADC
- PWM Channels: 16 controllable PWM channels
- Clock and Timer: Accurate clock and timer on-chip
- Temperature Sensor: Integrated temperature sensor
- Programming: Drag-and-drop programming via mass storage over USB
- Power Modes: Low-power sleep and dormant modes
- Custom Peripheral Support: 8 x Programmable I/O (PIO) state machines
- Castellated Module: Allows soldering direct to carrier boards
- USB Support: USB 1.1 with device and host support
