Waveshare Jetson Nano Development / Expansion Module Board Base A
Waveshare Jetson Nano Development / Expansion Module Board Base A
Sale
Sold out
Pre-order
Regular price
R 1,339.00
Regular price
Sale price
R 1,339.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: Jetson Nano
• Material: Not specified
• Key feature: Expansion module
• Color/Variant: Not specified
• Intended use: Development and expansion
• Category: Electronics

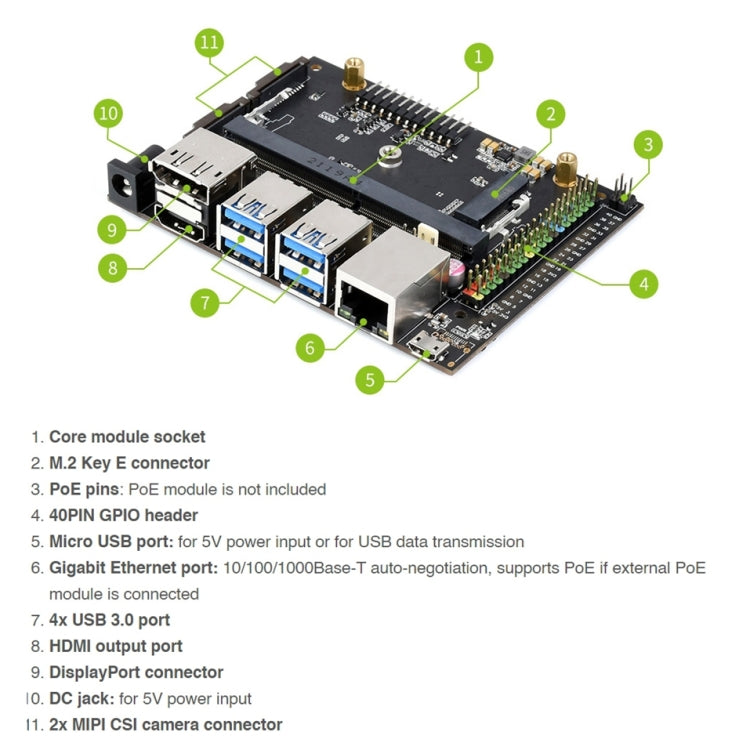

1. GPU: 128-core Maxwell
2. CPU: Quad-core ARM A57 1.43 GHz
3. Memory: 4GB 64-bit LPDDR4 25.6 GB/s
4. Storage: 16GB eMMC (no micro SD card slot)
5. Video encoder: 4K 30, 4x 1080p 30, 9x 720p 30 (H.264/H.265)
6. Video decoder: 4K 60, 2x 4K 30, 8x 1080p 30, 18x 720p 30 (H.264/H.265)

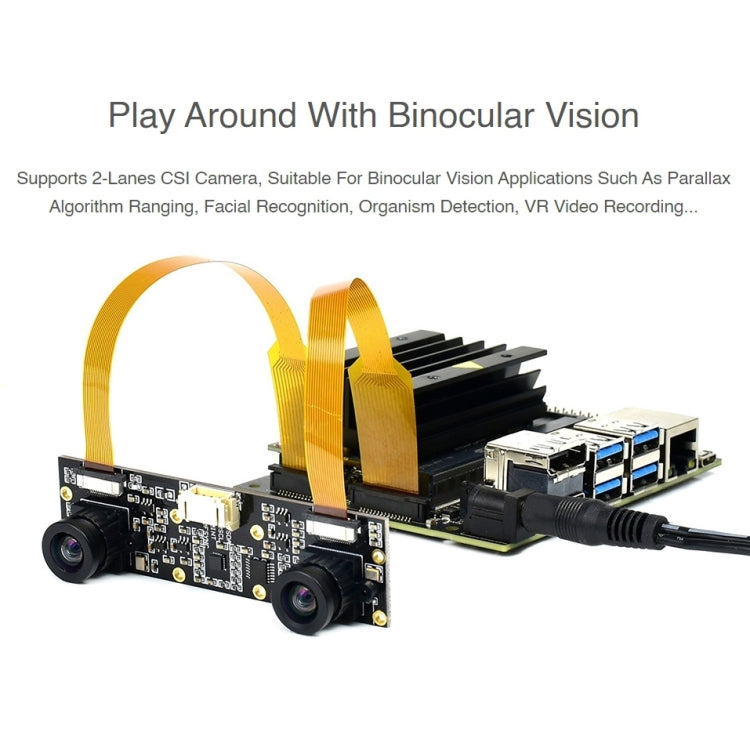

7. Camera: 2x MIPI CSI-2 DPHY lanes
8. Connectivity: Gigabit Ethernet, M.2 Key E expansion connector
9. Display: HDMI and DP
10. USB: 4x USB 3.0, USB 2.0 Micro-B
11. Extension interfaces: GPIO, I2C, I2S, SPI, UART

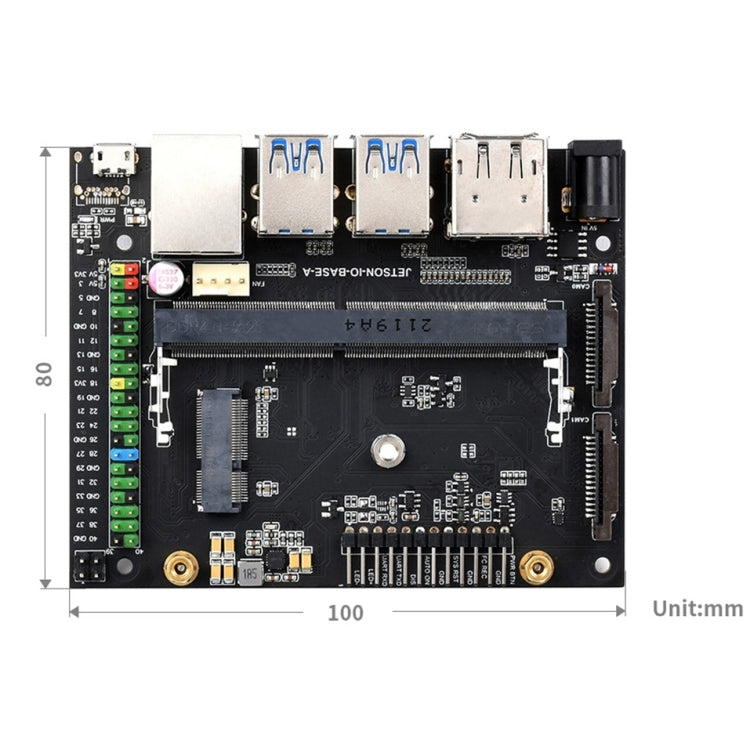

12. Dimensions: 100 x 80 x 29mm
13. Other: 260-pin connector
• Brand: WAVESHARE
• Compatibility: Jetson Nano
• Material: Not specified
• Key feature: Expansion module
• Color/Variant: Not specified
• Intended use: Development and expansion
• Category: Electronics
1. GPU: 128-core Maxwell
2. CPU: Quad-core ARM A57 1.43 GHz
3. Memory: 4GB 64-bit LPDDR4 25.6 GB/s
4. Storage: 16GB eMMC (no micro SD card slot)
5. Video encoder: 4K 30, 4x 1080p 30, 9x 720p 30 (H.264/H.265)
6. Video decoder: 4K 60, 2x 4K 30, 8x 1080p 30, 18x 720p 30 (H.264/H.265)
7. Camera: 2x MIPI CSI-2 DPHY lanes
8. Connectivity: Gigabit Ethernet, M.2 Key E expansion connector
9. Display: HDMI and DP
10. USB: 4x USB 3.0, USB 2.0 Micro-B
11. Extension interfaces: GPIO, I2C, I2S, SPI, UART
12. Dimensions: 100 x 80 x 29mm
13. Other: 260-pin connector
