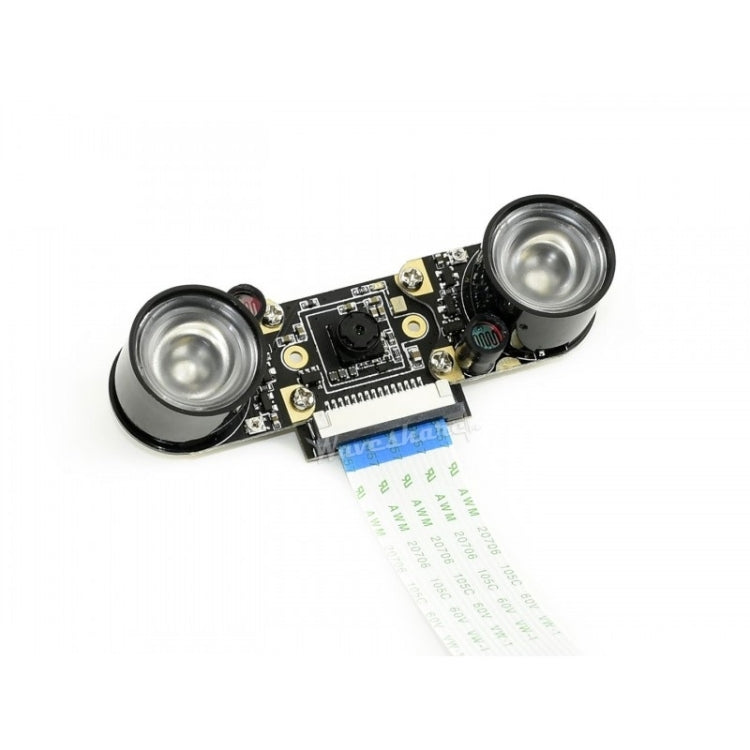

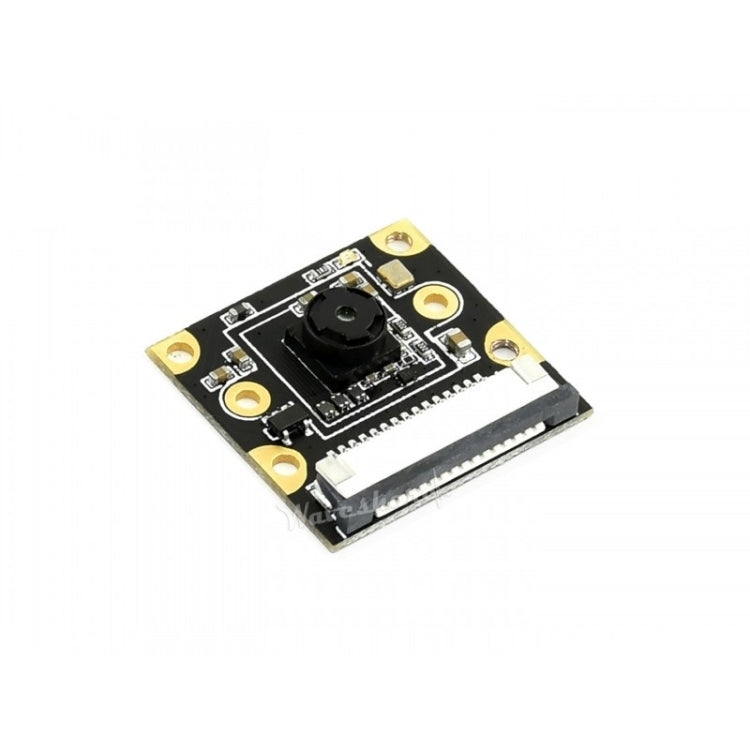

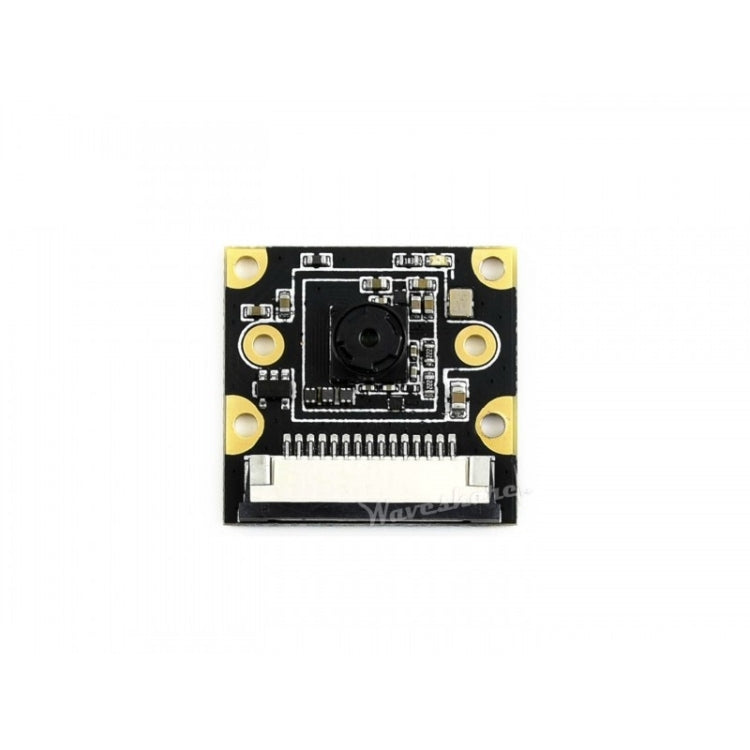

Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano

Name: Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano
Brand: Waveshare
SKU: ZY23185883
Price: 569.00 ZAR
Availability: InStock

R 569.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features

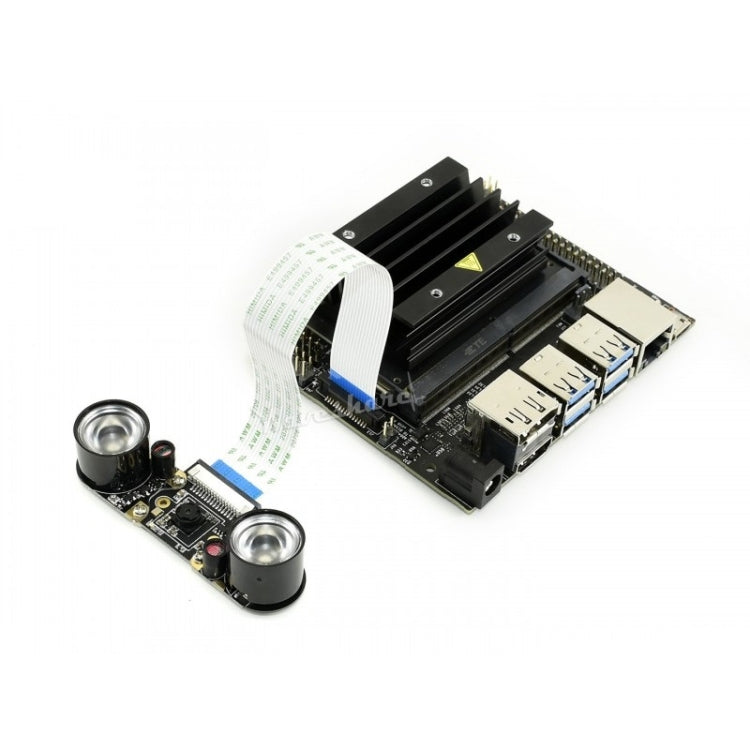

1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm × 6.5mm

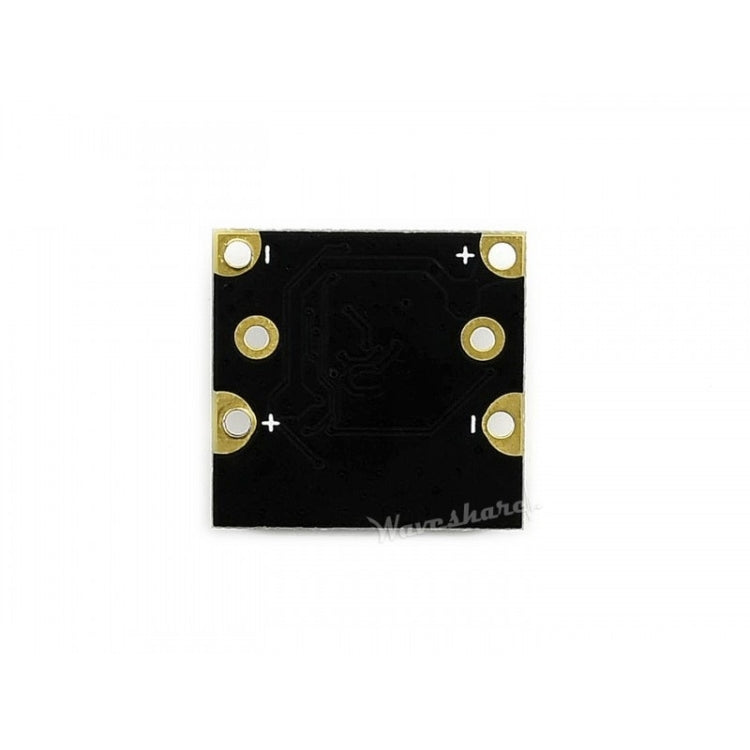

7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12. Weight: 31g

Packing List
1. IMX219-77IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
