Description
The WAVESHARE Gigabit / 2.5G Dual Ethernet Base Board is an accessory designed for the Raspberry Pi CM5. It provides enhanced connectivity options for applications such as remote communications and industrial settings.
- Product Type: Raspberry Pi Accessories
- Compatibility: Raspberry Pi CM5
- Material: Metal
- Color/Variant: UK Plug
- CM5 Card Slot: Compatible with all versions of Compute Module 5
- Networking: 1000M Ethernet RJ45 port, 2500M Ethernet RJ45 port
- Connectors: Raspberry Pi 40-pin GPIO interface
- USB: USB 3.2 Gen1 x 1; USB 2.0 x 2
- MIPI: 4-lane MIPI interface x 2 (22-pin 0.5mm FFC connector)
- Video: HDMI interface x 2, supports dual 4K output
- M.2: M.2 M KEY (PCIe Gen2/3 x 1)
- Storage: Onboard Micro SD card slot (for CM5 versions without eMMC)
- Fan Interface: 5V, 4-pin JST-SH PWM fan connector
- Other: Onboard EEPROM and cryptographic chip
- Power Input: 7V-36V wide voltage range
- Size: Base board: approximately 109.0 x 91.5mm; Enclosure: approximately 114.6 x 91.5 x 32.9mm
- Features: Designed specifically for Raspberry Pi Compute Module 5 core boards
- Integration: Onboard 40-pin GPIO interface and standard CM5 connector, supporting integration with Compute Module 5 Lite / eMMC series core boards
- Performance: Supports booting Raspberry Pi from NVMe SSD, significantly faster read/write speeds compared to Raspberry Pi's Micro SD interface
- Connectivity: Expanded connectivity with ETH/MIPI/HDMI/Micro SD/USB/M.2 B KEY/M KEY ports
- Installation: Wall-mounting holes on both sides and rail mounting screw holes on the back for secure mounting
- Cooling: Integrated cooling fan with ventilation ports on the top cover

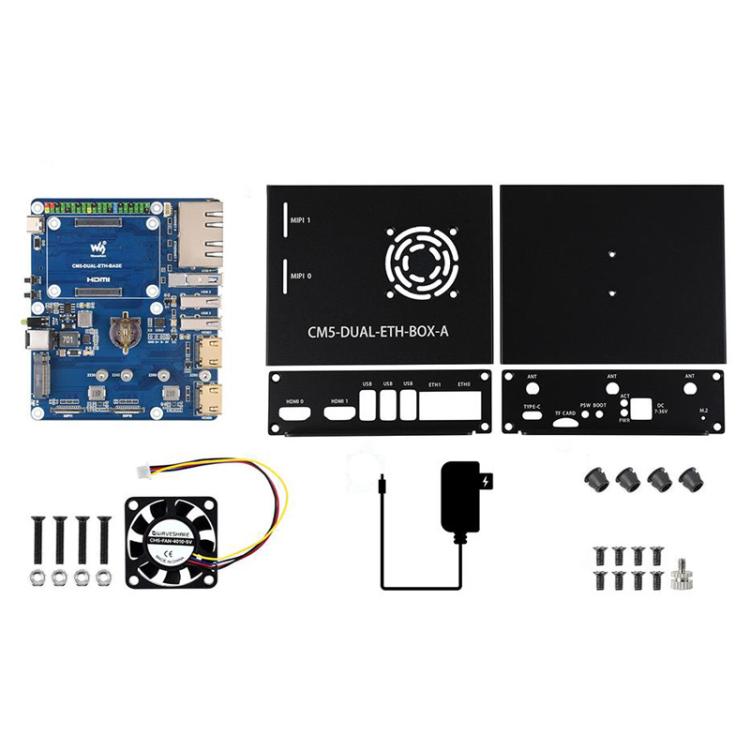

- Package Contents: CM5-DUAL-ETH-BASE x 1, Metal enclosure (Top & Bottom) x 1, CM5-FAN-4010-5V x 1, 12V 4A power supply x 1, Rubber plugs (4PCS) x 1, Screw set x 1
