Description

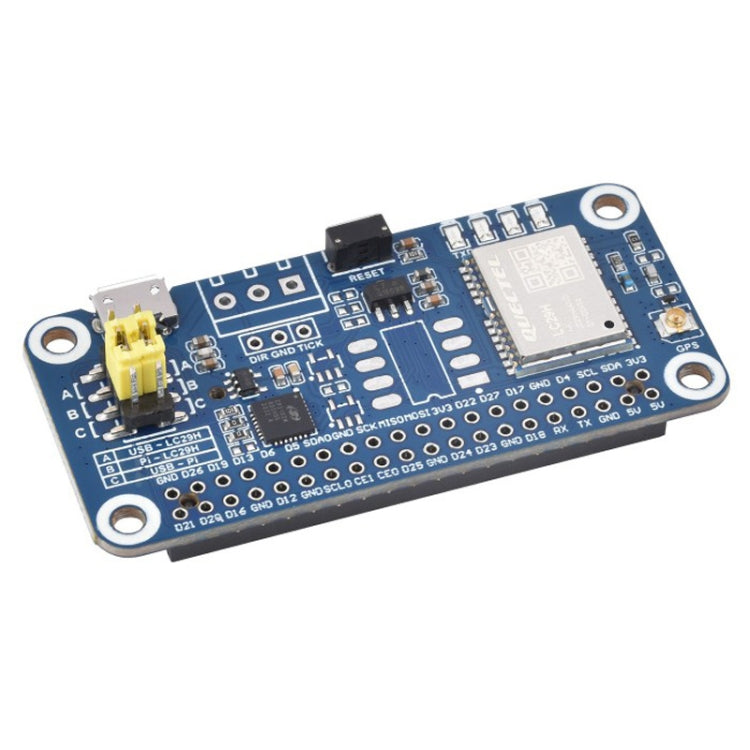

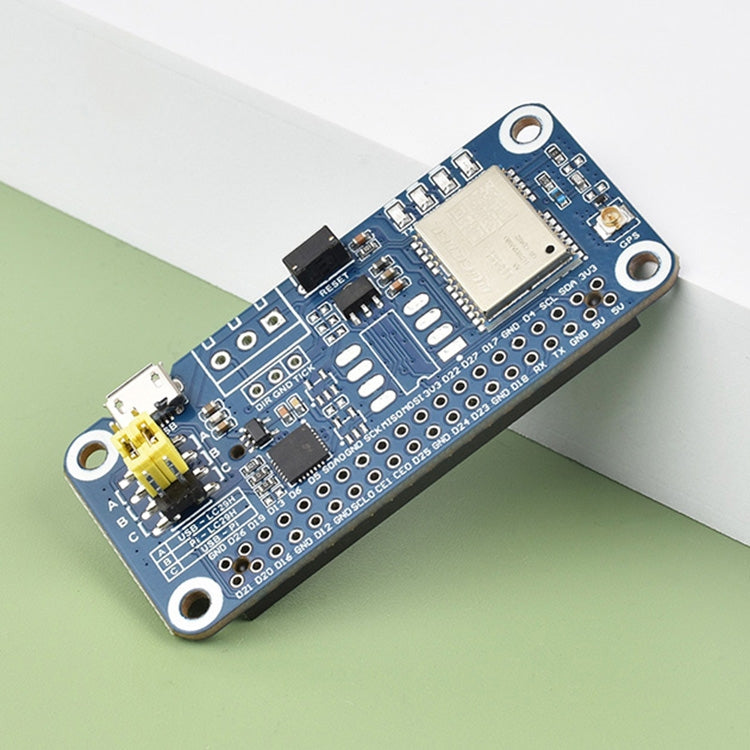

The LC29H Series Dual-Band L1+L5 Positioning GPS Module is designed for Raspberry Pi. It is suitable for real-time tracking systems and applications such as drones and smart agricultural machinery.
- Product Type: Raspberry Pi Accessories
- Compatibility: Raspberry Pi, Jetson Nano
- Material: Not specified
- Key Feature: Dual-band L1+L5 positioning
- Tracking: Supports simultaneous tracking of L1+L5 dual-frequency satellite signals
- GNSS Systems: Concurrent reception of GPS, BDS, GLONASS, Galileo, and QZSS
- Positioning Accuracy: Centimeter-level high-precision positioning using RTK technology
- Power Consumption: Low power consumption
- Built-in Components: Low-noise amplifier, SAW filters
- Sensitivity: -165dBm high sensitivity
- Interference Cancellation: Multi-frequency active interference cancellation

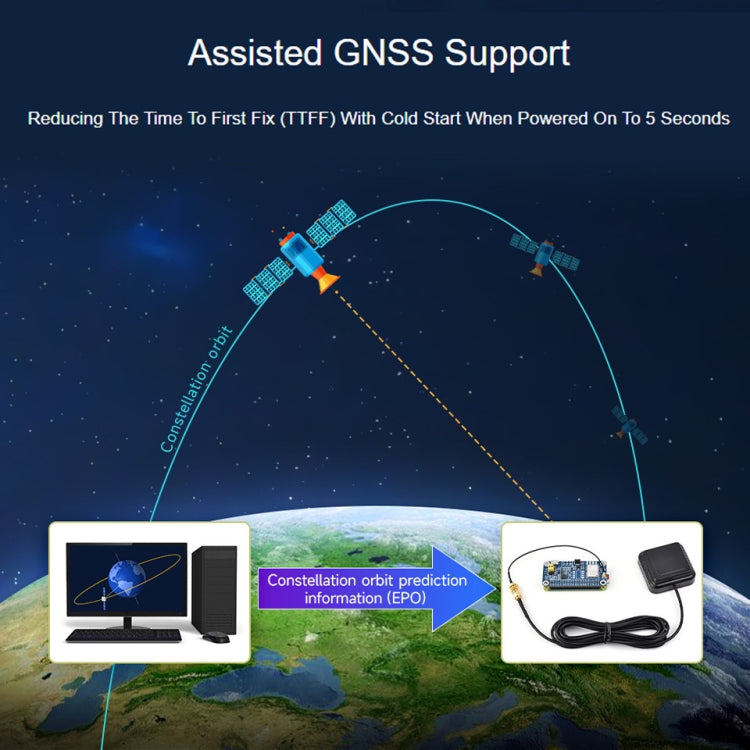

- A-GNSS Support: Reduces cold start time to first fix (TTFF) to 5 seconds
- Onboard Battery Holder: Supports ML1220 rechargeable battery for saving ephemeris information
- LED Indicators: 4 LED indicators for module working status
- Positioning Enhancement: Supports WAAS, EGNOS, MSAS, and GAGAN systems
- Fast Convergence: Supports fast convergence dual-frequency RTK positioning
- GNSS Data Output: Supports GNSS original observation and correction data output
