Description

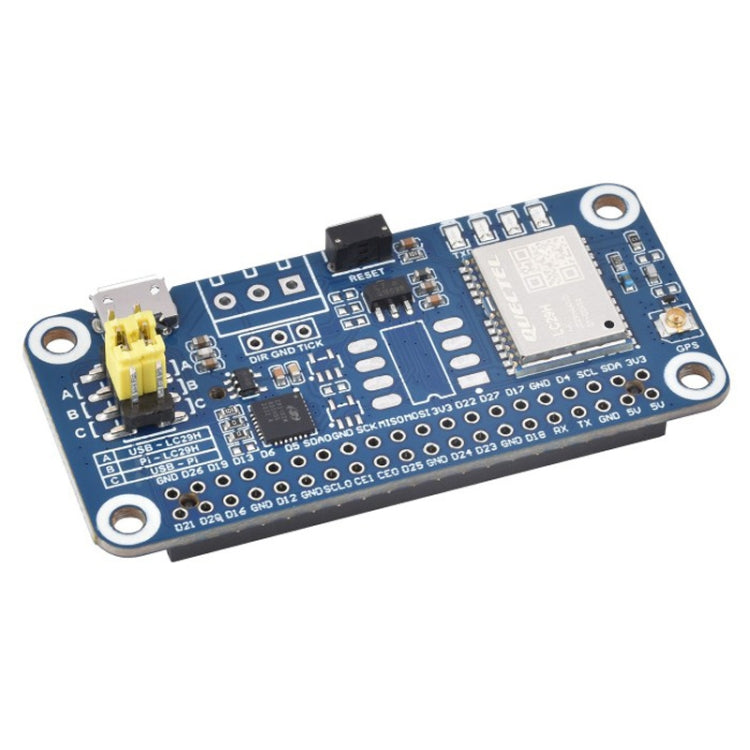

The LC29H Series Dual-Band L1+L5 Positioning GPS Module is designed for high-precision positioning applications. It is suitable for real-time tracking systems, such as drones and smart agricultural machinery.
- Frequency Bands: GPS/QZSS (L1C/A, L5), Beidou (B1I, B2a), Galileo (E1, E5a), GLONASS (L1)
- Concurrent GNSS Support: GPS/QZSS, Beidou, Galileo, GLONASS
- Sensitivity: Tracking Navigation -165dBm, Reacquisition -159dBm, Cold Start -147dBm
- Dynamic Performance: Maximum Acceleration 4g, Maximum Altitude 10,000m, Maximum Speed 500m/s

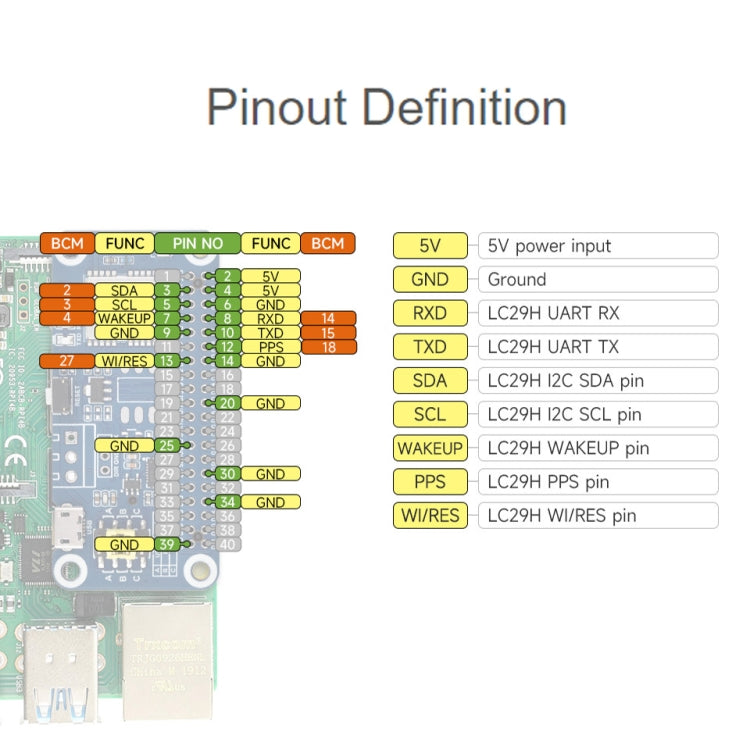

- Communication Interface: UART (9600~3000000bps, default 115200bps), I2C (maximum 400KHz)
- Protocol: NMEA 0183 V4.10, RTCM 3.x
- Power Supply: 5V
- Total Current: Less than 40mA at 5V (continuous mode)
- Operating Temperature: -40 to 85 degrees Celsius
- Product Dimensions: 65 x 30.5 mm
- Weight: 126g
- Included Accessories: LC29H GPS HAT x 1, 2x20PIN female socket x 1, GPS external antenna (D) x 1, IPEX 1 to SMA cable 17cm x 1, screw pack x 1
