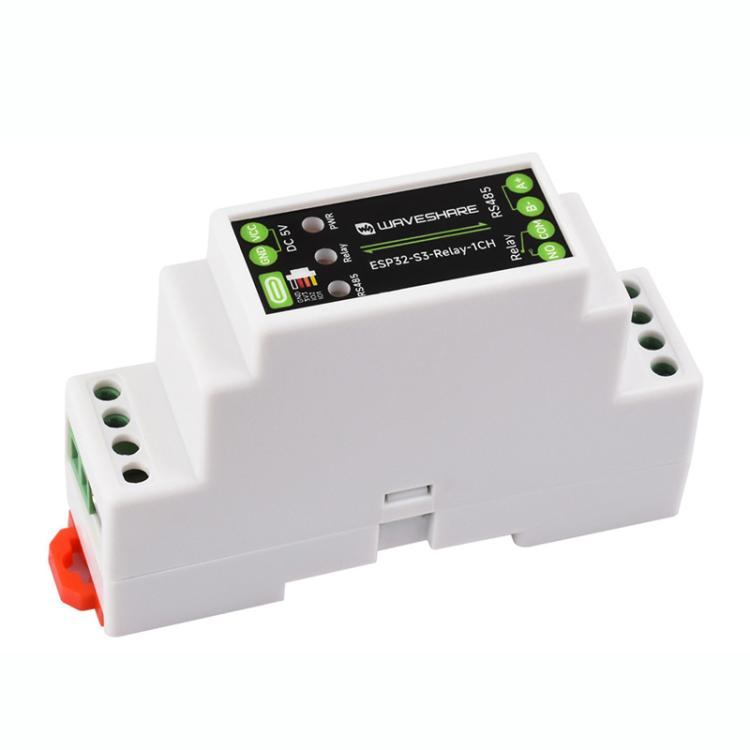

WAVESHARE ESP32-S3-Relay-1CH Industrial Control Board WiFi Network Relay Supporting WiFi / Bluetooth With Multiple Isolation Protection Circuits
WAVESHARE ESP32-S3-Relay-1CH Industrial Control Board WiFi Network Relay Supporting WiFi / Bluetooth With Multiple Isolation Protection Circuits
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R225.03/mo 3 months
- R113.79/mo 6 months
- R60.05/mo 12 months
- From R225.03/month over 3 months, or as low as R60.05/month over 12. Total repayable over 12 months: R720.6. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

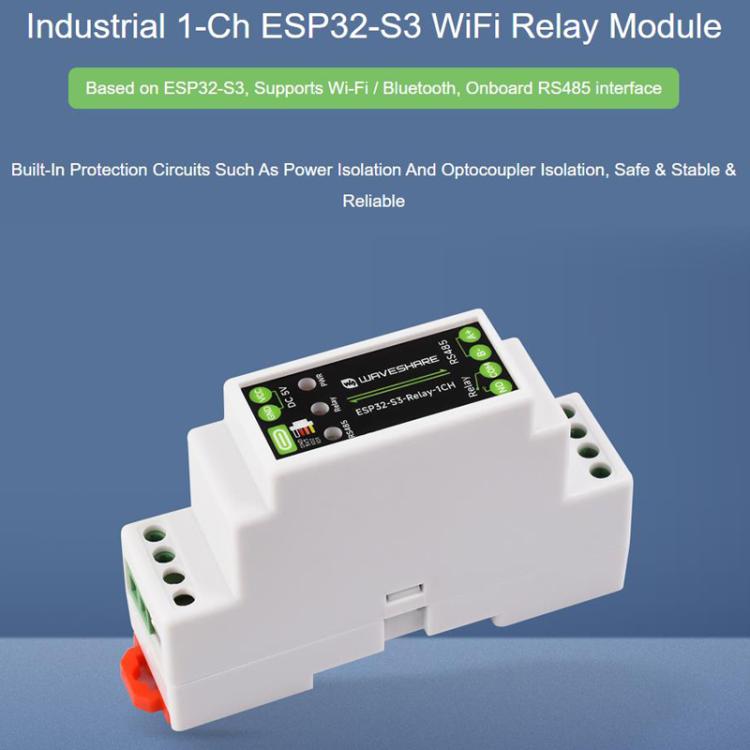

The WAVESHARE ESP32-S3-Relay-1CH is an industrial control board designed for WiFi network relay applications. It is suitable for controlling devices with a load of up to 10A at 250V AC or 30V DC.
- Product Type: Mini PC Accessories

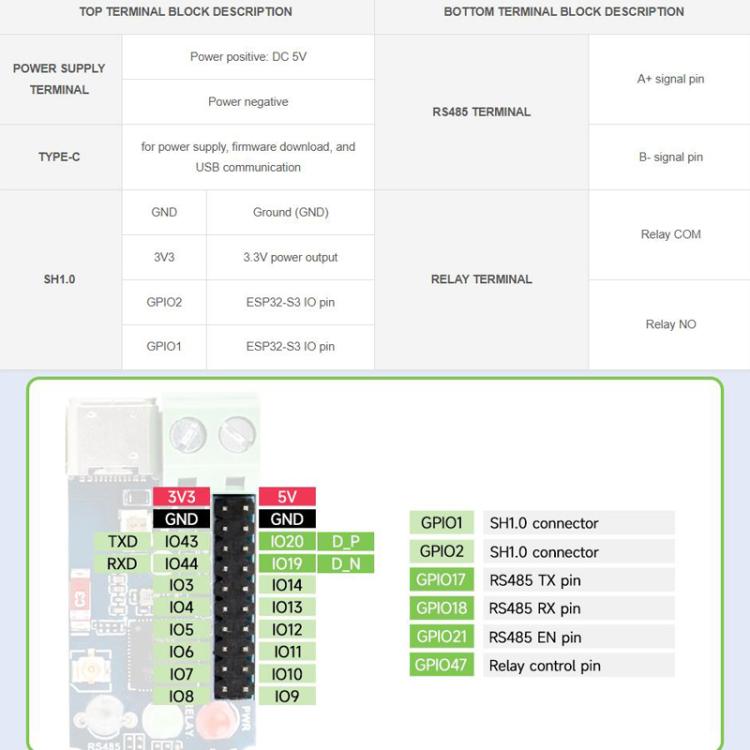

- Microcontroller: ESP32-S3 (default ESP32-S3R8 chip)
- Wireless Communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)

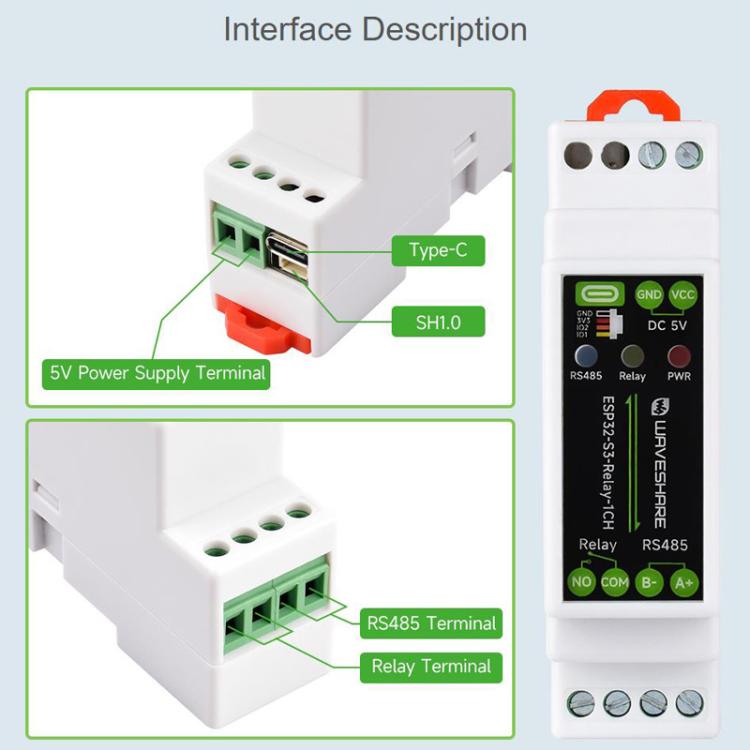

- USB Interface: Type-C, Supply Voltage: 5V, Functions: power supply, USB communication, firmware download
- Isolated RS485: Terminal block interface, automatically controlled direction, TVS diode protection, surge and static protection, reserved 120R matching resistor

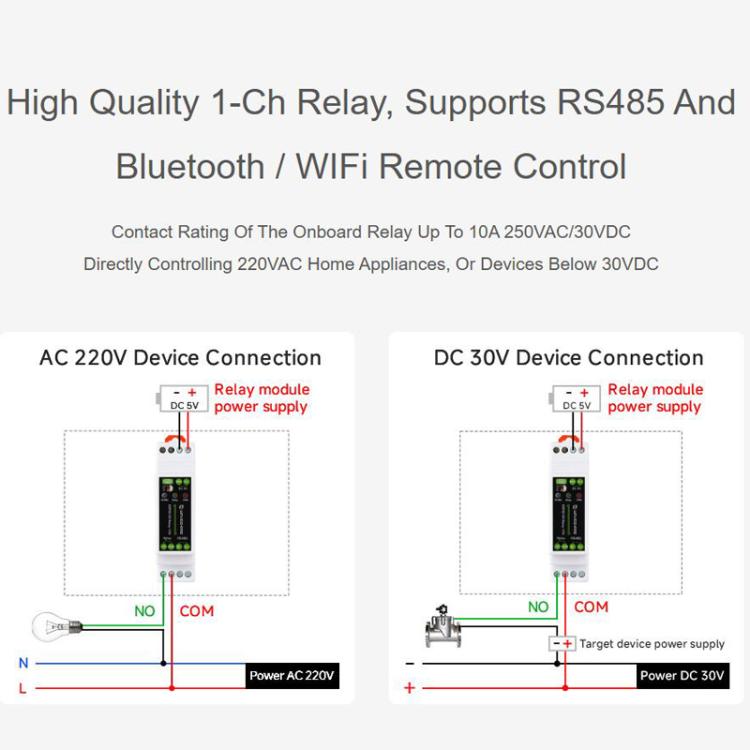

- Relay: 1 channel, normally open contact, optocoupler isolation, allowed load connection: ≤10A 250V AC or ≤10A 30V DC
- Indicator Lights: PWR (red), RS485 (green/blue), Relay indicator light
- Terminal Power Supply Range: 5V

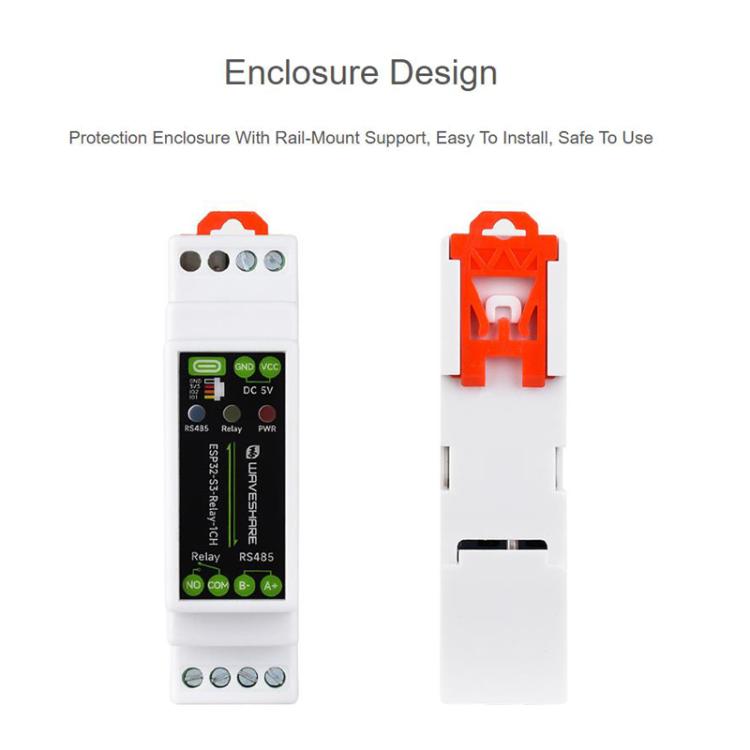

- Shell: Rail-mounted protective shell

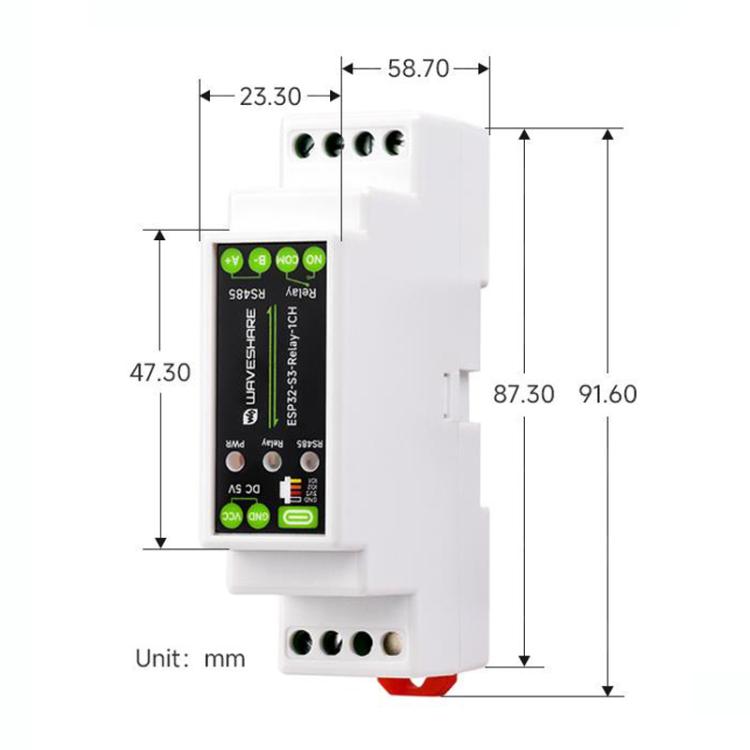

- Size: 9.16 x 2.33 x 5.87 cm
- Processor: Xtensa 32-bit LX7 dual-core, maximum frequency 240MHz

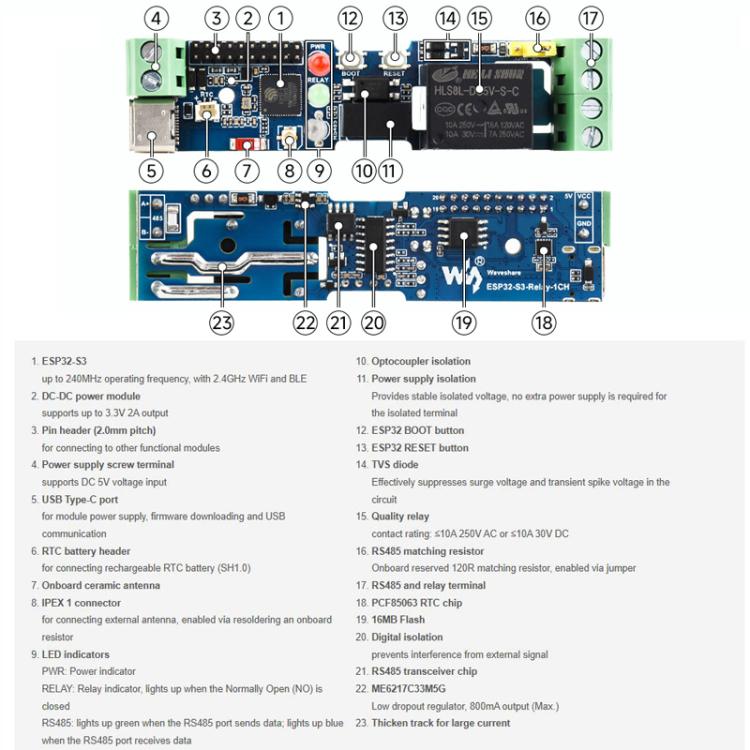

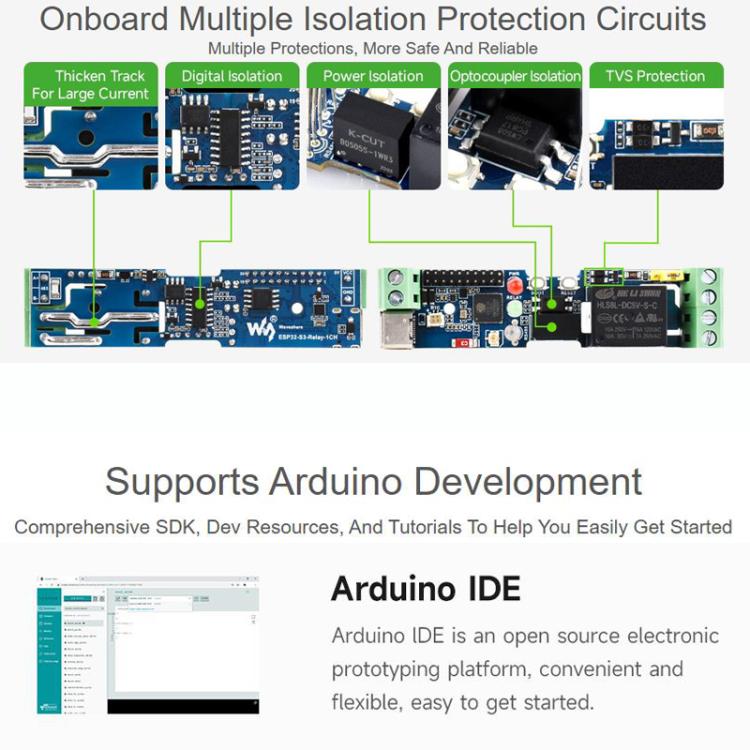

- Features: onboard RTC clock chip, onboard USB Type-C interface, onboard wiring terminal power supply interface (5V), onboard optocoupler isolation, onboard digital isolation, integrated power isolation system, RS485 receiver-transmitter indicator light
