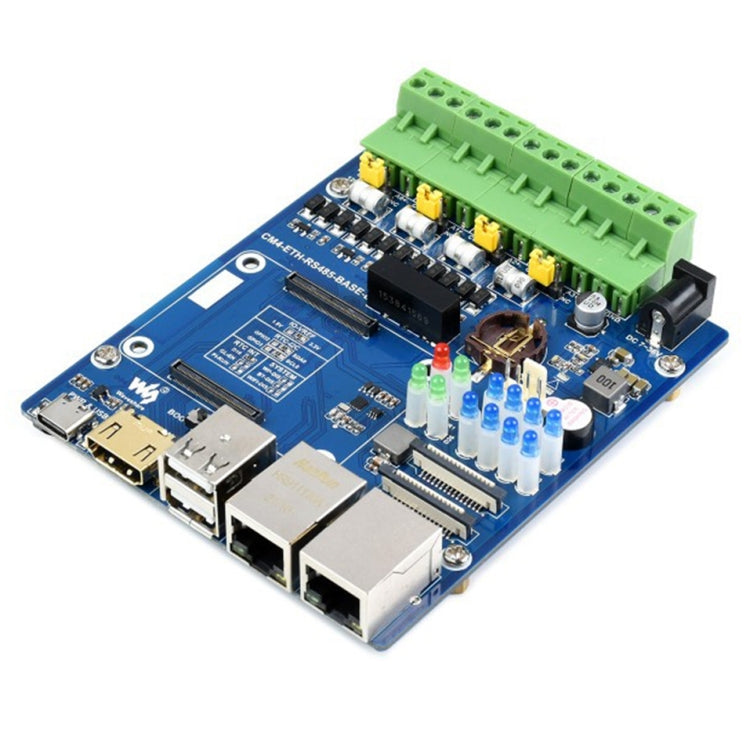

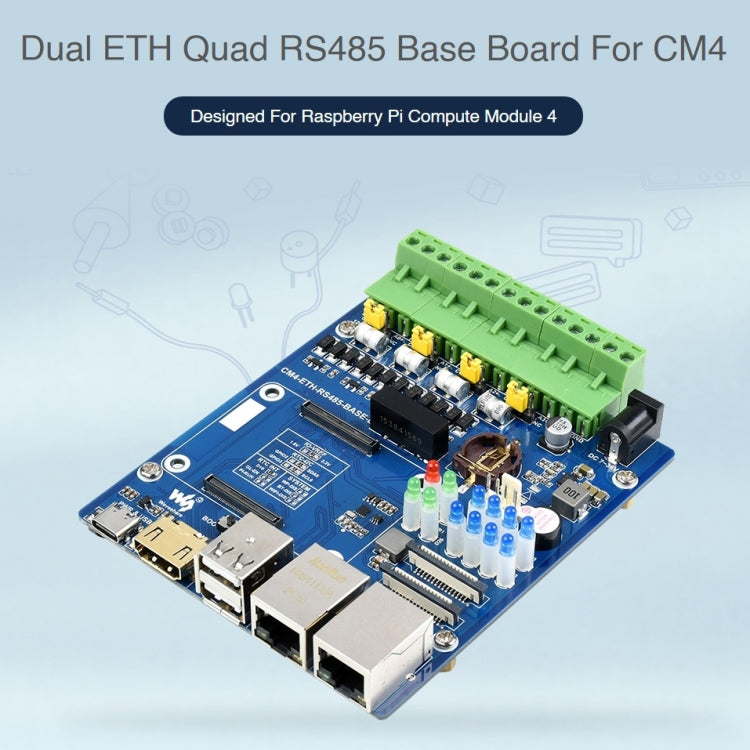

Waveshare Dual ETH Quad RS485 Base Board B for Raspberry Pi CM4, Gigabit Ethernet

Name: Waveshare Dual ETH Quad RS485 Base Board B for Raspberry Pi CM4, Gigabit Ethernet
Brand: WAVESHARE
SKU: DIY0249
Price: 1169.00 ZAR
Availability: InStock

R 1,169.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

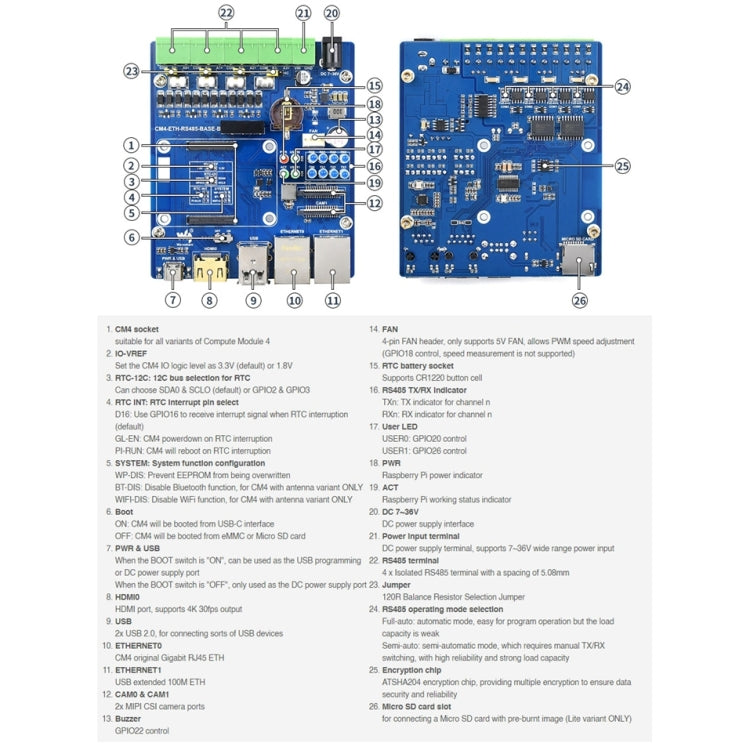

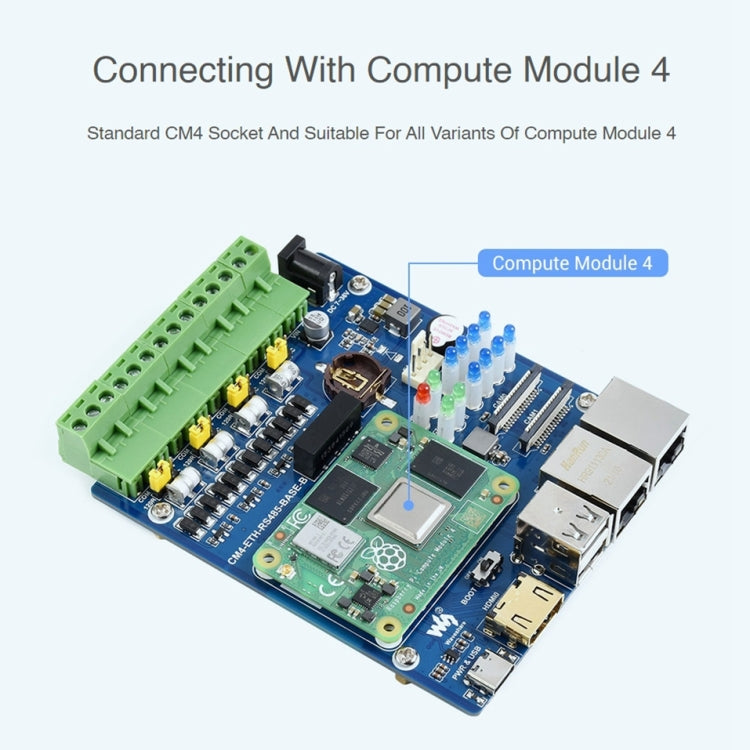

1. CM4 socket: Suitable for all variants of Compute Module 4

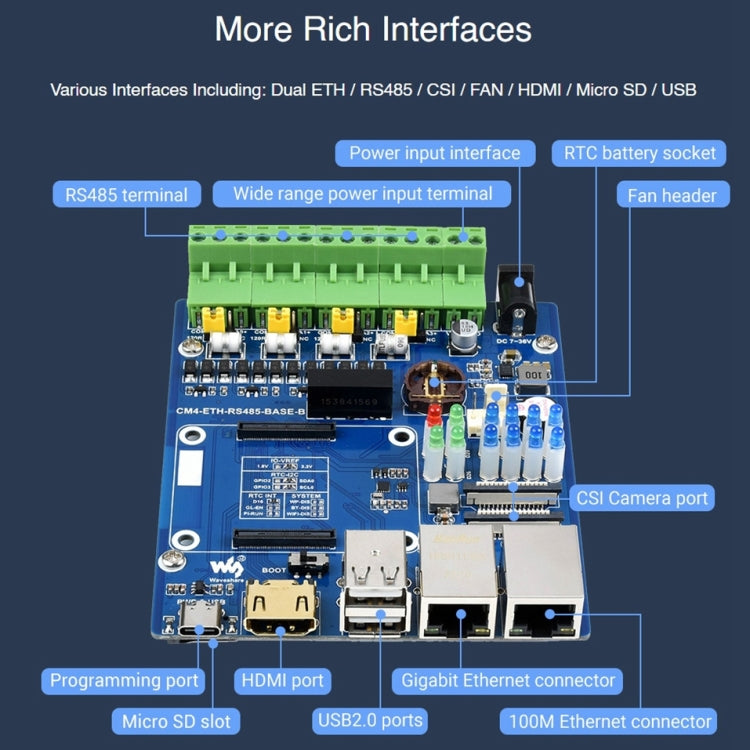

2. Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
3. Connetor: Isolated RS485 x 4, Power screw terminal x 1
4. USB: USB 2.0 Type A x 2
5. Cacmera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
6. Video: HDMI port x 1, supports 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: Allows speed adjustment, 5V
10. Indicator: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8
11. Power input: 7-36V

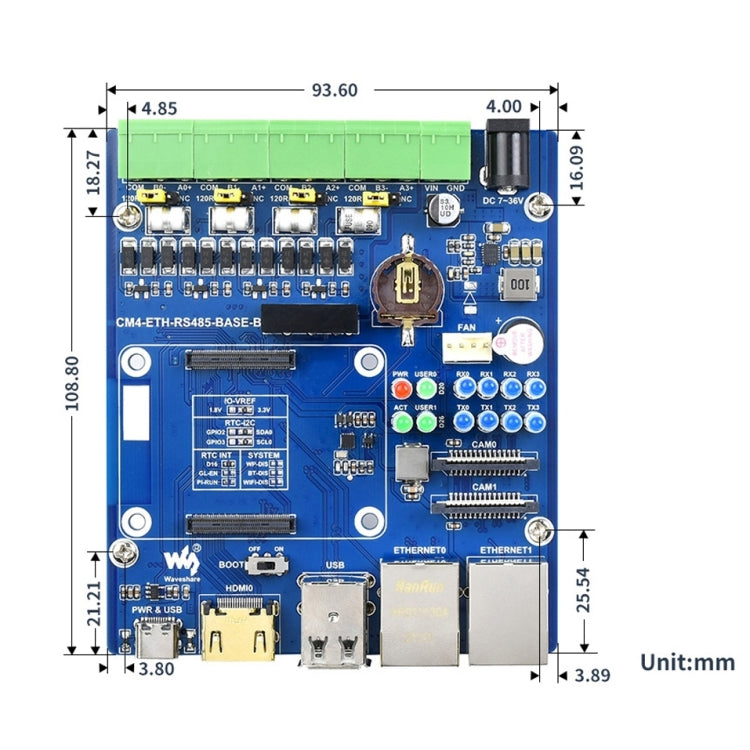

12. Dimension: 93.6 x 108.8mm
