Description

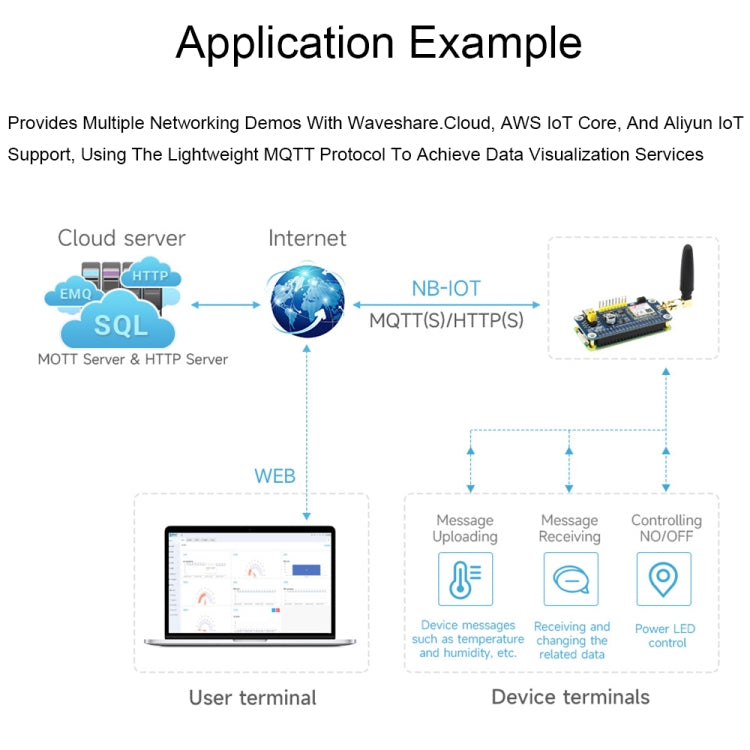

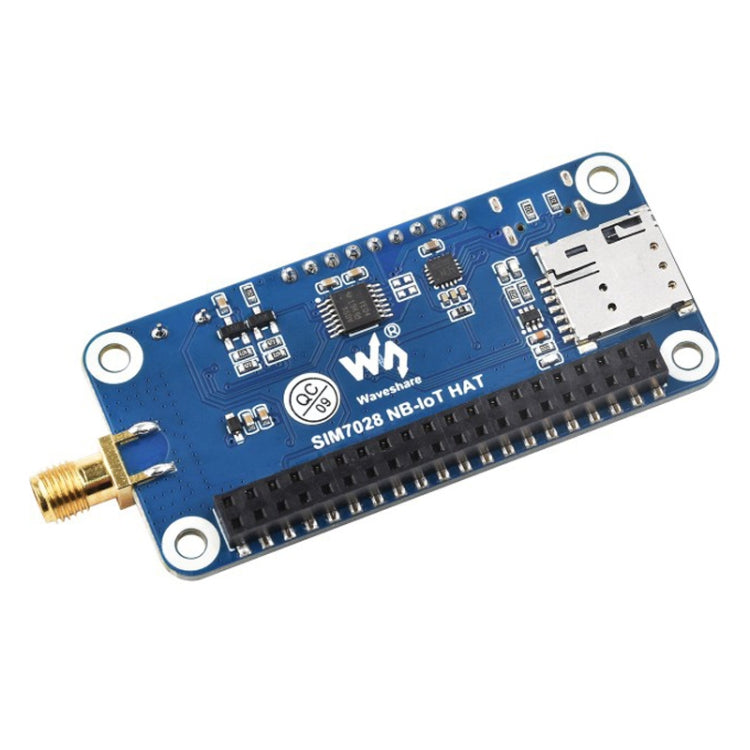

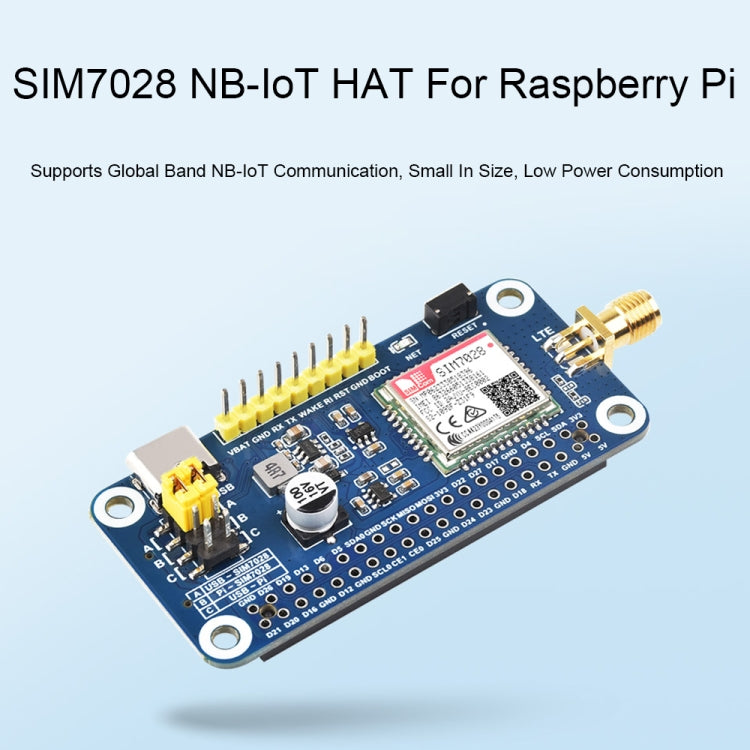

The SIM7028 NB-IoT HAT is an accessory designed for Raspberry Pi that enables NB-IoT communication. It is suitable for IoT applications such as remote monitoring, asset tracking, and telemedicine.
- Product Type: Raspberry Pi Accessory

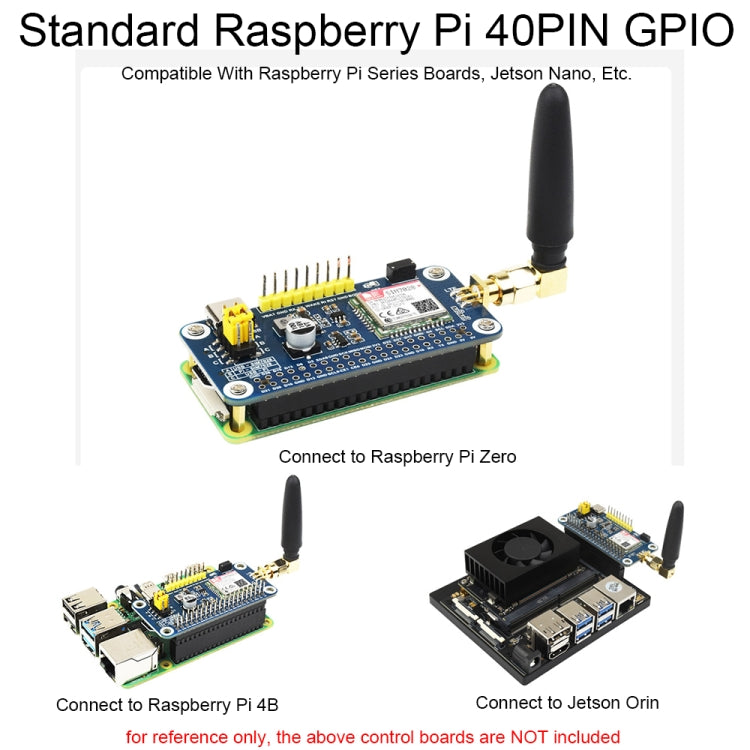

- Compatibility: Raspberry Pi, Jetson Nano
- Frequency Bands: B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85
- Data Rate: Uplink ≤ 159Kbps, Downstream ≤ 127Kbps
- Power Supply: 5V
- Logic Level: 5V/3.3V (default 3.3V)
- Total Current (Idle Mode): 4mA
- Single Module Current: Idle Mode: 2.8mA, PS Mode: 0.8µA, DRX Mode: 0.11mA@idle (DRX=2.56s), eDRX Mode: 0.018mA@idle (eDRX=163.84s; PTW=25.6s)

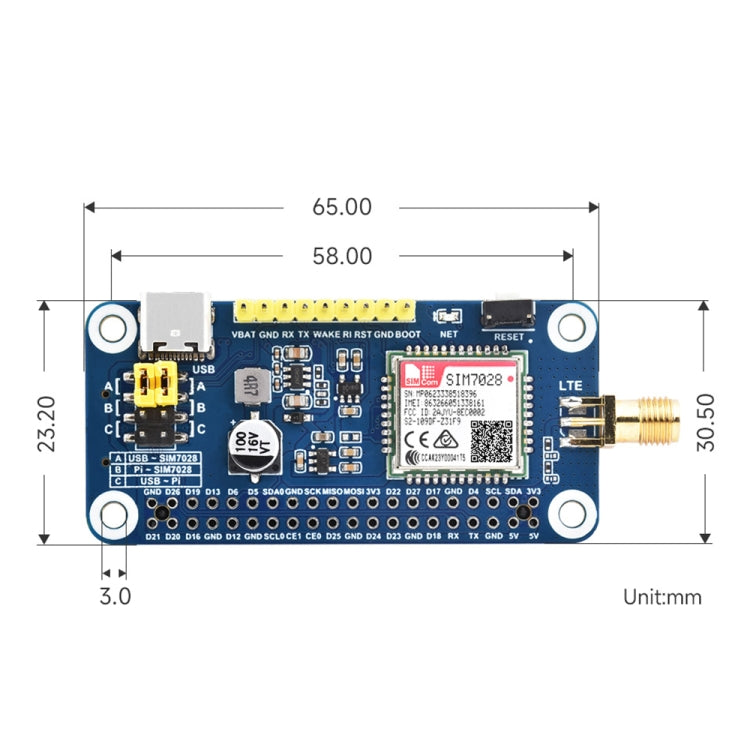

- Product Size: 65 x 23.2mm
- Weight: 60g

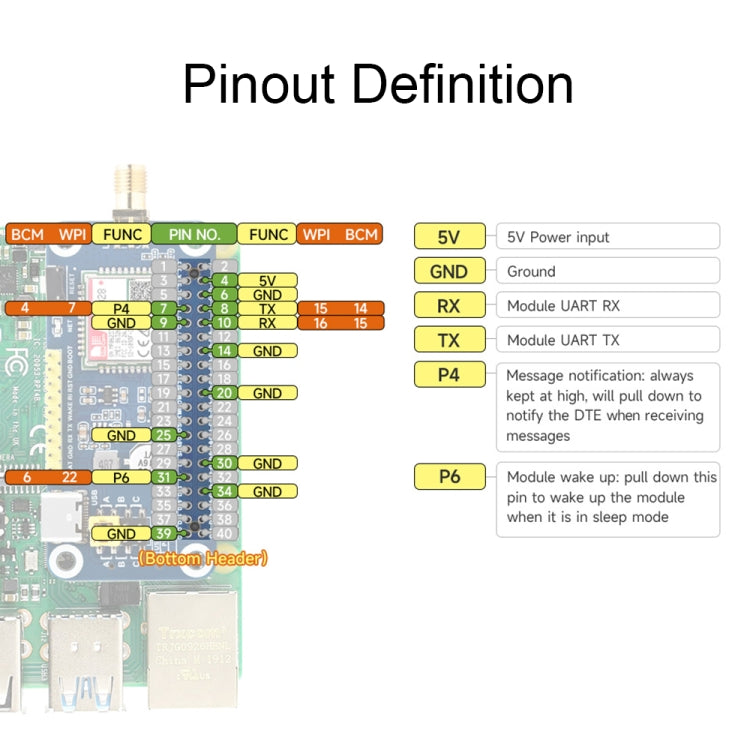

- Onboard Features: Type-C interface for software debugging, UART control pin for connecting to Arduino/STM32, LED indicator light, USB to UART chip, nano SIM card slot
- Control: Via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT commands)
- Support for SIM application toolkit: SAT Class 3, GSM 11.11, USAT
- Development Resources: Online resources and manuals available for Raspberry Pi, Jetson Nano, Arduino, ESP32 examples
