WAVESHARE 2.8 inch 262K Colors 320 x 240 Pixel Touch Display Module for Raspberry Pi Pico, SPI Interface
WAVESHARE 2.8 inch 262K Colors 320 x 240 Pixel Touch Display Module for Raspberry Pi Pico, SPI Interface
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING via Buffalo Logistics. Fully Insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 7 - 15 working days.
Overseas Warehouse
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. 320x240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
2. Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
3. MicroSD card slot for storing images and direct displaying them easily
4. Programmable backlight control, power saving
5. Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

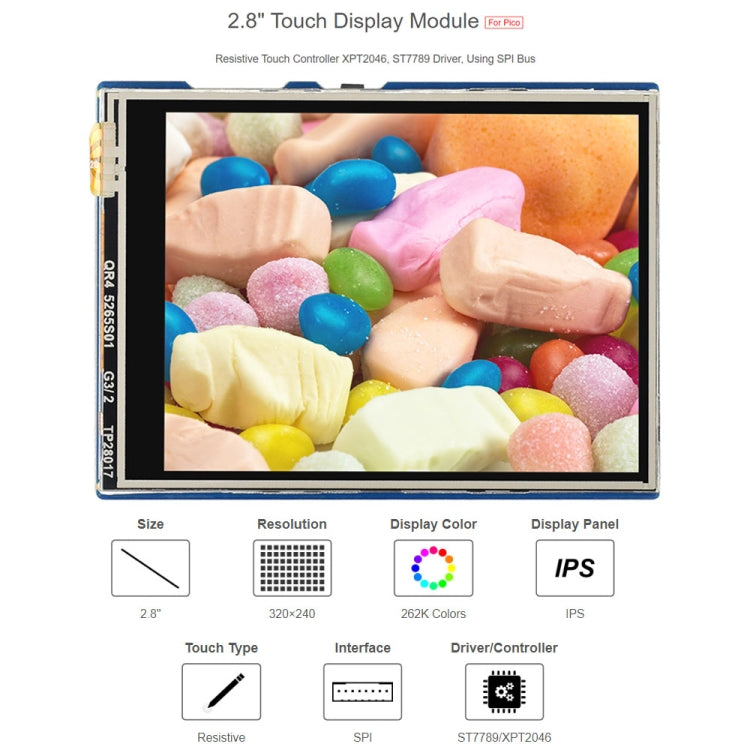

Specification
1. Operating voltage: 5V
2. Resolution: 320x240 pixels
3. Display color: 265K colorful
4. Communication interface: SPI
5. Display panel: IPS
6. Display size: 57.60 x 43.20 mm
7. Pixel size: 0.18x 0.18 mm
8. Driver: ST7789
9. Touch Controller: XPT2046

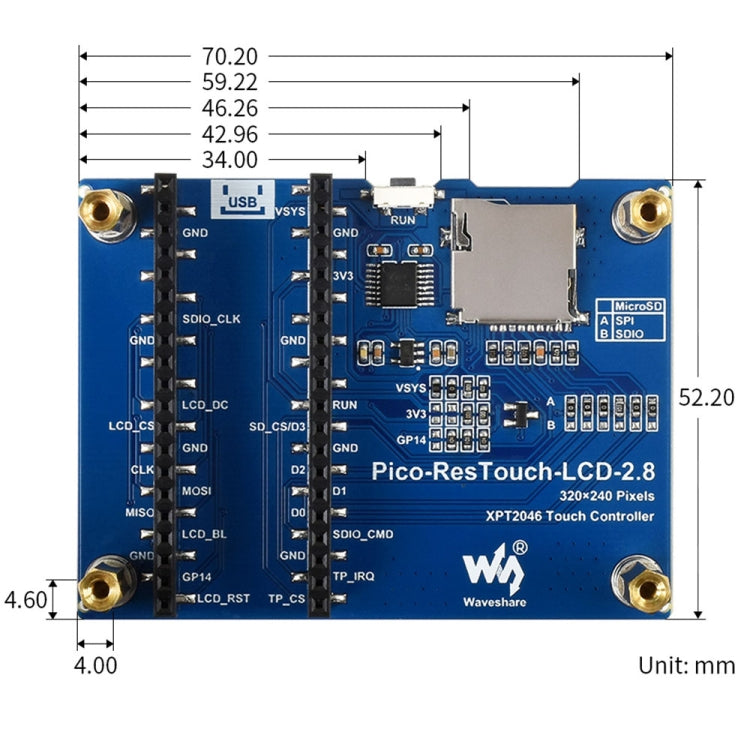

10. Size: 70.20 x 50.20 mm

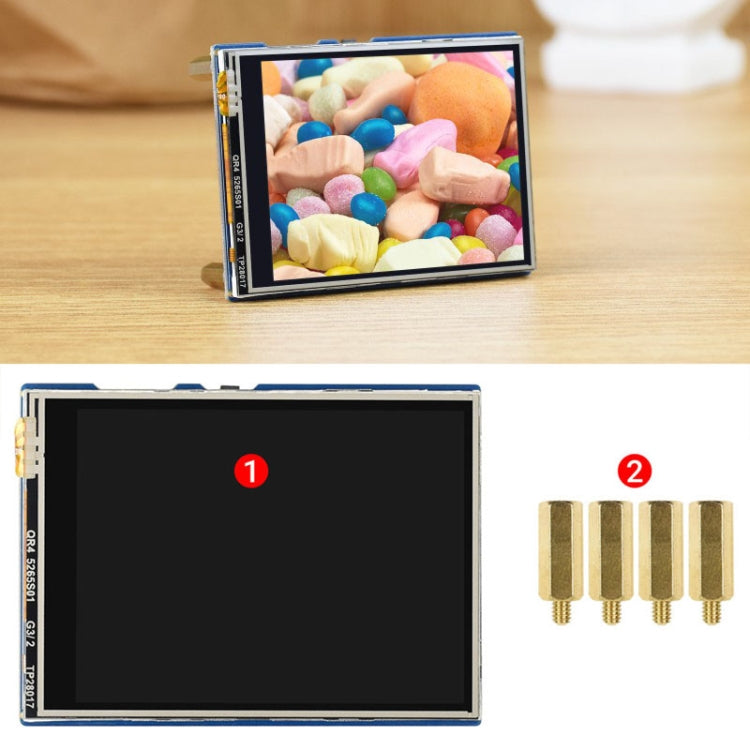

Package List
1. Pico-ResTouch-LCD-2.8 x1
2. Standoffs pack x1
