Waveshare 13.3inch 960×680 Pixels SPI Communication E-Ink Display, Spec: Nude Screen Version
Waveshare 13.3inch 960×680 Pixels SPI Communication E-Ink Display, Spec: Nude Screen Version
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. No backlight is required, and the display content of the last screen can be maintained for a long time when the power is off
2. The power consumption is very low, and basically only consumes power when refreshing

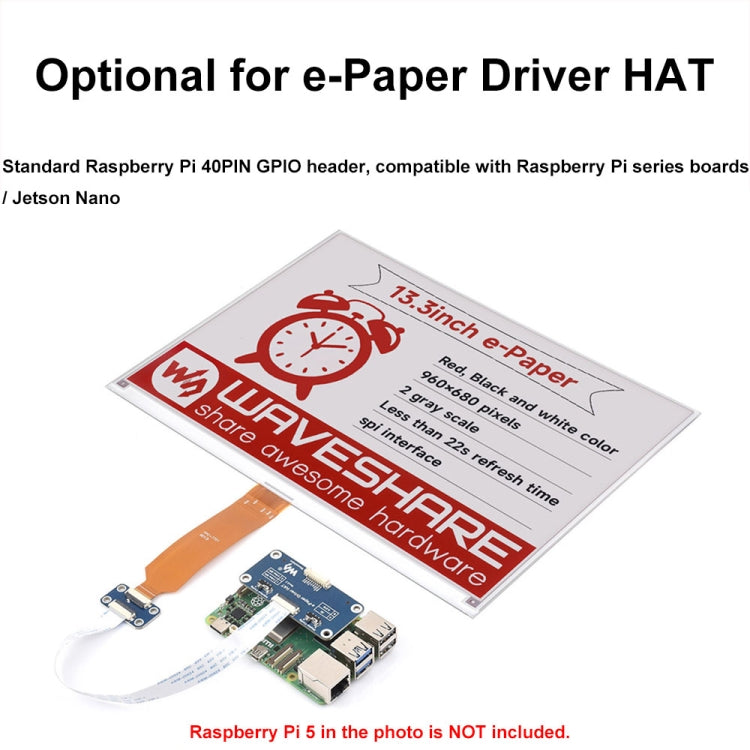

3. Provide a complete supporting data manual (driver board schematic, Raspberry Pi/Jetson Nano/RDKX3/Arduino/STM32 and other sample programs)
4. Bare screen version working voltage: 3.3V
5. Screen size: 286.32 x 212.26 x 1.20mm
6. Display size: 275.52 x 195.16mm
7. Dot pitch: 0.287 x 0.287mm
8. Resolution: 960 x 680 pixels
9. Display color: red, black, white
10. Grayscale level: 2
11. Local refresh: 2.9s
12. Global refresh: 22s
13. Refresh power consumption: 75mW
14. Sleep current: less than 0.01 microamperes (close to 0)
15. Viewing angle: greater than 170 degrees
16. Application areas: for display applications such as shelf labels and industrial instruments
17. Weight: 164 grams
Packing list:
-Display x 1
