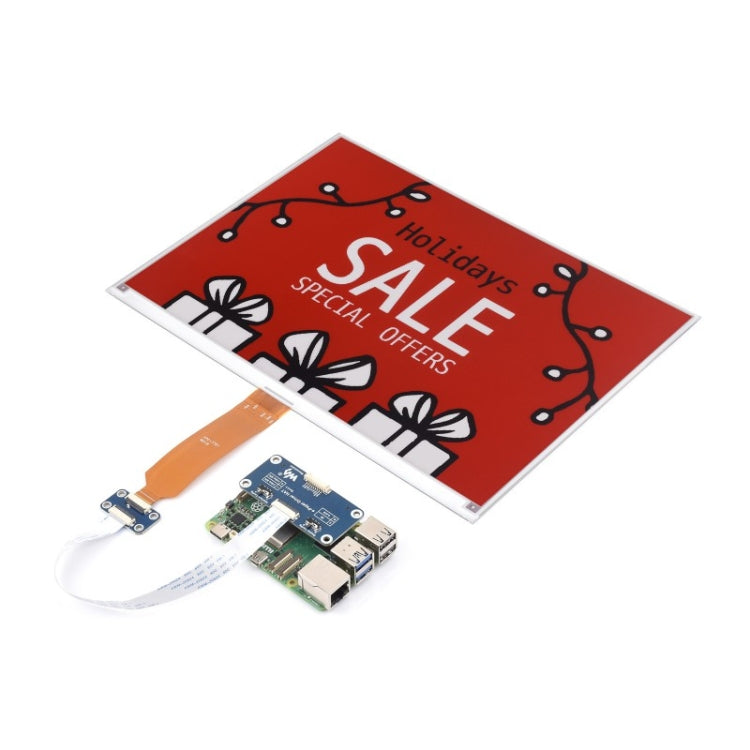

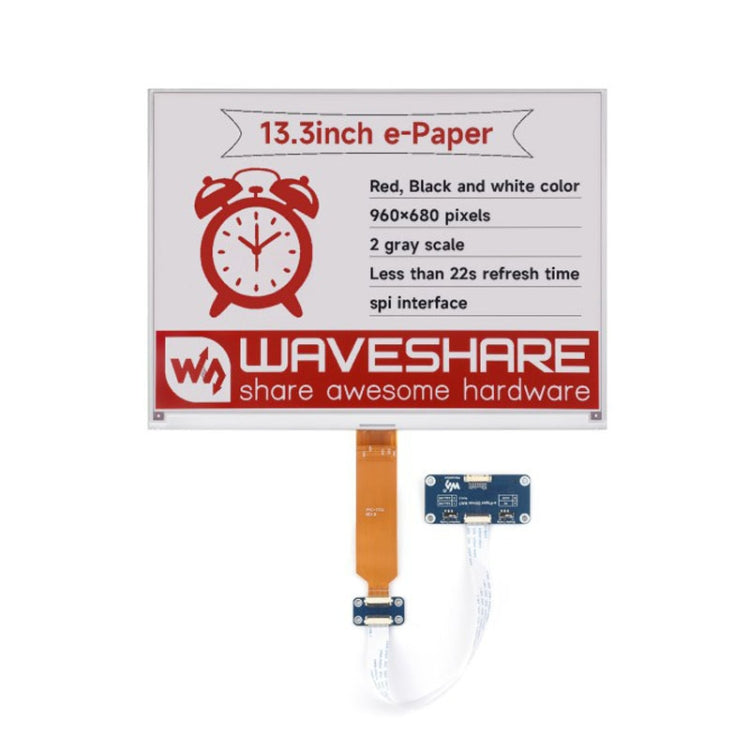

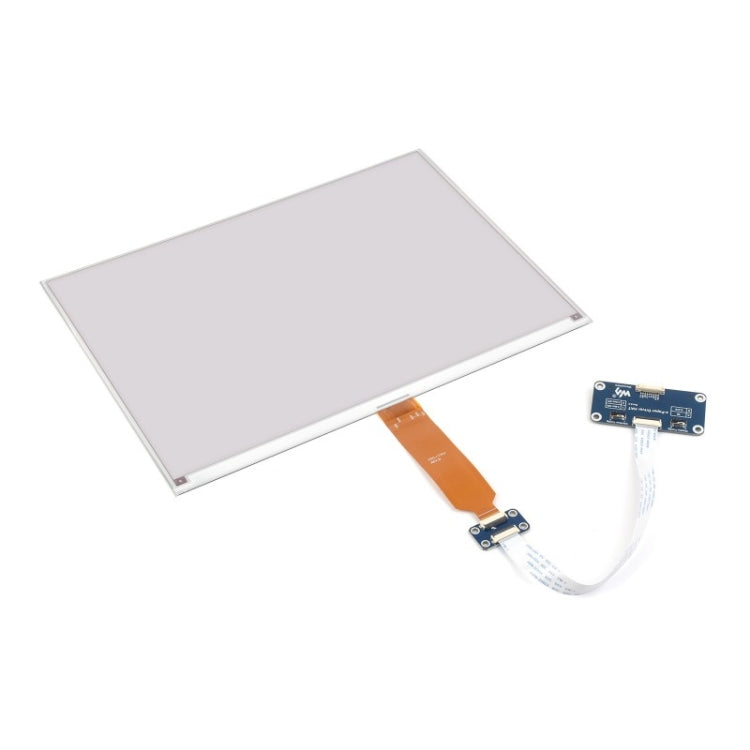

Waveshare 13.3inch 960×680 Pixels SPI Communication E-Ink Display, Spec: Module Version
Waveshare 13.3inch 960×680 Pixels SPI Communication E-Ink Display, Spec: Module Version
🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

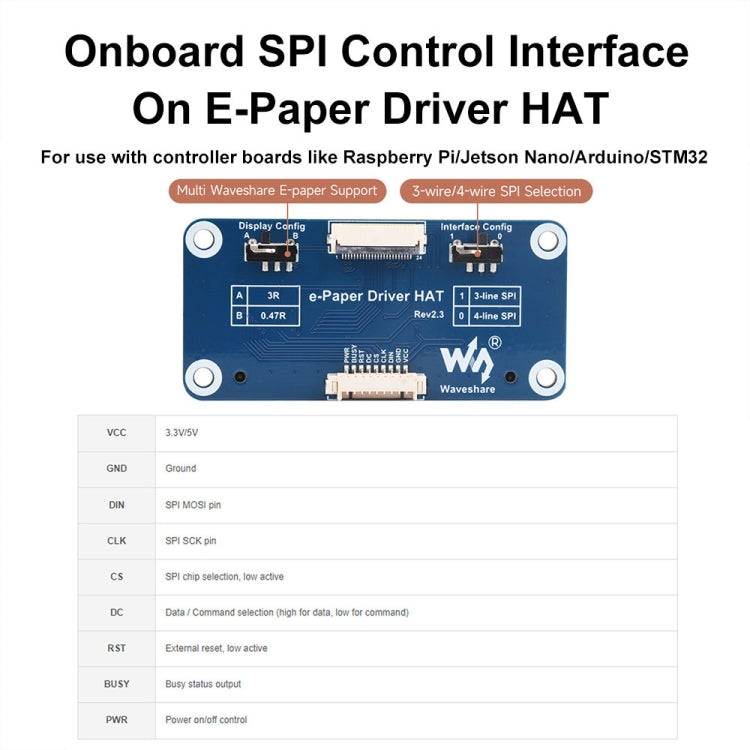

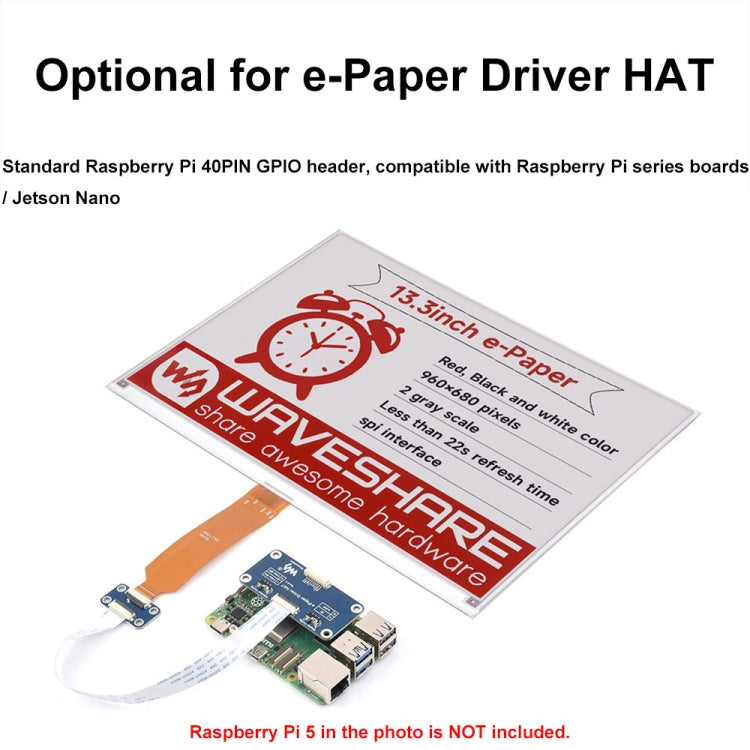

2. Reserved SPI control interface, can be connected to Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32 and other main control boards
3. Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
4. Module version working voltage: 3.3V/5V
5. Communication interface: 3-vire SPI, 4-wire SPI

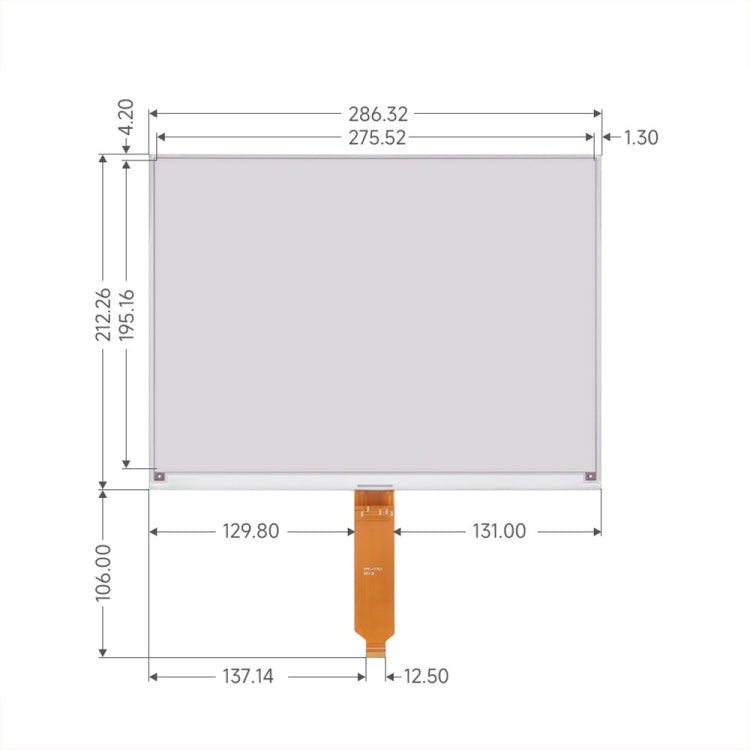

6. Screen size: 286.32 x 212.26 x 1.20mm
7. Display size: 275.52 x 195.16mm
8. Dot pitch: 0.287 x 0.287mm
9. Resolution: 960 x 680 pixels
10. Display color: red, black, white
11. Grayscale level: 2
12. Partial refresh: 2.9s
13. Global refresh: 22s
14. Refresh power consumption: 75mW
15. Sleep current: less than 0.01uA (close to 0)
16. Viewing angle: greater than 170 degrees
17. Application areas: for display applications such as shelf labels and industrial instruments
18. Weight: 164 grams

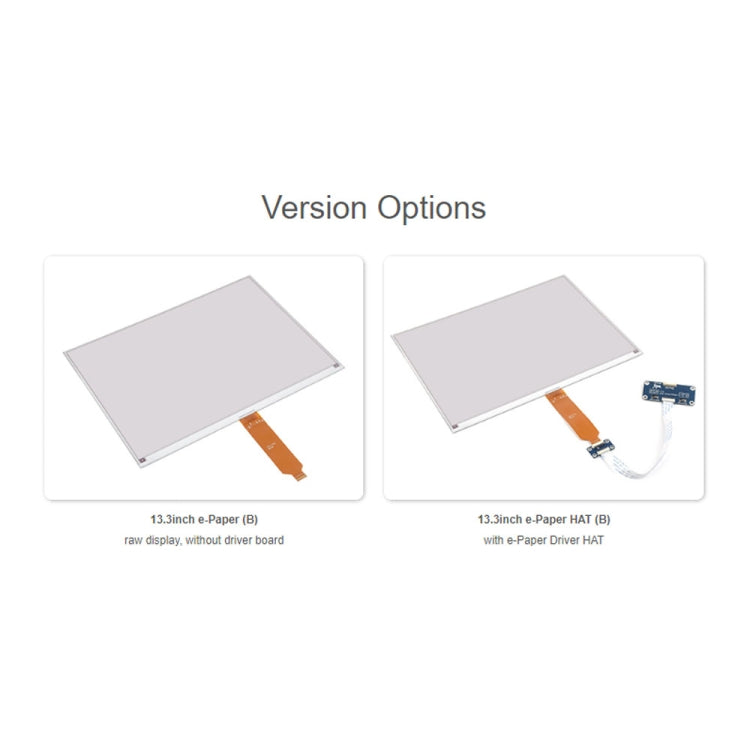

Packing list:
-Display x 1
-Driver board x 1
-Connecting wire x 1
-Copper column package x 1
