Description

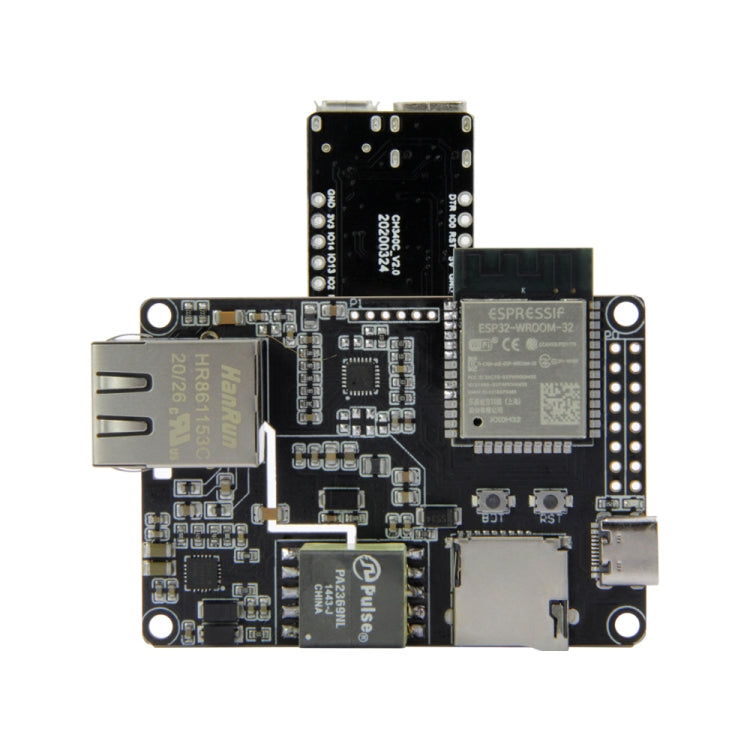

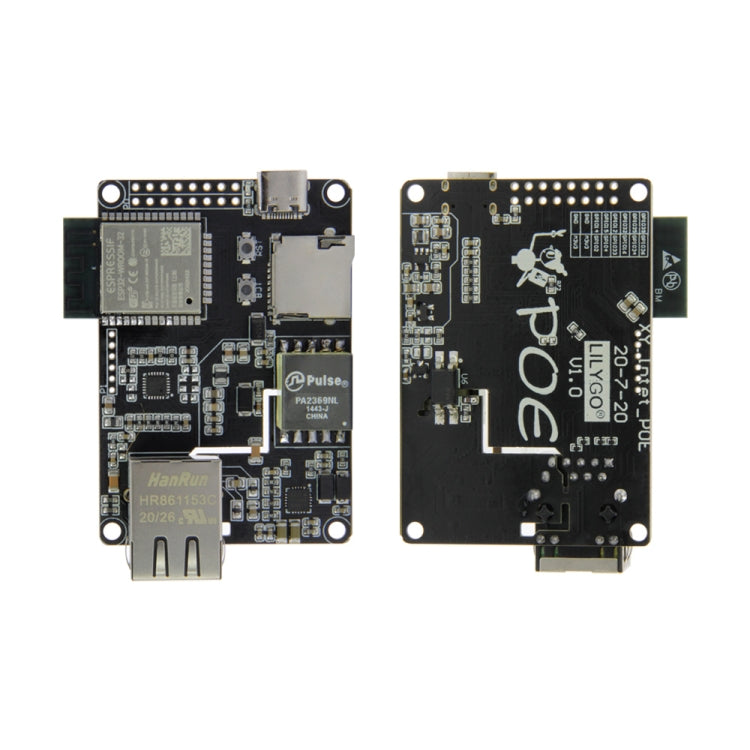

TTGO T-Internet-POE ESP3 Module is an Ethernet adapter extension board designed for IoT applications. It enables connectivity for devices requiring Ethernet and power over Ethernet (PoE) in various environments.
- Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip
- Flash memory: 4MB
- PSRAM: 8MB
- SRAM: 520 kB
- Buttons: robot, reset
- External devices: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface

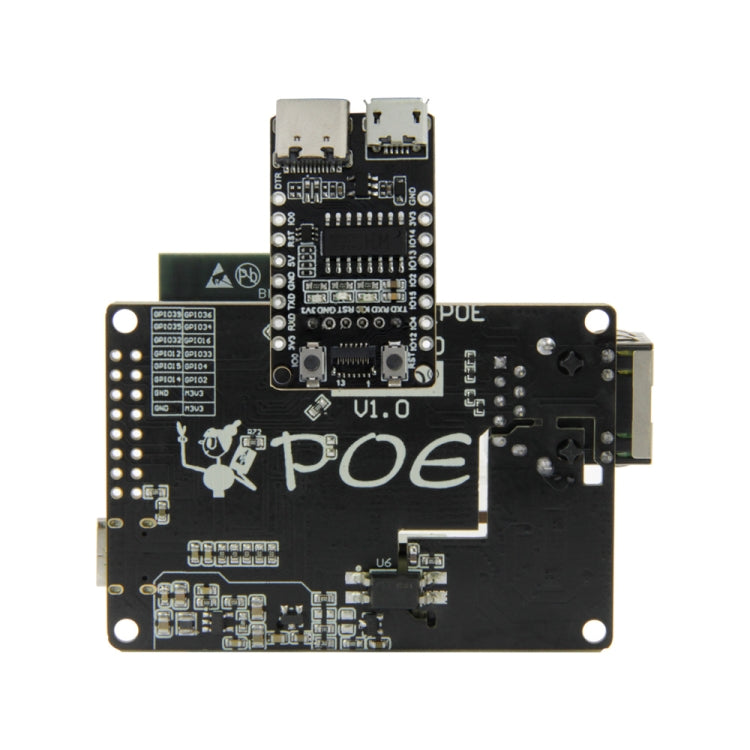

- USB to TTL: CP 2104

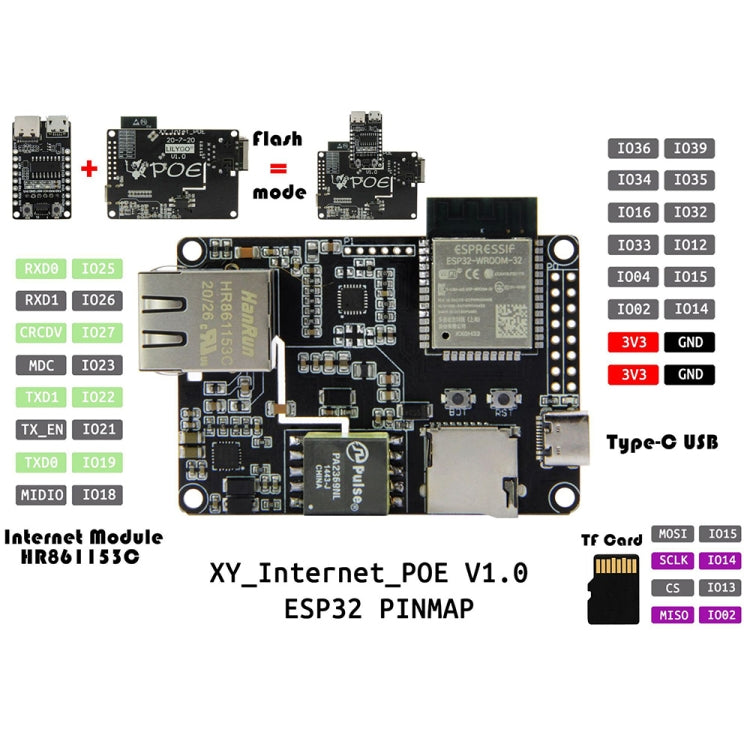

- Modular interfaces: SD card, UART, SPI, I2C, PWM, I2S, ADC
- Satellite clock: 32.768 MHz crystal oscillator
- Operating temperature range: -40°C to +85°C

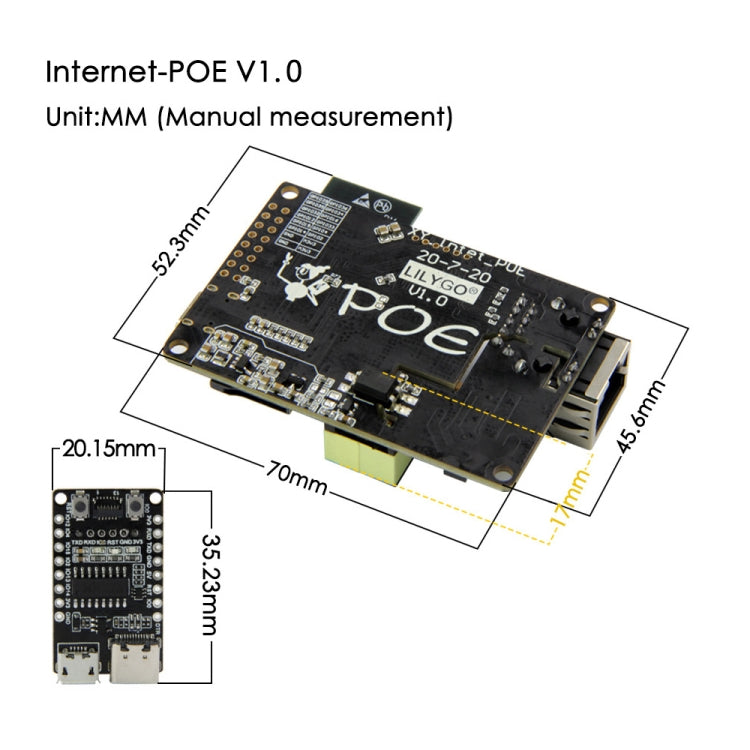

- Dimensions: 70 x 52.3 x 17 mm
- Weight: 26.85 g

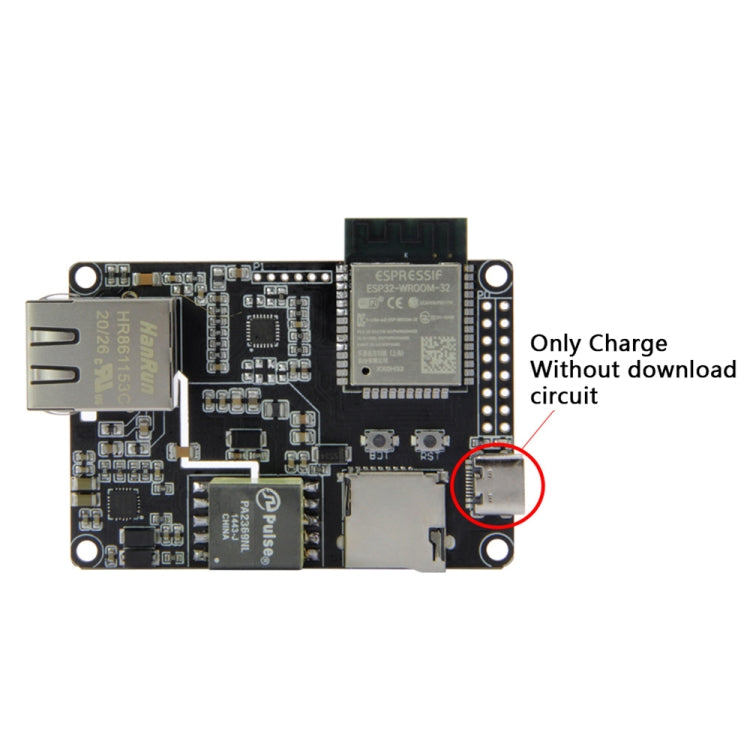

- Power input: C-type USB 5V
- HR861153C Ethernet-POE interface: 50V
- Working voltage: 2.7V-3.6V
- Output current: approximately 1.2A
- Charging current: 500 mA
- USB: Type C USB
- Wi-Fi standard: FCC/CE-Red/IC/TELEC/KCC/SRRC (ESP 32 chip)
- Wi-Fi protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps)
- Wi-Fi frequency range: 2.4GHz to 2.5GHz (2400 m to 2483.5M)
- Wi-Fi transmit power: 22 dBm
- Wi-Fi communication distance: 300 meters
- Bluetooth protocol: Bluetooth V4.2BR/EDR and BLE standards
- Bluetooth sensitivity: -97 dBm
- Bluetooth audio: CVSD & SBC audio
- Wi-Fi modes: workstation/SoftAP/SoftAP+Station/P2P
- Security mechanisms: WPA/WPA 2/WPA 2-Enterprise/WPS
- Encryption types: AES/RSA/ECC/SHA
- Firmware upgrade methods: UART download/OTA
- Software development support: cloud server development/sdk for user firmware development
- Network protocols: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- User configuration: instruction set, cloud server, Android/iOS app
- Operating system: FreeRTOS
