Description

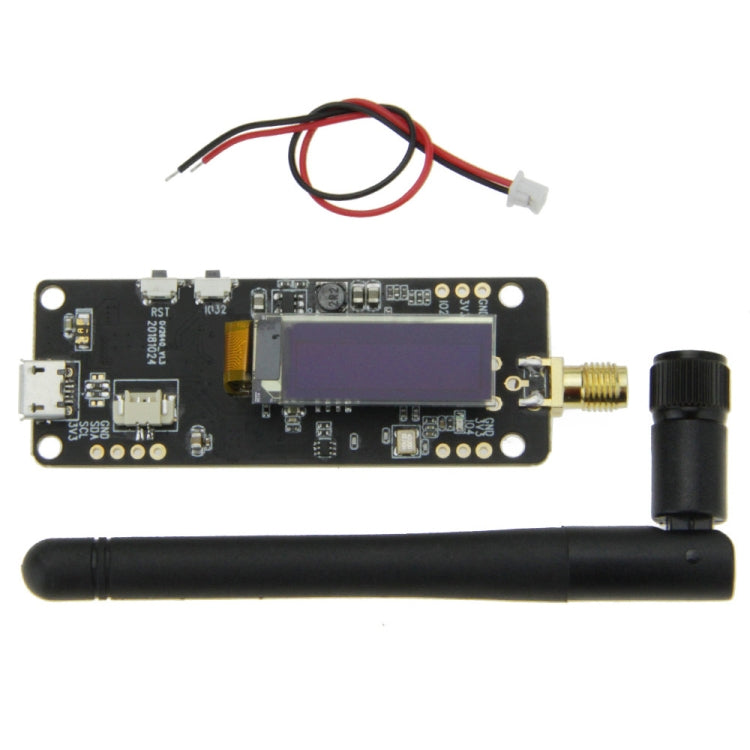

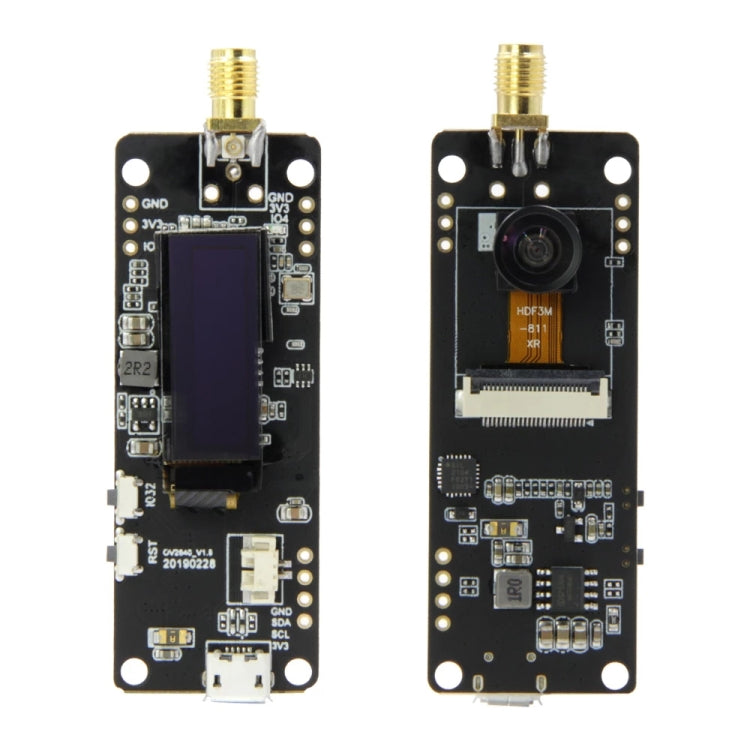

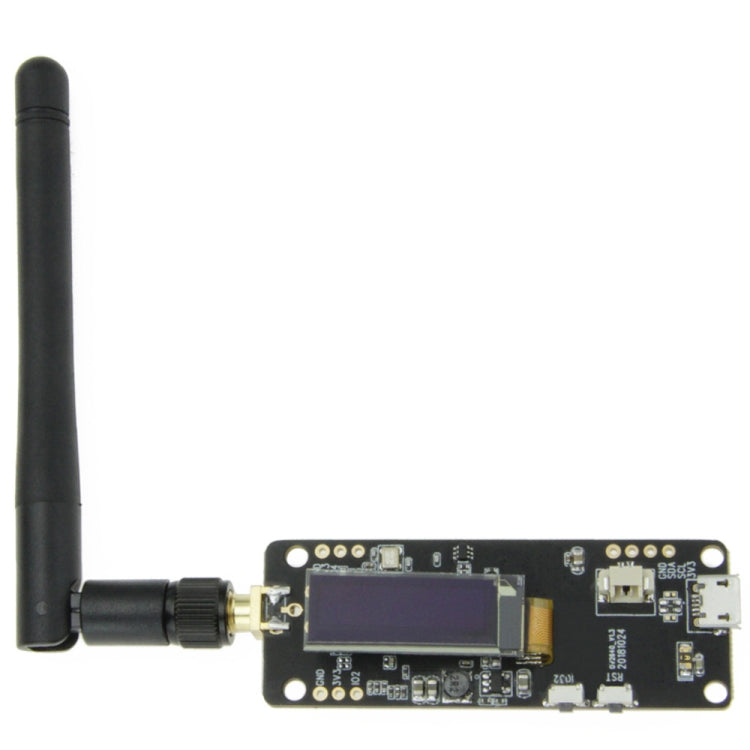

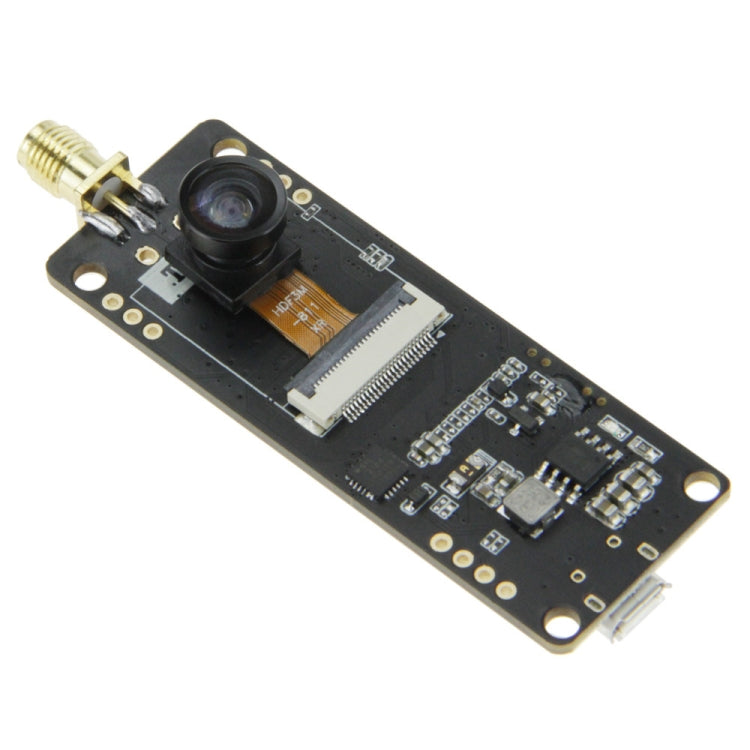

TTGO Fish-eye Lens Camera Module OV2640 is a development board designed for camera applications. It is suitable for projects requiring image capture and wireless connectivity.
- Chipset: ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
- FLASH: QSPI flash/SRAM, up to 4 x 16 MB
- SRAM: 520 kB SRAM
- Reset Key: IO32
- Display: 0.91 SSD1306
- Power Indicator Lamp: Red
- USB to TTL: CP2104

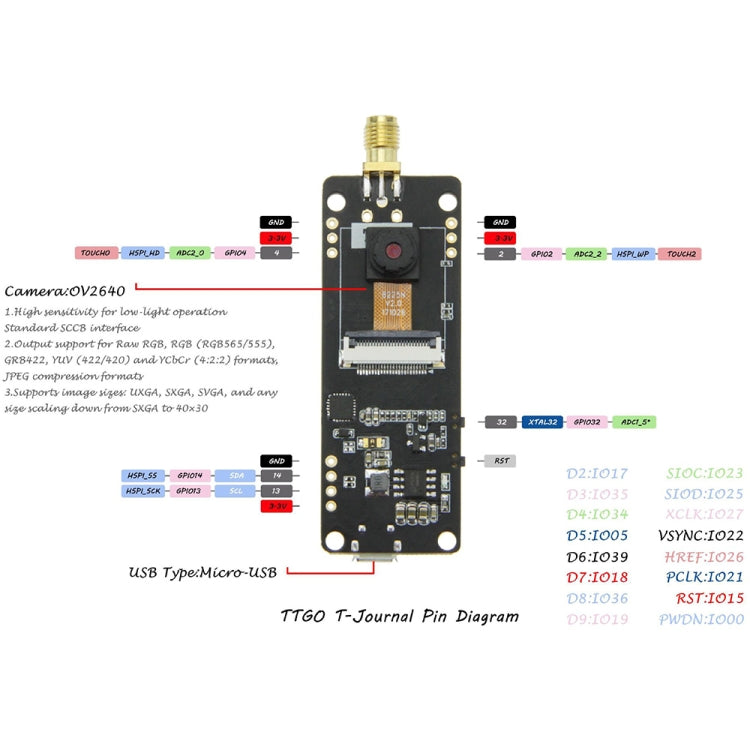

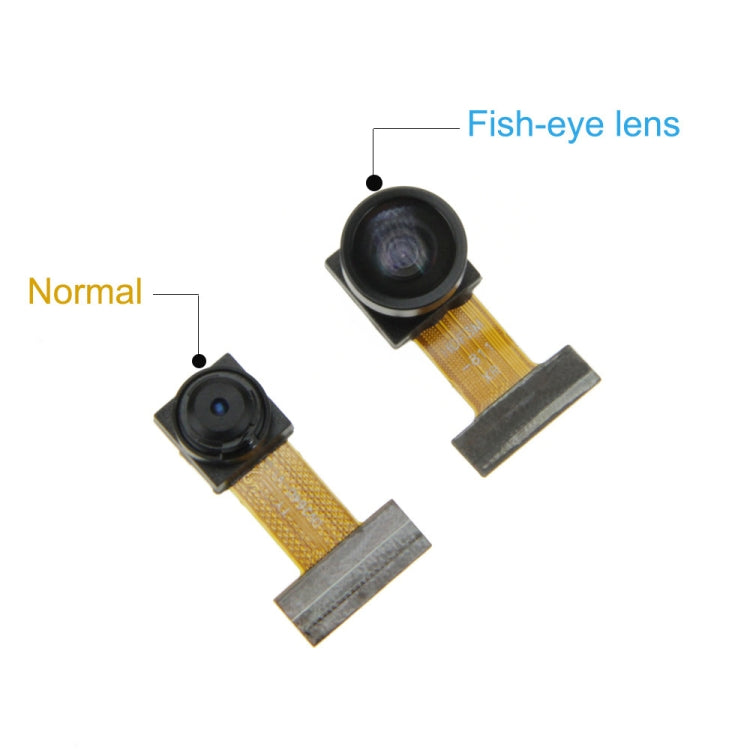

- Camera: OV2640 2.0 Megapixel
- Steering Engine: Analog servo
- On-board Clock: 40MHz crystal oscillator
- Working Voltage: 2.3V-3.6V
- Working Current: Approximately 160mA
- Working Temperature Range: -40°C to +85°C
- Size: 64.57mm x 23.98mm
- Power Supply: USB 5V/1A
- Charging Current: 1A
- Battery: 3.7V lithium battery (not included)
- WiFi Standard: FCC/CE/TELEC/KCC/SRRC/NCC (ESP32 chip)
- WiFi Protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150Mbps)
- WiFi Frequency Range: 2.4GHz to 2.5GHz (2400M to 2483.5M)
- WiFi Transmit Power: 22dBm
- WiFi Communication Distance: 300m
- Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE standard
- Bluetooth Radio Frequency: -98dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
- Audio Frequency: CVSD & SBC audio frequency
- WiFi Mode: Station/SoftAP/SoftAP+Station/P2P
- Security Mechanism: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware Upgrade: UART download/OTA
- Software Development: Support cloud server development / SDK for user firmware development
- Networking Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
- User Configuration: AT + Instruction set, cloud server, android/iOS app
- Operating System: FreeRT OS
