SINOTIMER TM630S-4 12V 30A Timer Switch 1 Second Interval Weekly Programmable Time Relay
SINOTIMER TM630S-4 12V 30A Timer Switch 1 Second Interval Weekly Programmable Time Relay
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 working days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders under R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. TM630S can automatically turn on and off various electrical equipment at preset times. It is widely used in 7-day programmable control of street lamps, neon lights (signs), lamps, water heaters, air conditioners, billboards, rice cookers, boosters, sprayers, bottlers, preheaters, agricultural facilities and broadcasting equipment, etc.
2. The digital timer switch has a built-in battery to save the program when the power is off. It has the characteristics of low power consumption, high precision of CMOS chip, strong anti-interference ability, simple and easy to set up, etc.
3. 5000 Watts/30 Amps, 1NO
4. 24 hours/7 days per week programmable

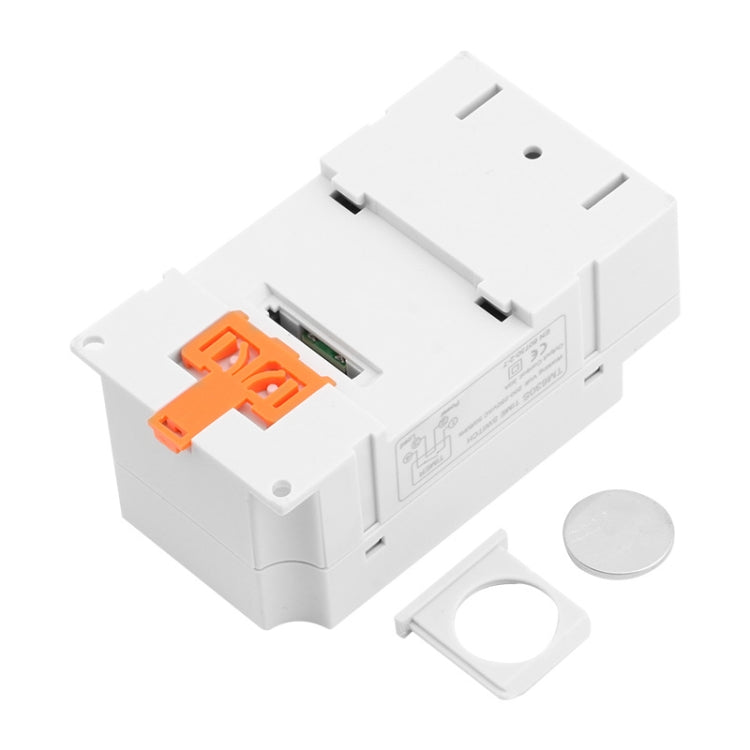

5. Internal battery to save memory in case of power failure
6. Automatic time error correction +/- 30 seconds per week
7. Repeating program with 28 on/off settings and manual on/off setting
Technical data:
1. Temperature range: -20 to 50 degrees Celsius
2. Power supply: 12V DC/AC
3. Power consumption: 4.5 VA (max)
4. Display: LCD
5. Switch contacts: 1 changeover switch
6. Program: 28 on/off per day or per week
7. Hysteresis: 2 seconds/day (25 degrees Celsius)
8. Minimum interval: 1 second
9. Capacity: 30A 250V AC
10. Power failure: 60 days
11. Timing range: 1 second~168 hours
12. Rechargeable battery: 3V
13. Average error: 1 second/24 hours, 25 degrees Celsius
