Description

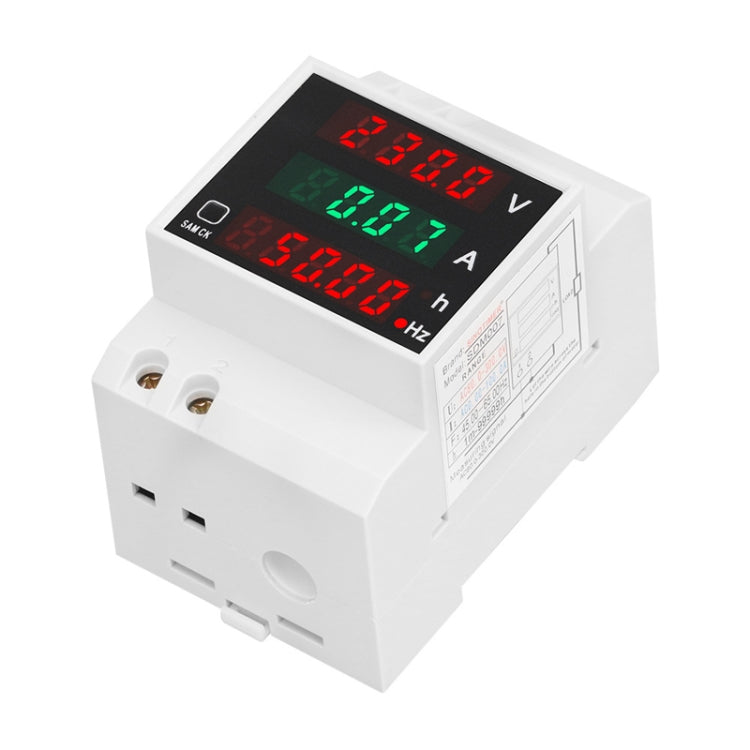

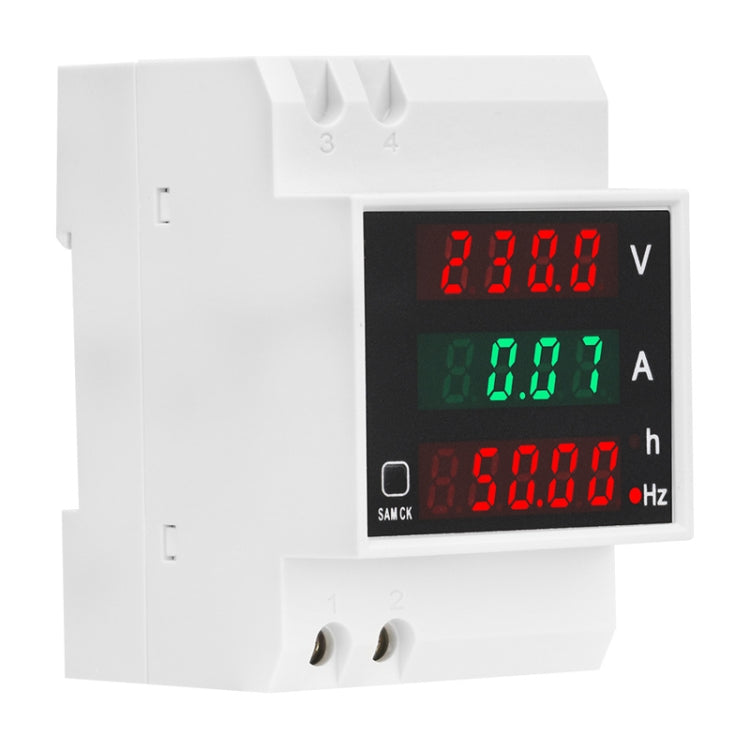

The SINOTIMER SDM007 is a digital display meter designed to measure AC voltage and current. It is suitable for everyday use in monitoring electrical parameters in various applications.
- Product Type: Current & Voltage Tester
- Measurement Accuracy: ±2% of the word

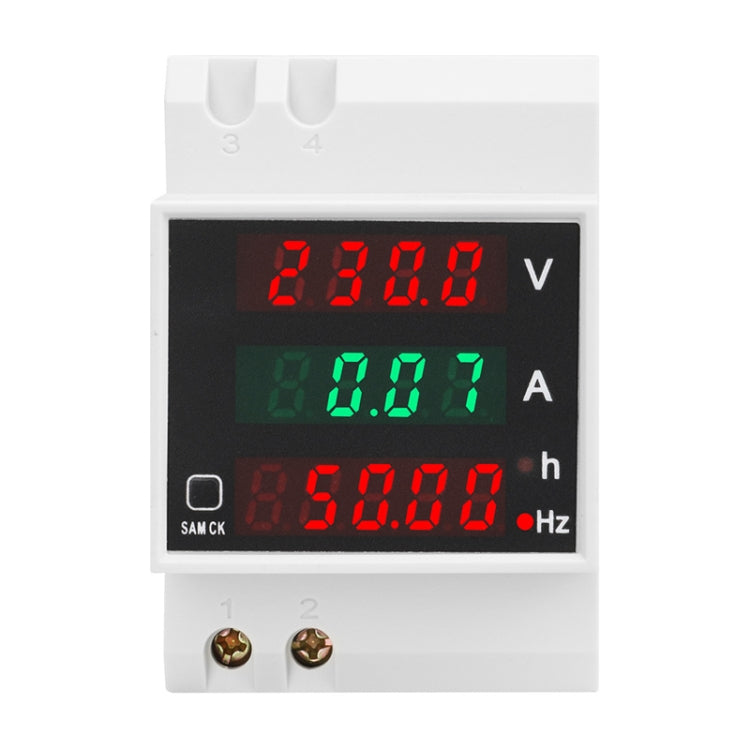

- Display: 0.32-inch LED digital tube
- Voltage Display: 4-bit red LED display
- Current Display: 4-bit green LED display
- Timing Display: 5-bit red LED display
- Measuring Range:
- Voltage: AC 80-300V
- Current: AC 0-100.0A
- Frequency: 45-65Hz
- Cumulative Timing: 1m-99999h
- Measuring Speed: Approximately 2 times/s

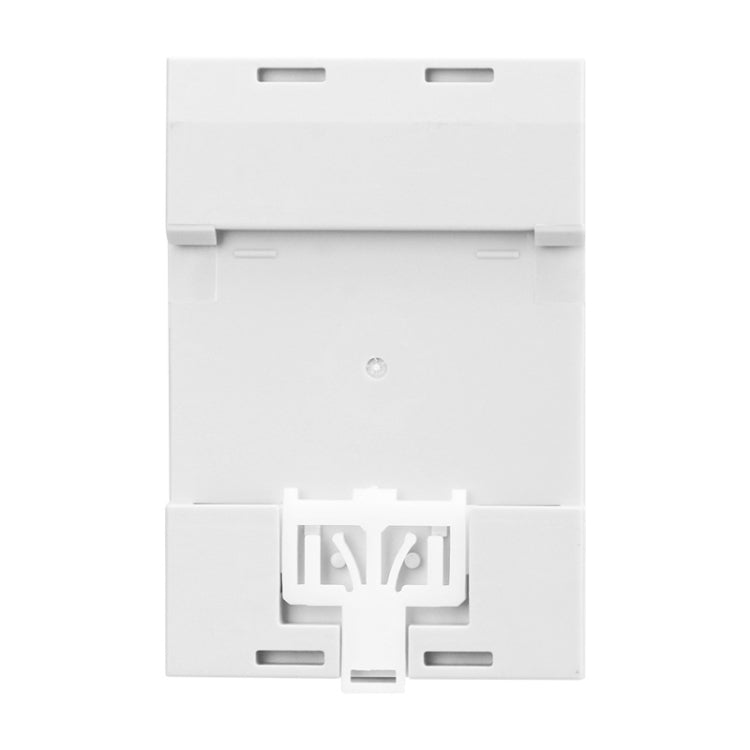

- Installation: Din-rail type, directly mounted on the same rail as the air switch
- Dimensions: 54 x 80 x 64 mm
- Usage Instructions:
- Connect measured voltage to terminals 1 and 2 at the lower left of the meter

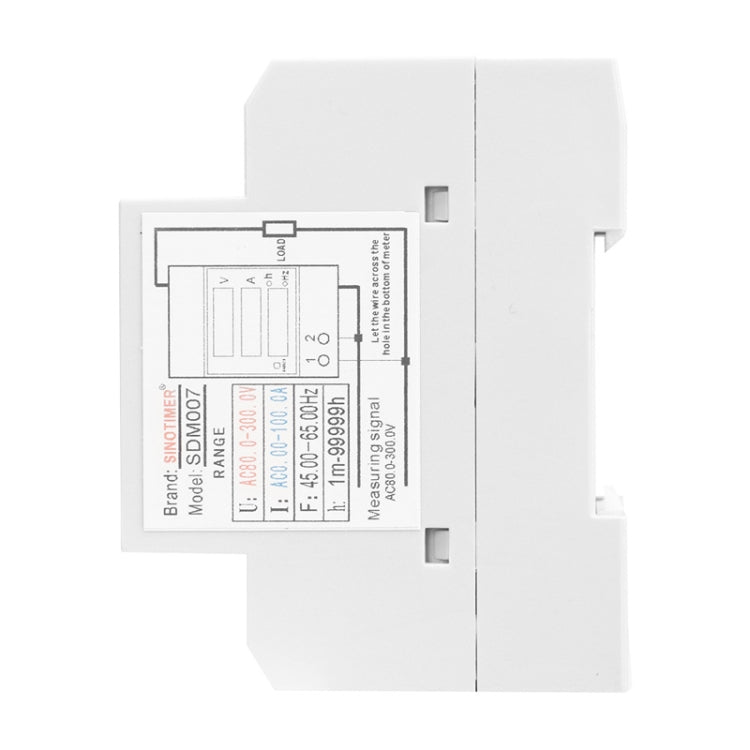

- Built-in transformer wiring according to provided diagram
- Display toggles between frequency and cumulative timing
- Reset cumulative timing by holding button for 5 seconds
- Note: Suitable only for pure AC 45-65Hz mains power supply; not for square wave or inverter output.
