FNIRSI

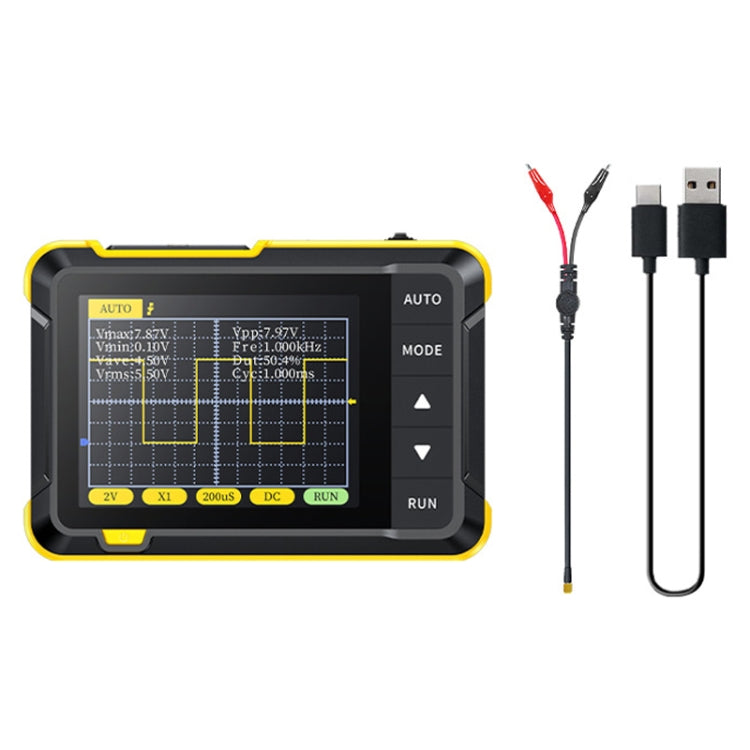

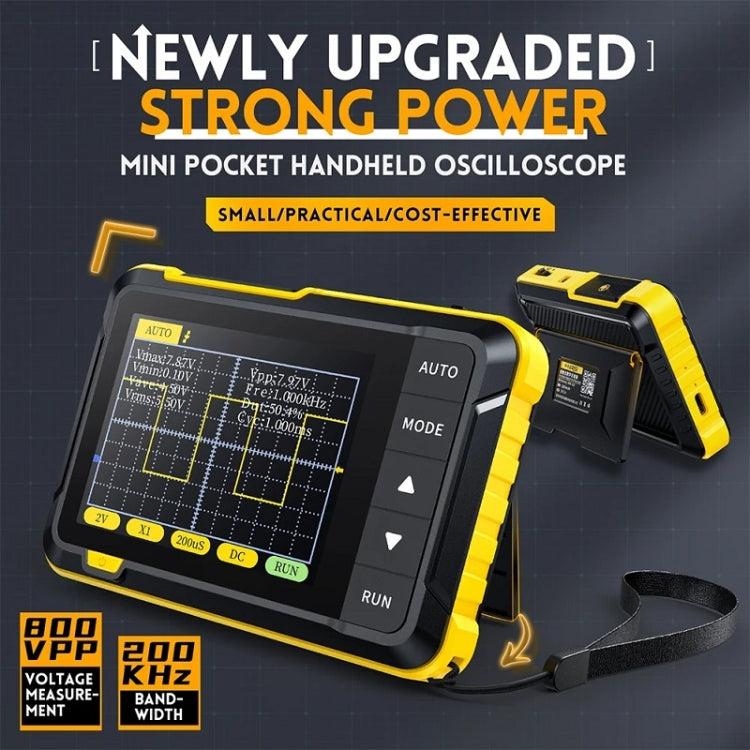

FNIRSI Handheld Small Digital Oscilloscope For Maintenance, Specification: Standard

Name: FNIRSI Handheld Small Digital Oscilloscope For Maintenance, Specification: Standard
Brand: FNIRSI
SKU: TBD0604562101
Price: 709.00 ZAR
Availability: InStock

R 709.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Sampling rate: 25Ms/s
2. Bandwidth: 200k
3. Vertical sensitivity: 10mv/div- 20v/dIV (1-2-5 gradual)
4. Time base range: 10μs/Div-50s/Div (1-2-5 increment)
5. Voltage range: X1: 40V (VPP: 80V), X10: 400V (PP: 800V)
6. Triggering method: automatic routine/single shot
7. Coupling method: AC/DC
8. Display: 2.8 inches/PPI: 320*240
9. USB charging: 5V/1A
10. Lithium battery capacity: 1000mAh
11. Calibration square wave: frequency 1K
12. Built-in large-capacity lithium battery for power supply, allowing you to work outdoors without site restrictions
13. Highly sensitive buttons, simple and easy to understand operating experience
14. Size: 99x68.3x19.5mm
15. Weight: 100g

Standard:
-152 Host x 1
- Type-C data cable x 1
- Common probe x 1
- Instructions x 1

Upgrades:
-152 Host x 1
- Type-C data cable x 1
- Common probe x 1
- P6100 High voltage probe x 1
- Adapter x 1
- Instructions x 1
