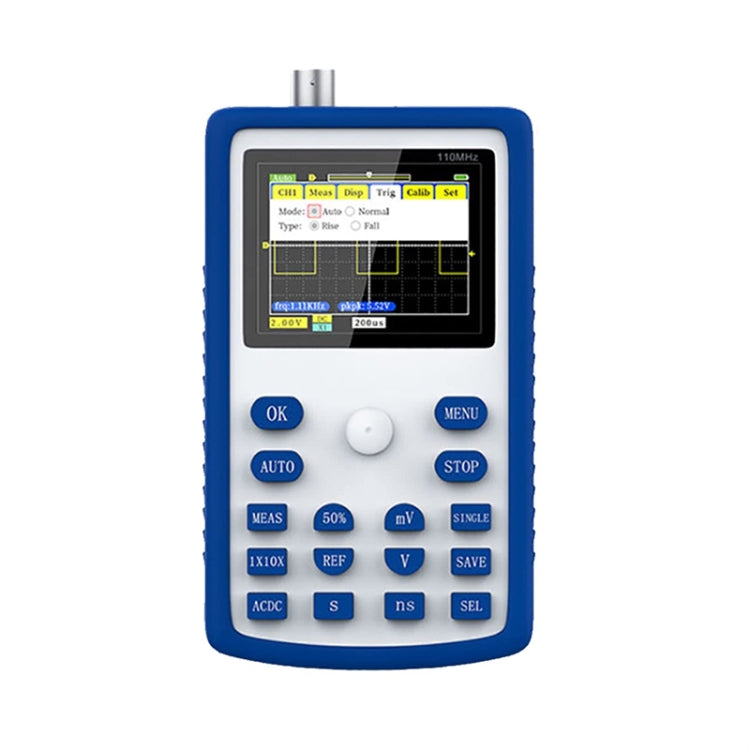

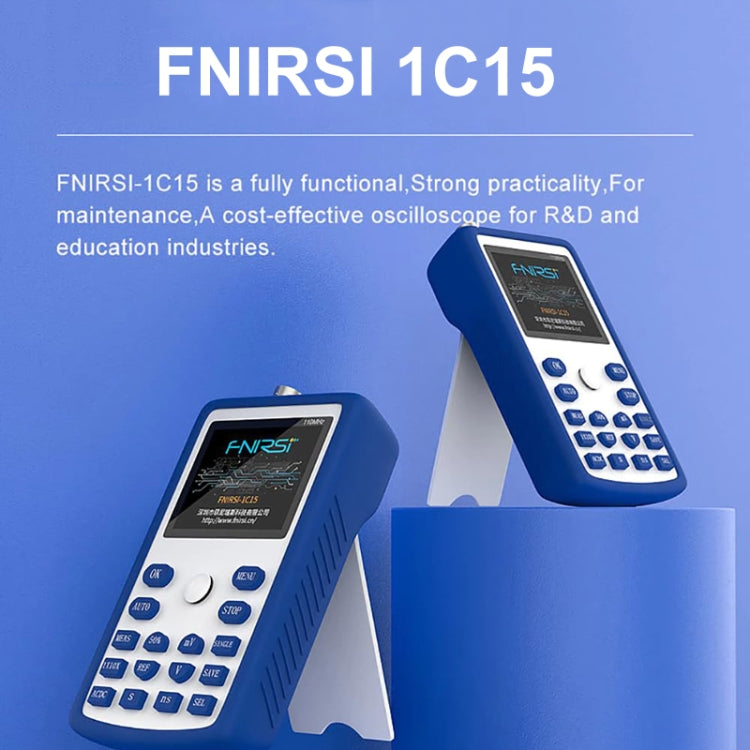

FNIRSI 1C15 Handheld Mini Portable Digital Oscilloscope With EU Plug

Name: FNIRSI 1C15 Handheld Mini Portable Digital Oscilloscope With EU Plug
Brand: FNIRSI
SKU: TBD0604844801
Price: 1809.00 ZAR
Availability: InStock

R 1,809.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Easy to use, with charging function, longer service life

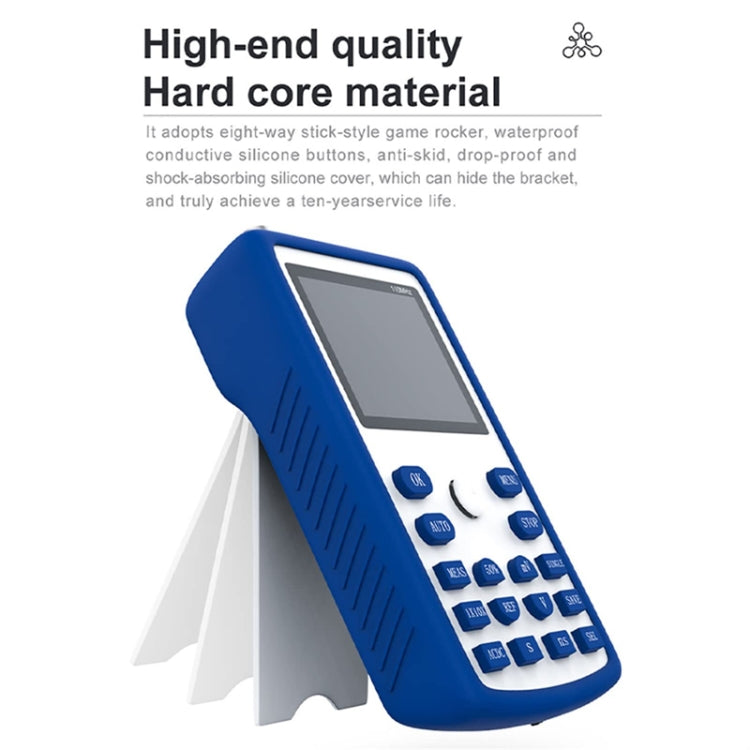

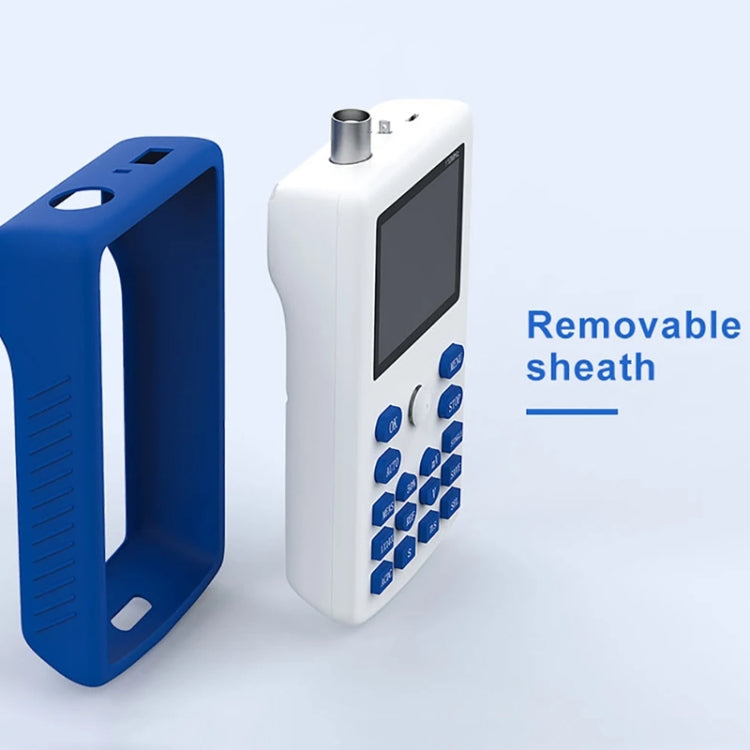

2. The body is made of high-quality silicone cover, non-slip and drop-proof
3. High-resolution LCD screen design, convenient for users to operate at night and daytime

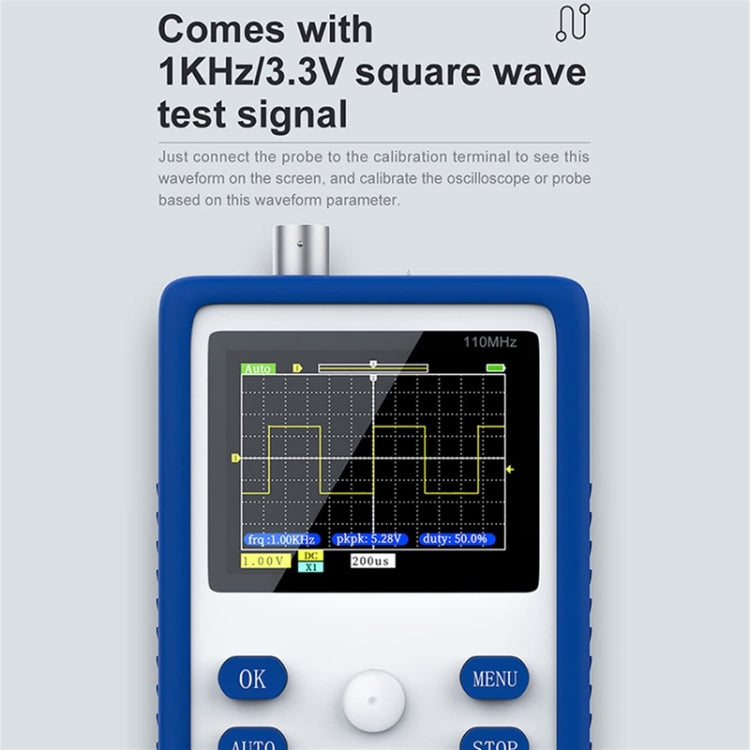

4. 1KHz/3.3V square wave test signal, just connect the probe to the calibration end to see the waveform on the screen
5. Can be hidden bracket design, easy to operate and observe the data
6. One-key automatic adjustment, press the Auto button, the oscilloscope will automatically measure the amplitude and frequency of the waveform, and automatically adjust the horizontal and vertical gears so that the waveform is displayed in the middle of the screen

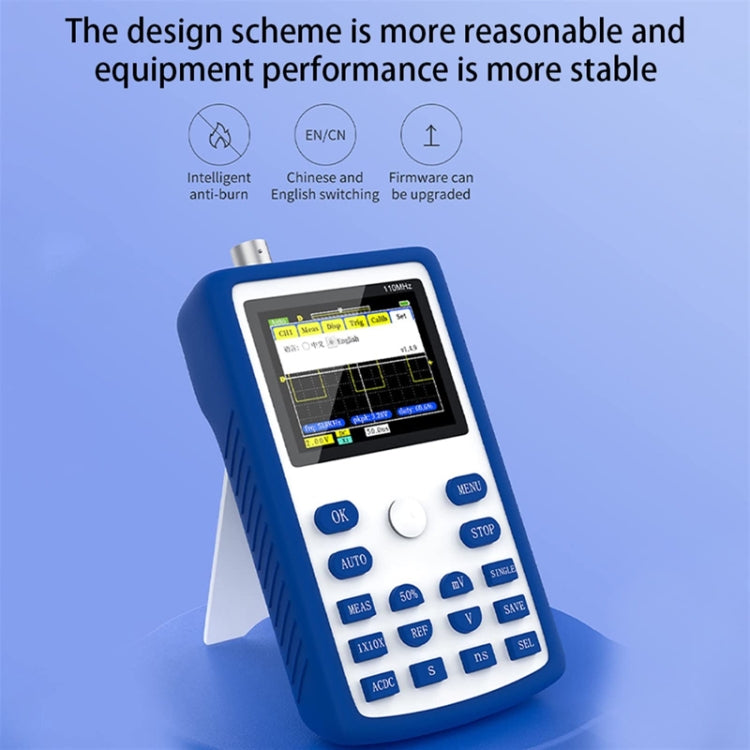

7. Reasonable design scheme makes the equipment performance more stable
8. Compact and exquisite, easy to carry around

Parameters:
1. Channel coupling: AC / DC
2. Time base range: 5ns-10s
3. Single trigger: support
4. Number of channels: 1
5. Vertical sensitivity: 20mV/div-100V/div
6. Operation mode: key + rocker
7. Screen size: 2.4 inches
8. Waveform measurement: 14 kinds
9. Screen resolution: 320 x 240
10. Measurement accuracy: +/-2 percent
11. Trigger type: rising edge/falling edge
12. Waveform analysis: support mopping/expanding

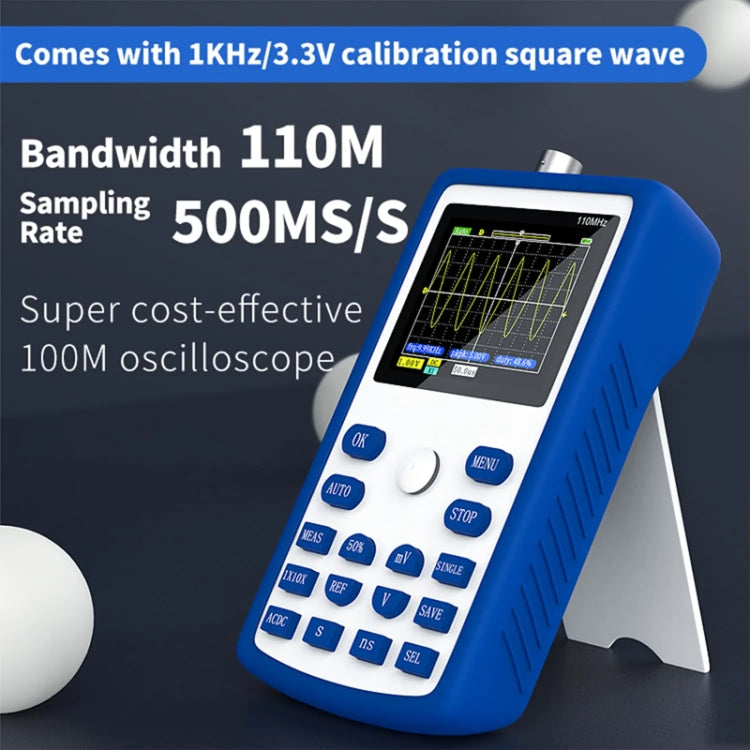

13. Analog bandwidth: 110M
14. Display Mode: YT/scrolling
15. Sampling rate: 500M
16. Afterglow time: None/1s
17. Rise time: less than 3ns
18. Storage depth: 12kpts
19. Charging mode: 5V/800mA
20. Battery capacity: 3000mAh
21. Voltage measurement range: x1 gear: +/-40V; x10 gear: +/-400V

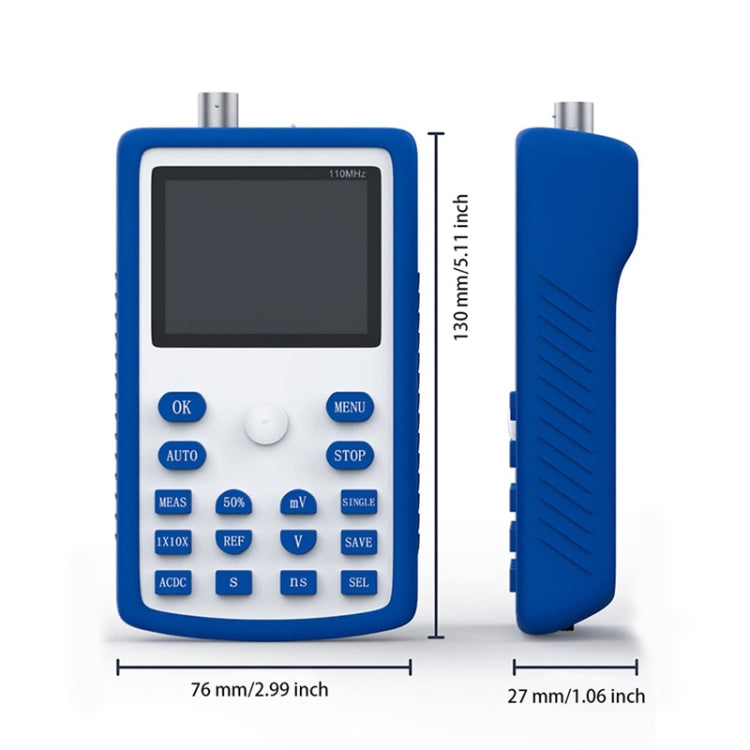

22. Size: 130 x 76 x 27mm

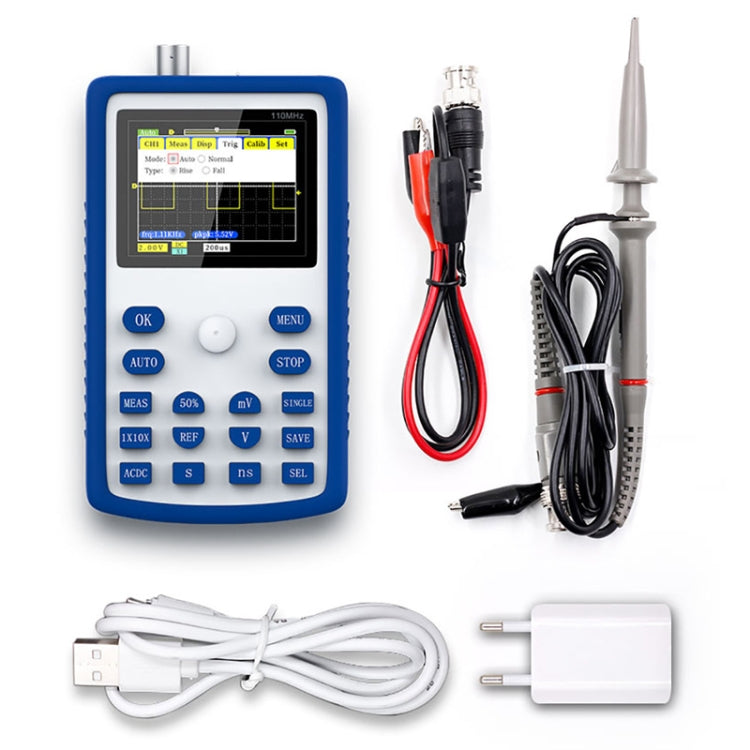

Accessories: high voltage probe / alligator clip probe / data cable / EU plug charger / instruction manual
