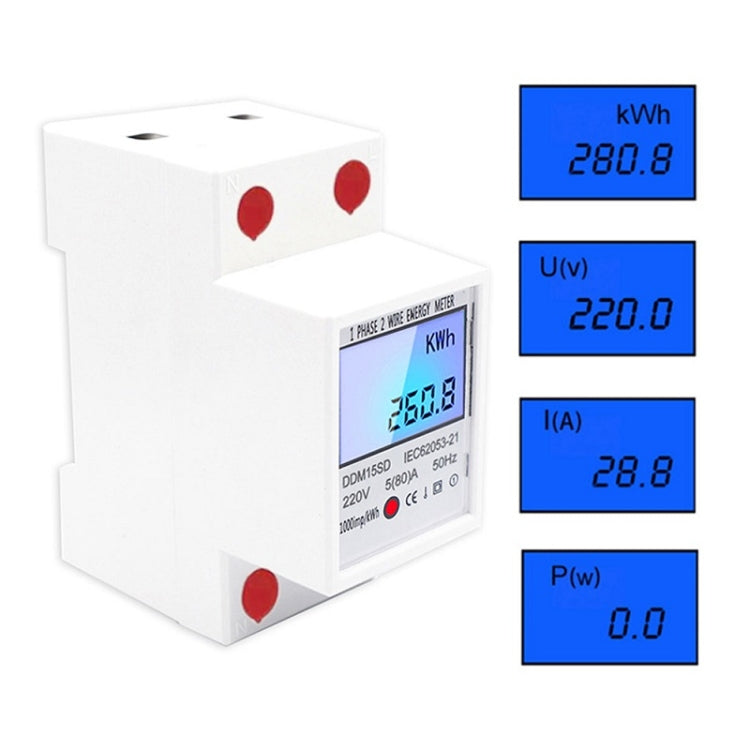

DDM15SD 10 (40) A Single-phase Multi-function Rail Meter with Backlight LCD Display

• Product type: Current & Voltage Tester
• Compatibility: DDM15SD 10 (40) A
• Material: Plastic
• Key feature: Accurate measurement of electrical energy
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Test Equipment

1. Material: plastic
2. Accuracy: Level 1
3. Voltage: 220V/230V, 50/60Hz
4. Insulation performance: 1min 4KV AC voltage, 1.2/50us 6KV waveform impulse voltage
5. Display: LCD backlight
6. Installation: 35mm DIN rail
7. Wiring mode: top out and bottom in / top in and bottom out
8. LCD backlight display, easy to read
9. Can display power, voltage, current, frequency, power
10. Recessed end caps ensure safe power supply
11. Accurate and reliable measurement of electrical energy
12. Good anti-electromagnetic interference and stable performance
13. 35mm DIN complies with DIN EN50022
14. 17.5mm wide, in line with DIN43880 standard
15. Weight: 0.069 grams
