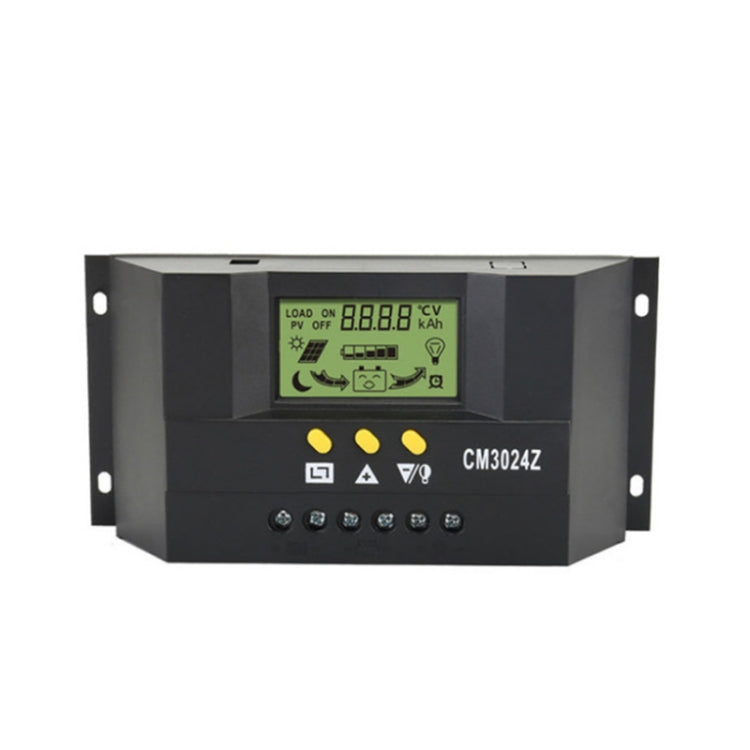

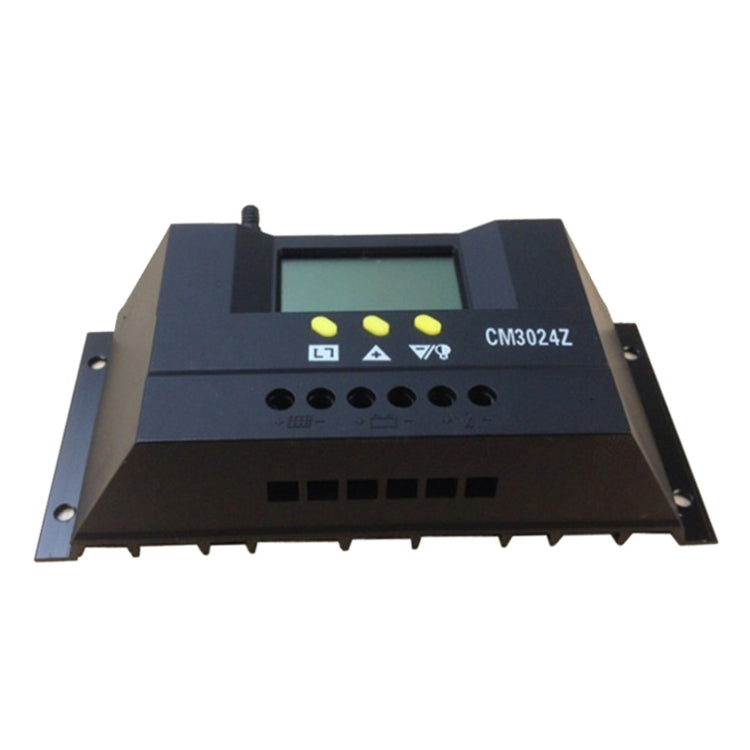

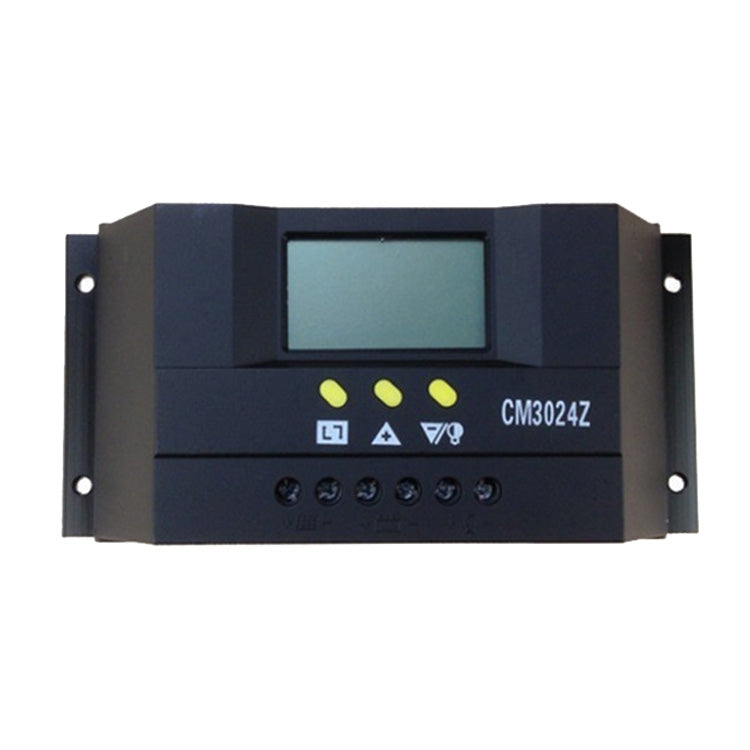

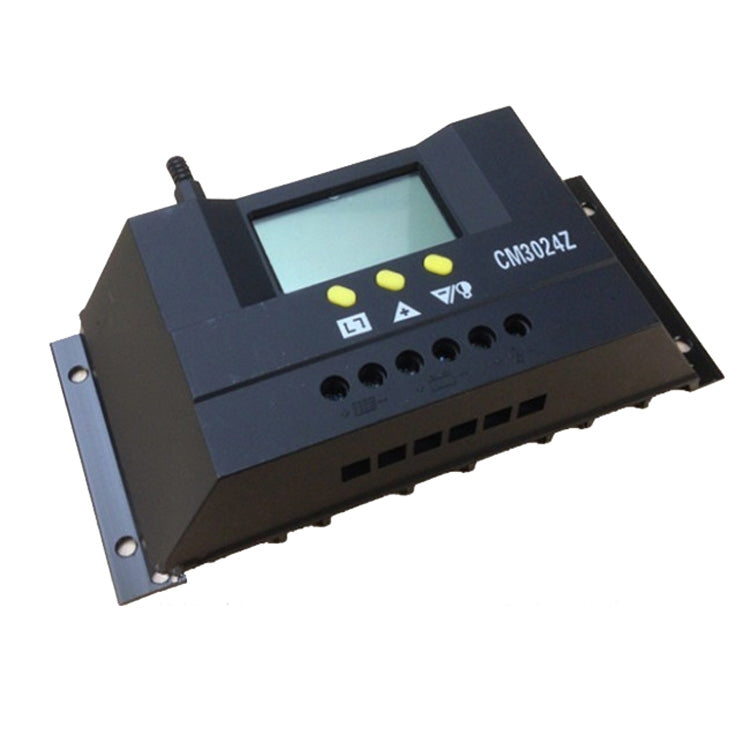

CM3024Z 12V24V 30A Solar Controller LCD Display Solar Charge Controller

Name: CM3024Z 12V24V 30A Solar Controller LCD Display Solar Charge Controller
Brand: PMC Jewellery
SKU: TBD05577827
Price: 579.00 ZAR
Availability: InStock

R 579.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

parameter:
1. Rated voltage: 12/24V lead-acid battery voltage
2. Maximum charge and discharge current: 30A
3. Solar panel input voltage range: maximum 18V-450W/36V-900W
4. Load working time setting: 1-24 hours adjustable
5. Charging mode: PWM
6. Overvoltage protection: 17V/34V
7. Fully disconnected: 13.7V/27.4V
8. Undervoltage disconnect: 10.5V/21V
9. Over-discharge recovery voltage: 12.2V/24.4V

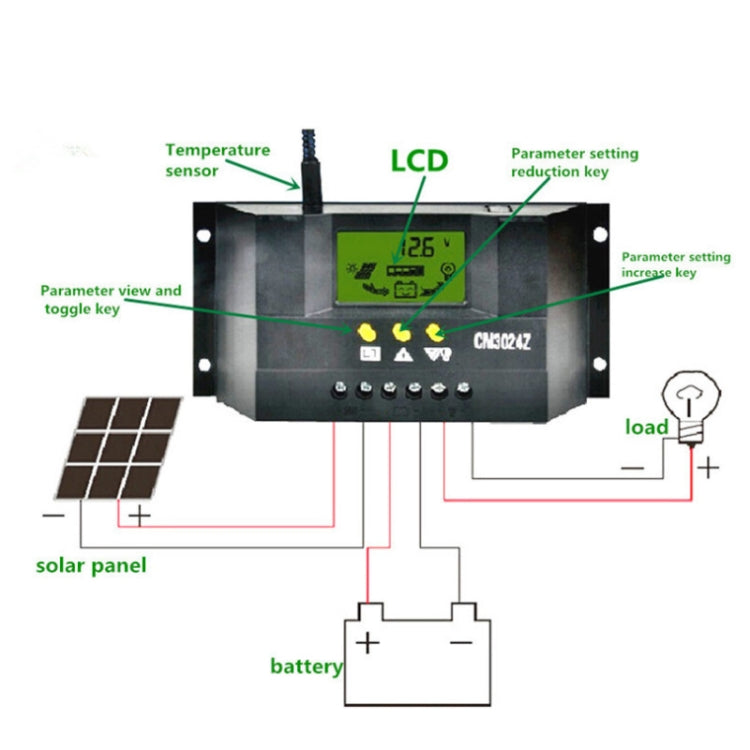

10. Wiring specifications: less than or equal to No. 7 AWG (16 square millimeters)
11. Working environment temperature: -25-55 degrees Celsius

Features:
1. Vivid LCD graphic symbols
2. Automatic recognition of system voltage level
3. Automatic temperature compensation
4. Settable load working mode
5. Battery undervoltage protection
6. Overload, short circuit protection
7. Simple key operation
8. Intelligent PWM charging method
9. Adjustable charge and discharge control parameters
10. Accumulation of charge and discharge ampere hours
11. Battery reverse discharge protection
12. Battery reverse connection protection
