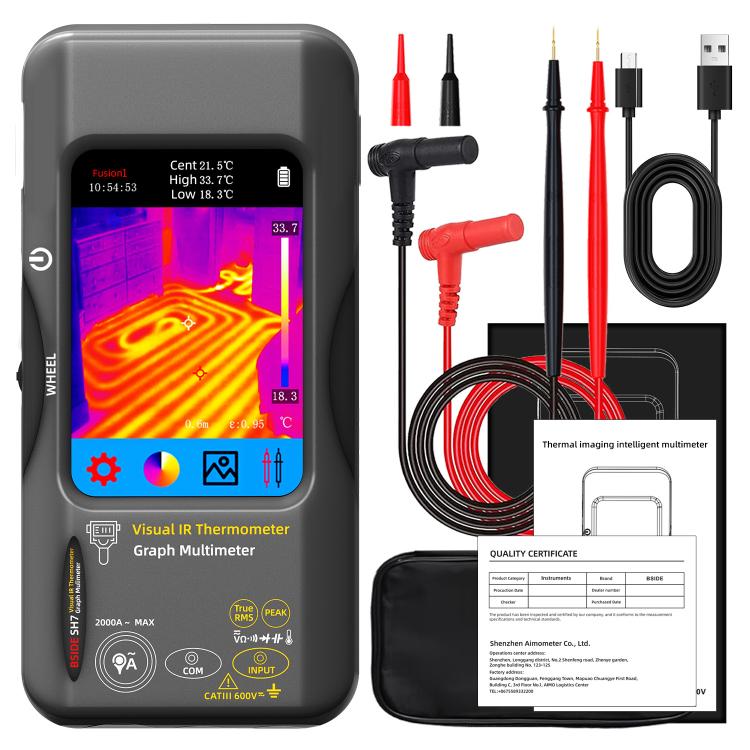

BSIDE SH7 Standard Thermal Imager Multimeter Handheld Touch Screen High Accuracy Thermometer

The BSIDE SH7 is a handheld thermal imager multimeter designed for accurate temperature measurement and thermal imaging. It is suitable for everyday use in various applications such as electrical inspections, HVAC diagnostics, and building maintenance.

• Product Type: Thermostat & Thermometer
• Brand: BSIDE
• Compatibility: BSIDE SH7
• Material: Silicone housing
• Thermal Image Resolution: 240 x 240 pixels
• Temperature Alarm: Screen font color alarm
• Number of Image Files: 30,000
• Save Image Format: BMP
• Interface: Type-C
• Imaging Mode: Thermal imaging
• Image Storage: Built-in memory card
• Battery Capacity: 2500mAh
• Charging Time: Approximately 3 hours
• Use Time: Approximately 7 hours
• Display Resolution: 320 x 480
• Temperature Measurement Focal Length: Adjustable from 0.3 to 3 meters
• Temperature Measurement Range: -20 to 550 degrees Celsius
• Emissivity: Adjustable from 0.01 to 1.00
• Temperature Measurement Resolution: 0.1 degrees Celsius
• Temperature Measurement Unit: Celsius, Fahrenheit, Kelvin
• Temperature Measurement Display: Center point temperature measurement, high and low temperature tracking
• Spatial Resolution: 8.89 mrad
• Frame Rate: 25Hz
• Imaging Lens Focal Length: 1.35 mm
• Field of View: 50 degrees
• Display: 3.98-inch TFT LCD screen with capacitive touch
• Functions: Data statistics, adjustable backlight brightness, low battery prompt, automatic shutdown
• Color Palette: White hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue
• Size: Approximately 16.9 x 8.1 x 2.68 cm
• Weight: Approximately 270.7 g
• Standard Packaging List: Multimeter x 1, USB data cable x 1, Manual x 1, Packing box x 1, Test pens x 2, Pen caps x 2
