Description
The BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter is a versatile testing device that combines the functions of an oscilloscope and a multimeter. It is suitable for measuring various electrical parameters in both professional and educational settings, such as voltage, current, resistance, and temperature.
- Measurement range:
- DC voltage: 1000V
- DC voltage (mV): 200mV
- AC voltage: 750V
- AC voltage (mV): 200mV
- DC/AC current (mA): 200mA
- AC current (A): 2000A (flexible coil required)
- Resistance: 200mOhm
- Capacitance: 99.999mF
- Temperature: -20 to 1000 degrees Celsius / -4 to 1832 degrees Fahrenheit
- Resolution:
- DC/AC voltage: 0.001V
- DC voltage (mV): 0.01mV
- AC voltage (mV): 0.001mV
- DC/AC current (mA): 0.01mA
- AC current (A): 0.1A
- Resistance: 0.001 mOhm
- Capacitance: 0.001F
- Temperature: 1 degree Celsius / Fahrenheit
- Functions:
- Diode test
- On-off test
- True RMS measurement
- Screen backlight
- Low battery indication
- Automatic shutdown
- Battery capacity:
- 5000mAh lithium battery (built-in)
- Oscilloscope specifications:
- Bandwidth: 50MHz
- Sampling mode: real-time sampling
- Real-time sampling rate: 250MSa/s
- Number of channels: 2
- Display mode: YT, XY, scrolling
- Waveform output types: sine wave, square wave, triangle wave, half wave, full wave, sawtooth wave, DC
- Frequency range: 0Hz - 2MHz
- Output channel: 110
- Output amplitude: 0.1V - 3.0V
- Minimum resolution: 1Hz
- Square wave duty cycle: 1% - 99%
- Features:
- Bilingual display (Chinese and English)
- 3.98-inch TFT large color display

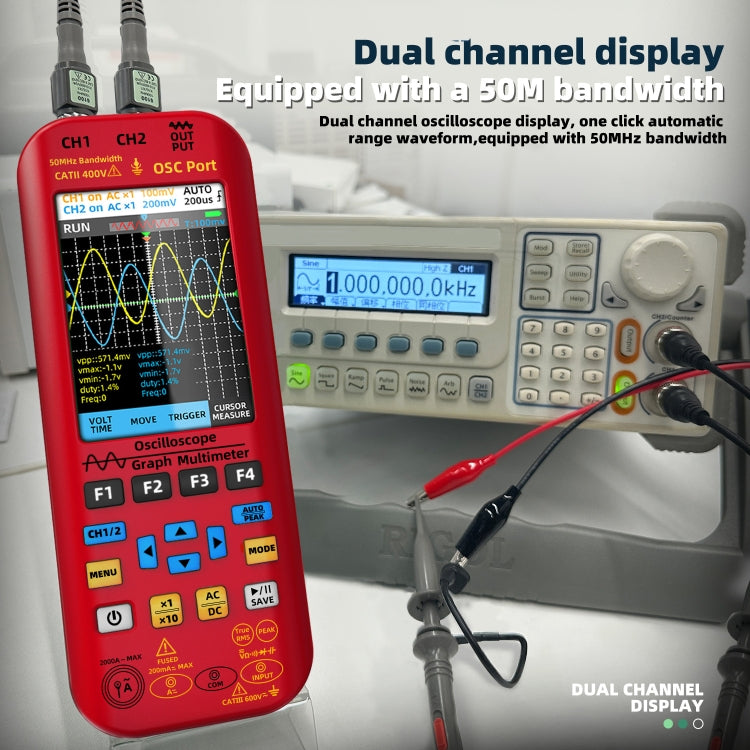

- Dual-channel operation with isolated channels

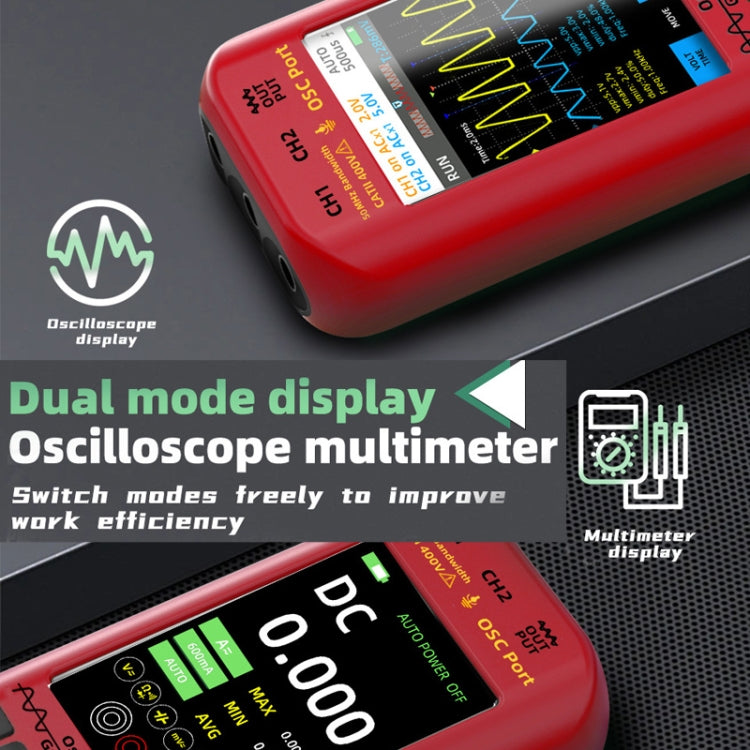

- Dual-mode display (oscilloscope/multimeter)

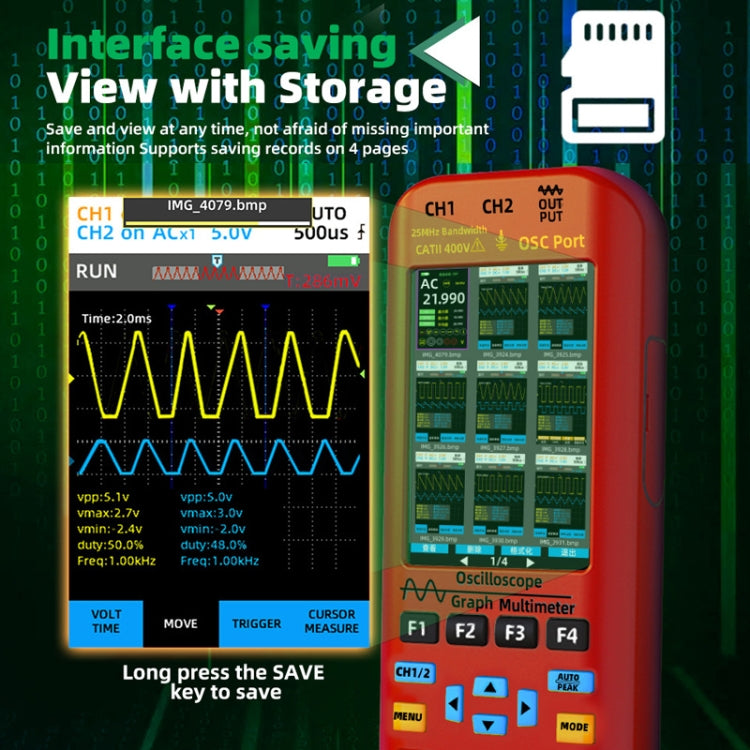

- Supports 36 saved records

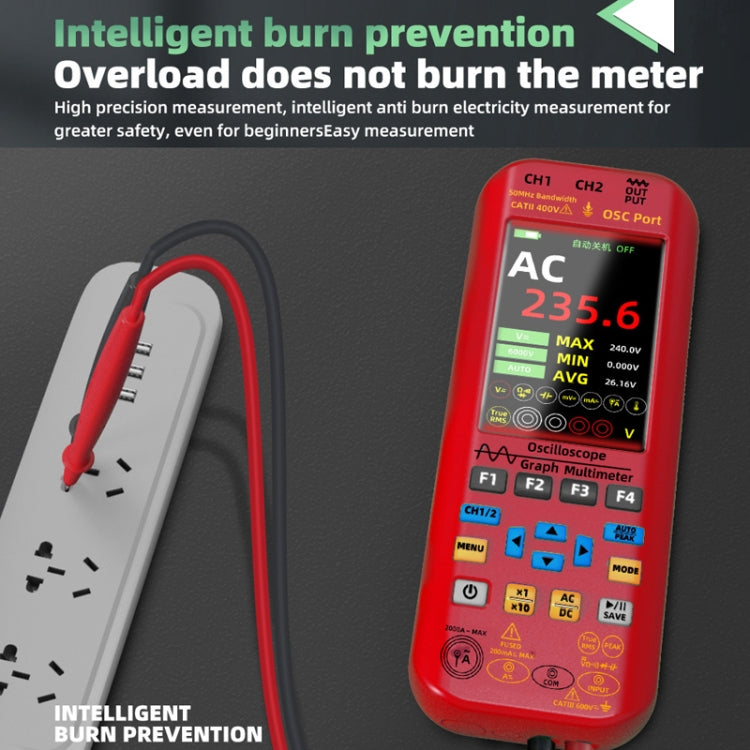

- Intelligent anti-burning feature

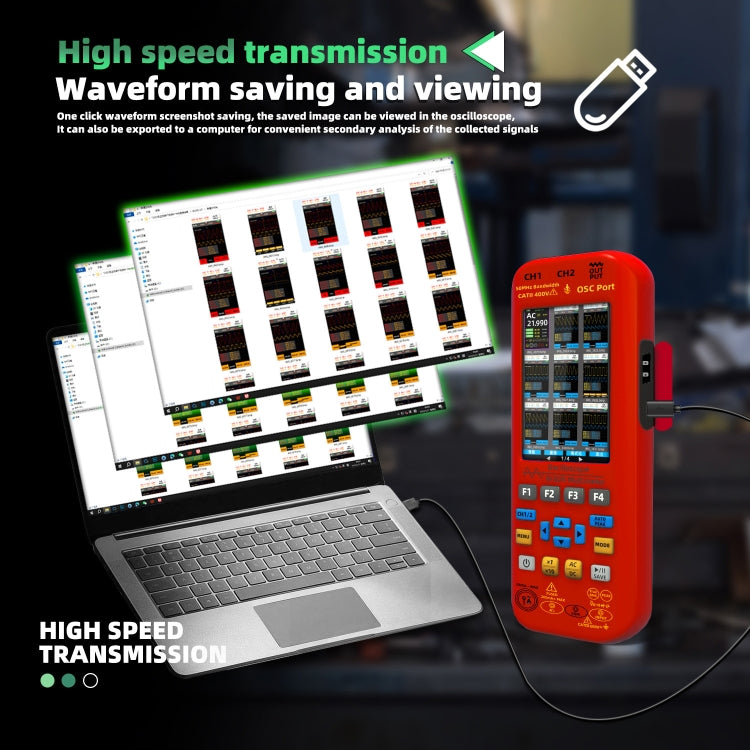

- One-key waveform screenshot save

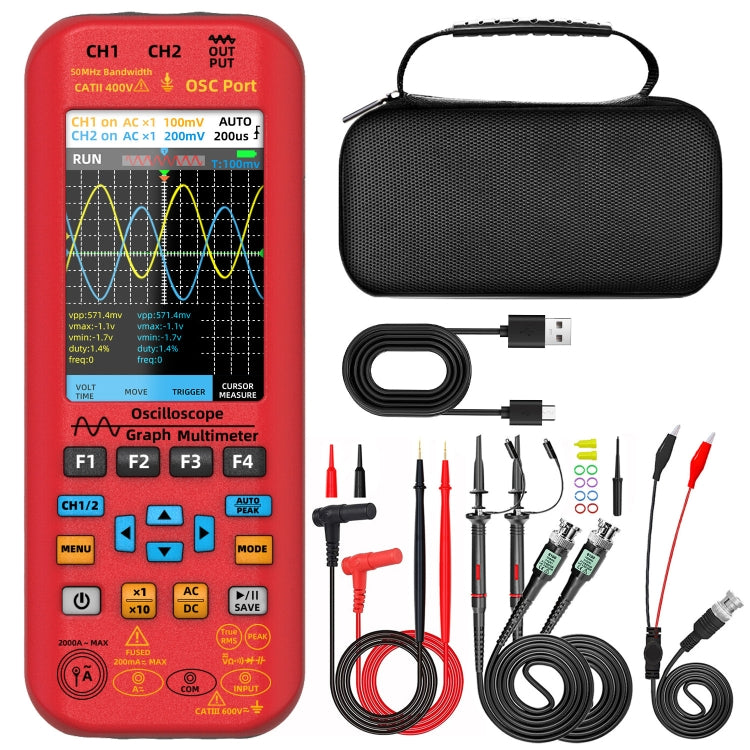

- Packing list:
- Dual-channel oscilloscope multimeter
- 10X oscilloscope probe
- Oscilloscope accessories
- Meter pen
- Red and black crocodile clip probe
- Storage bag
- Instructions
- Charging cable
