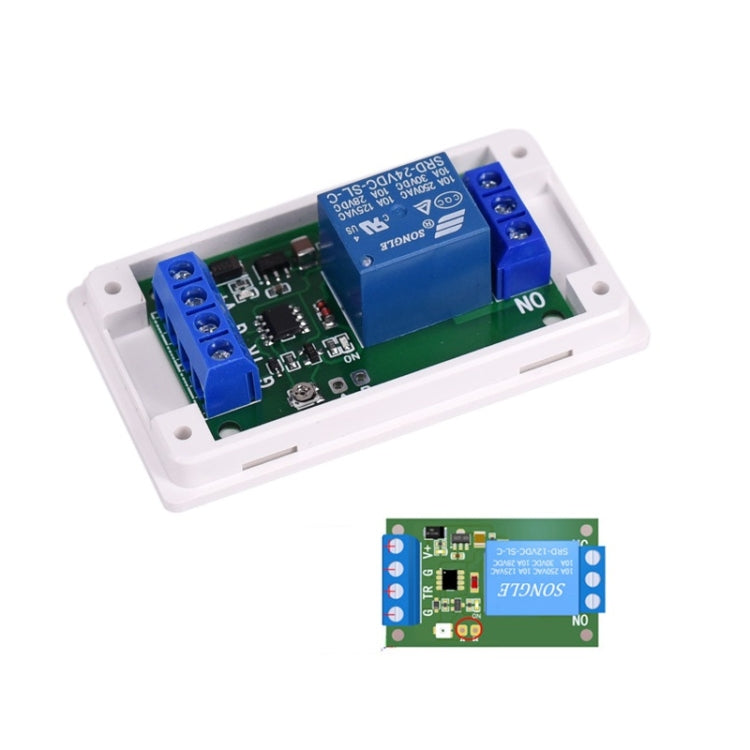

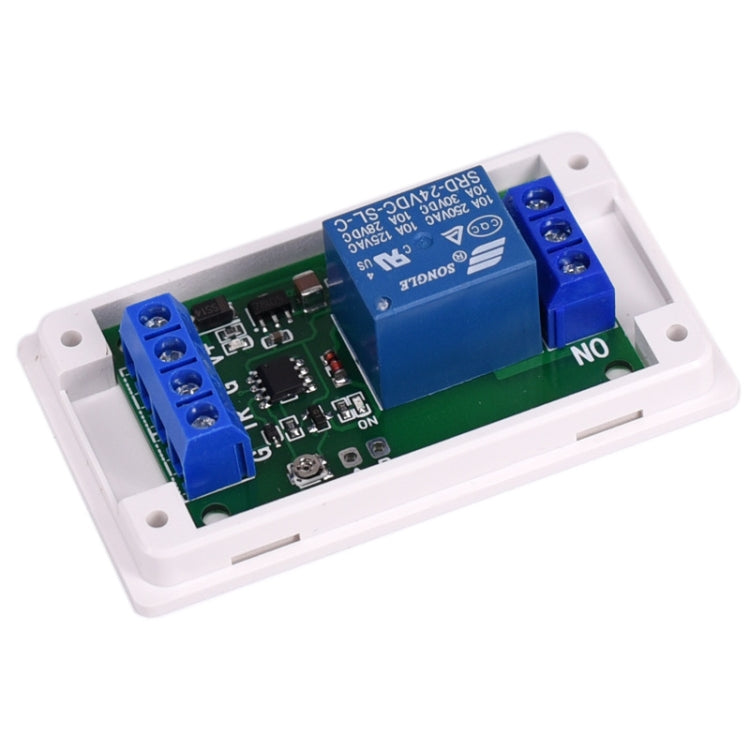

12V Protected Start Delay Relay Module

Name: 12V Protected Start Delay Relay Module
Brand: PMC Jewellery
SKU: TBD06031656
Price: 239.00 ZAR
Availability: InStock

R 239.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Power supply current: 10A
2. Power supply voltage: 12v
3. Use: Time delay

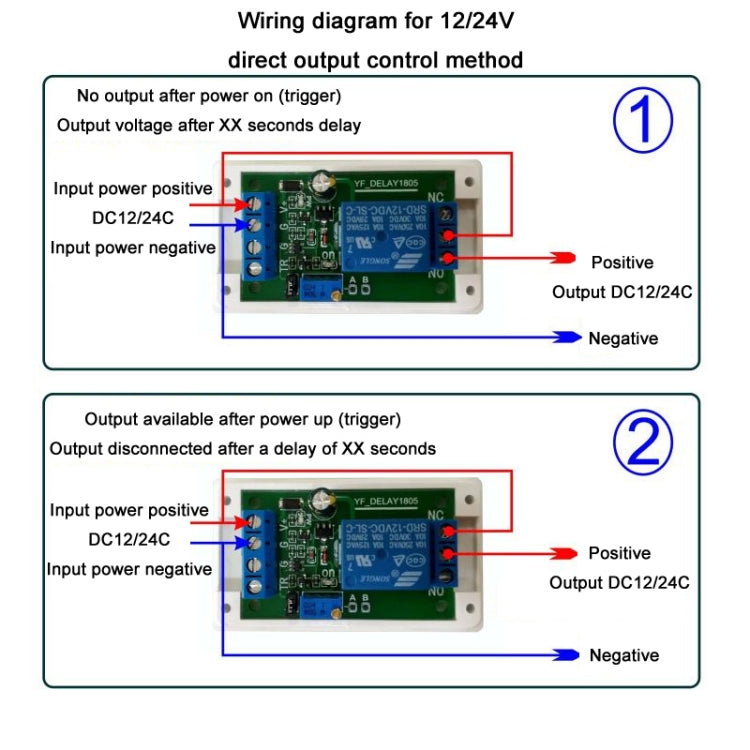

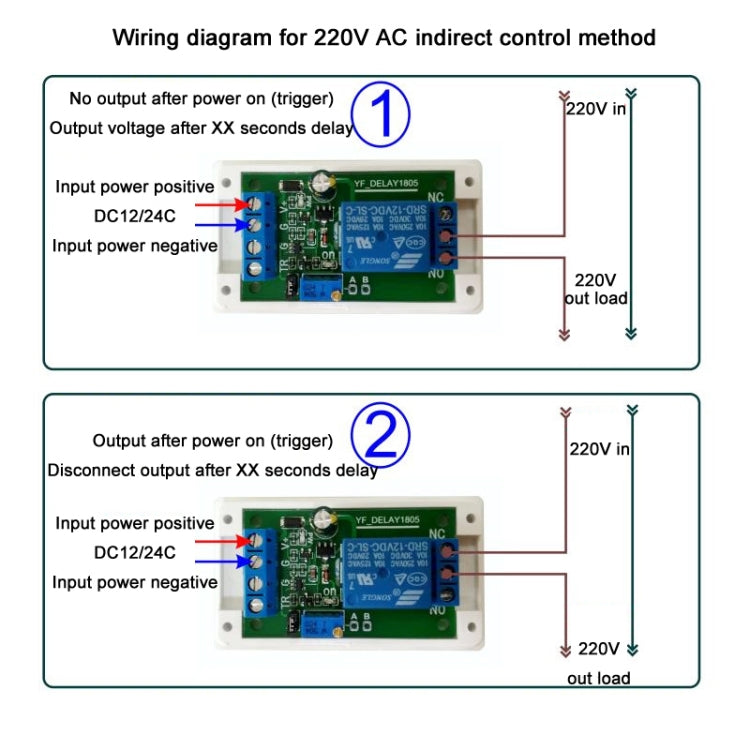

4. Module to achieve a certain time delay after power on and then output voltage / or off output
5. Delay time 1~120 seconds adjustable, can be used for car recorder delay on, faucet after the water delay off and other applications
6. With power supply reverse protection, reverse connection will not burn
7. With repeat trigger button interface, can be connected to a button to achieve re-trigger the delay time, without the need to re-power

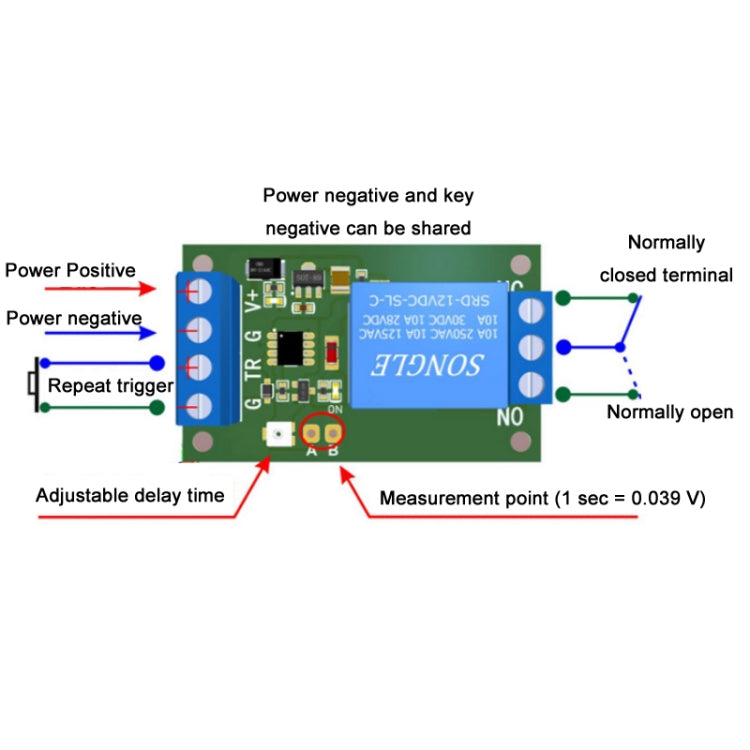

8. To adjust the delay time: the module is connected to the power supply, using a multimeter voltage class to measure the voltage value of the two points AB, every 0.039V for 1 second. For example, to adjust to 15 seconds, it is 0.039Vx15 = 0.58V, after adjusting the charging power off and then power on test, if the time value meets the requirements, the normal use of the module can be (default factory value of 1 minute)
9. Repeated triggering without power: If the application requires repeated triggering without power, a self-resetting button can be attached to the TR and G terminals of the board, and the module will repeat the delayed action once after each press of the button and release.

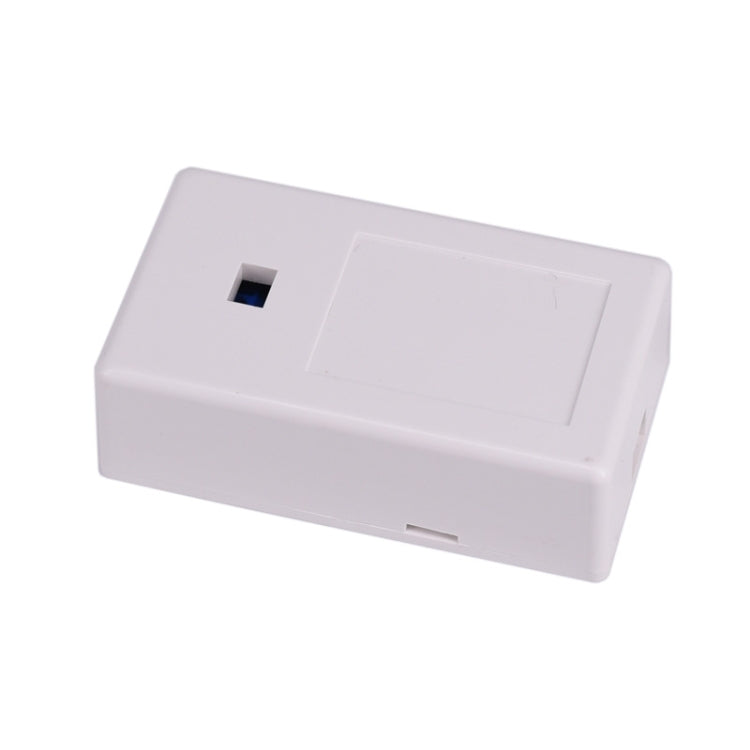

10. Dimensions: 52.8x32x18mm
