Features:

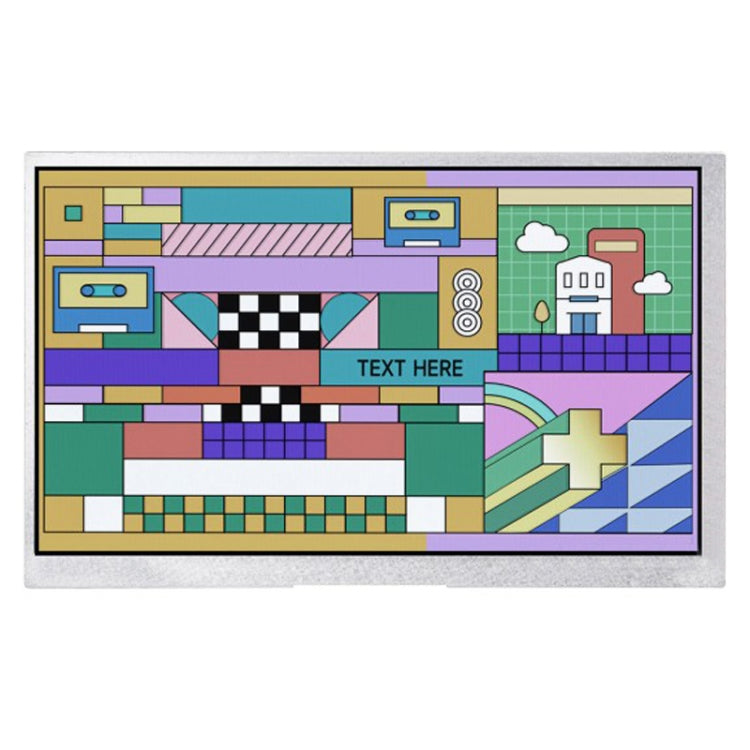

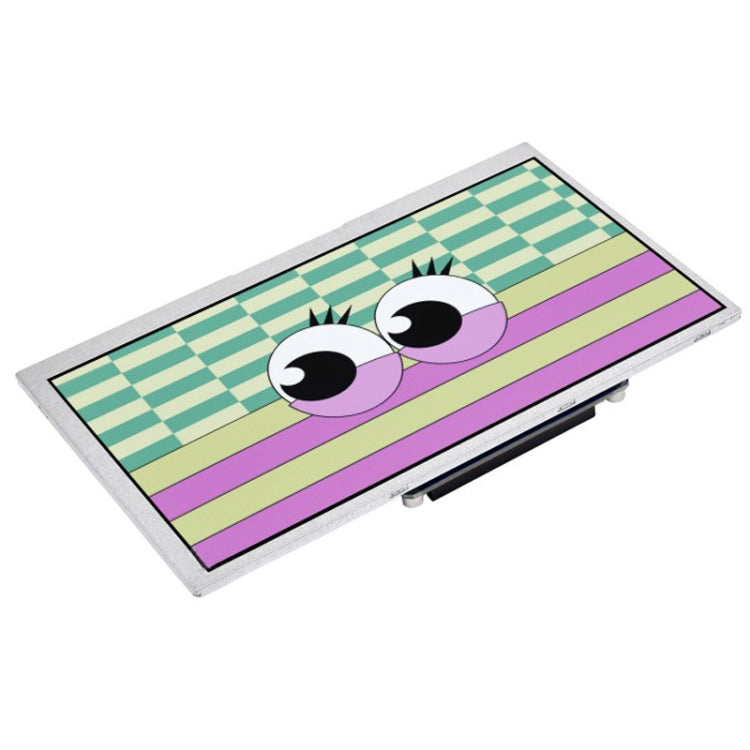

1. Using IPS panel, 1024×600 resolution, 170-degree viewing angle
2. Using DVI interface, higher communication speed

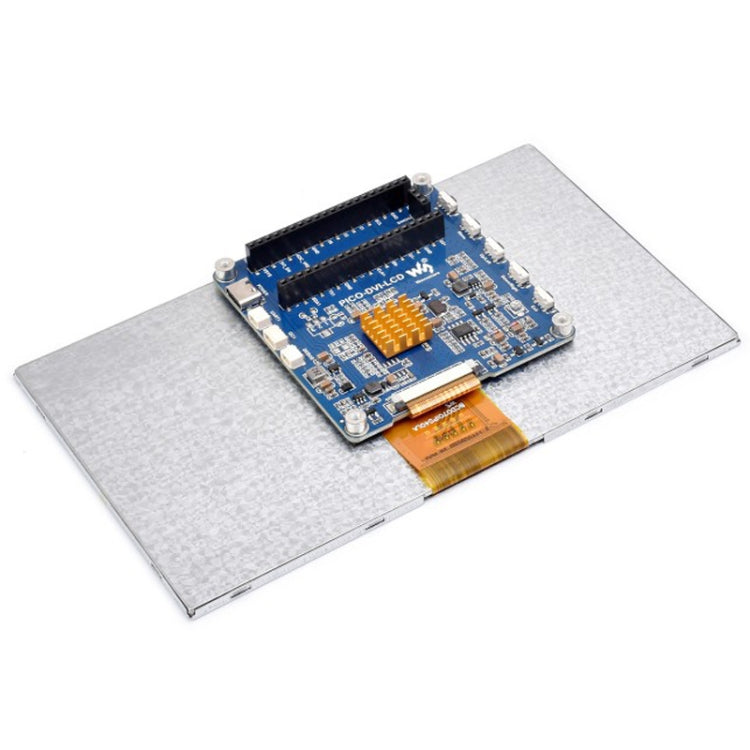

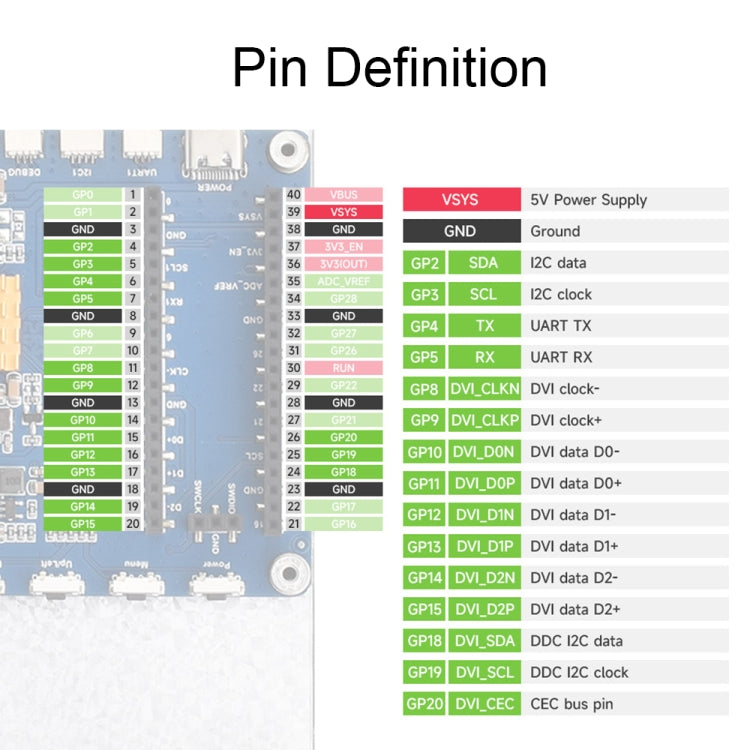

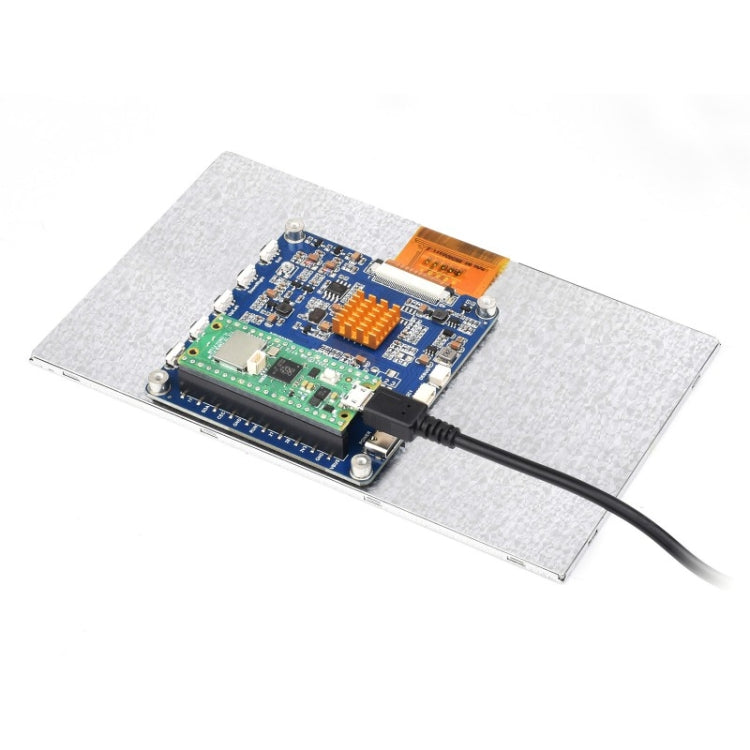

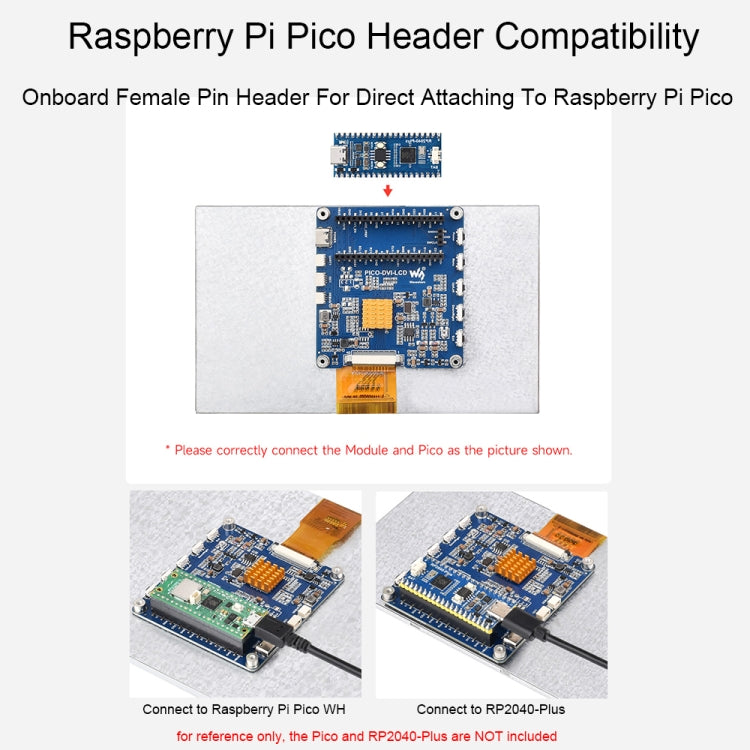

3. Based on Raspberry Pi Pico with onboard 40PIN connector

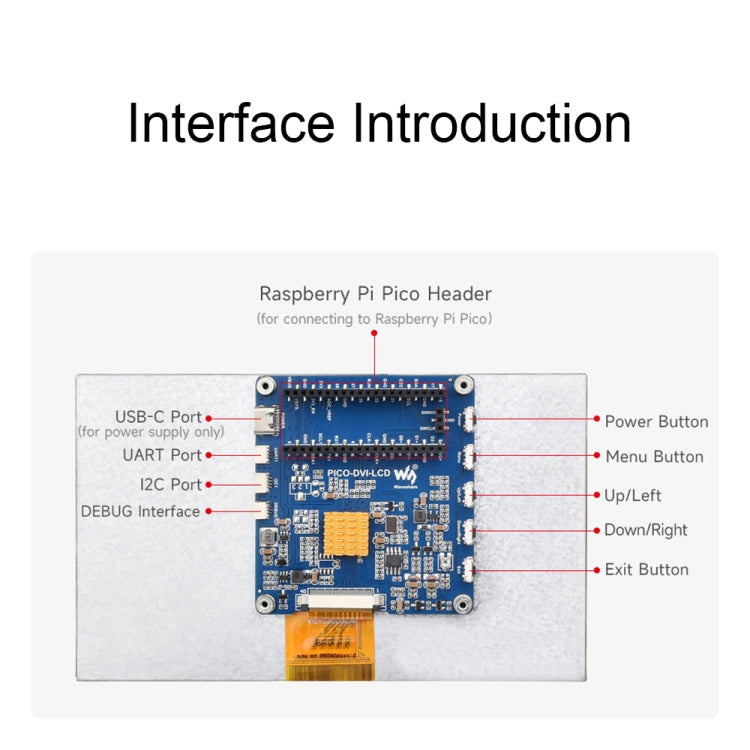

4. Built-in OSD menu for brightness/contrast adjustment

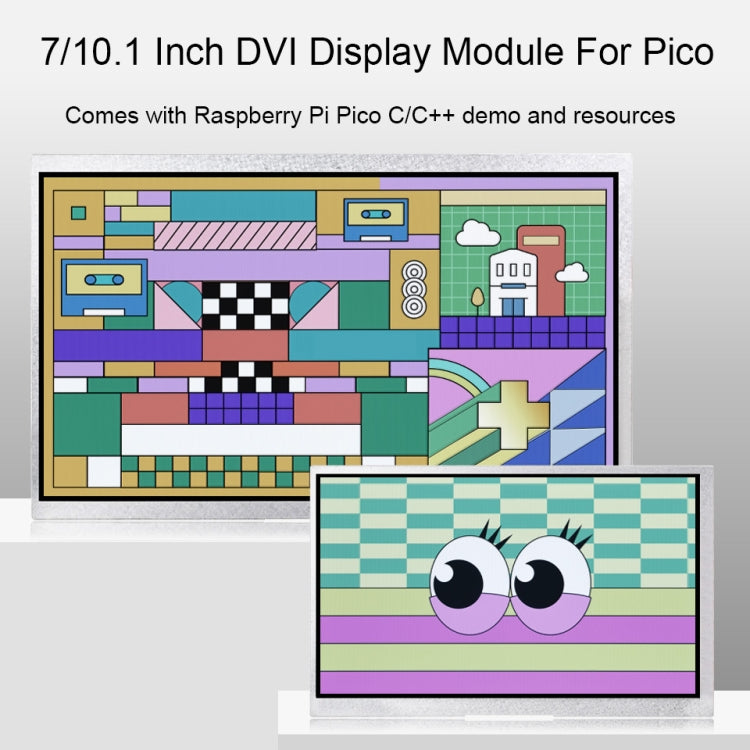

5. Available in 7-inch and 10.1-inch display sizes

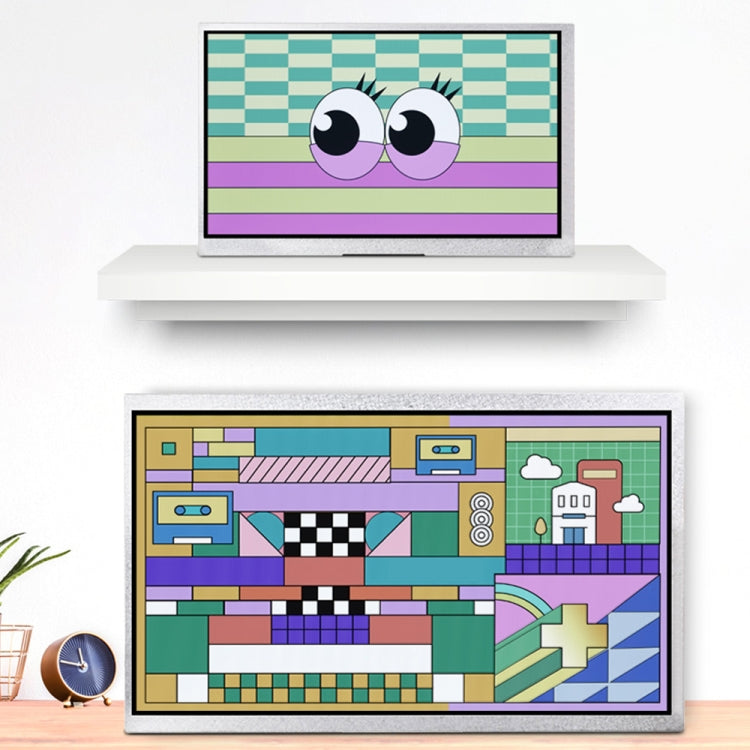

6. Suitable for application scenarios such as advertising image display
7. Comes with online development resources and manuals (Raspberry Pi Pico C/C++ example)
Product parameters:
1. Working voltage: 5V
2. Resolution: 1024×600 pixels
3. Communication interface: DVI
4. Display panel: IPS
5. Display size:
7 inches: 154.21×85.92mm
10.1 inches: 222.72×125.28mm
6. Pixel size:
7 inches: 0.1506×0.1432mm
10.1 inches: 0.2175×0.2088mm
7. Size: 7 inches: 164.7 x 100mm, 10.1 inches: 232.72 x 136.28mm
8. Weight: 7 inches: 139 grams, 10.1 inches: 271 grams
